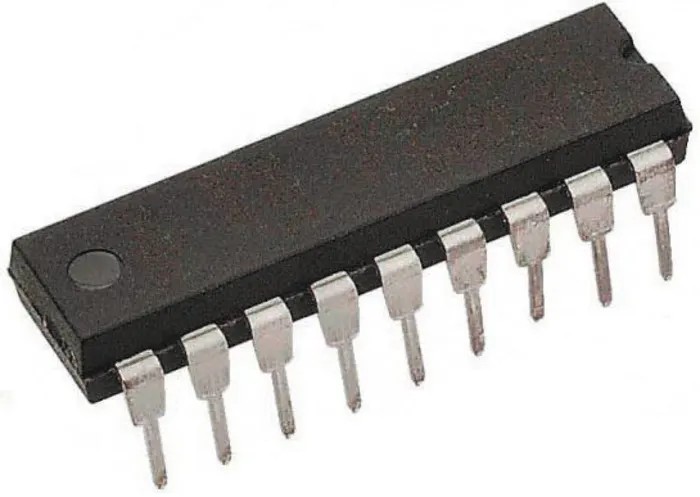

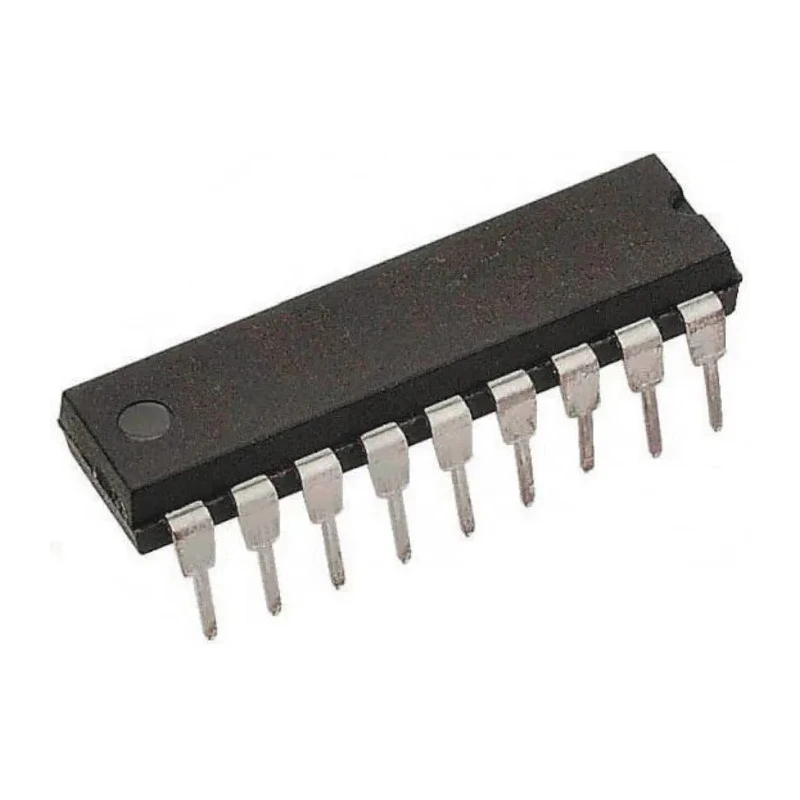

Microchip 8-Bit PIC16C Microcontroller 0.75kB EPROM 4 MHz 18-Pin PDIP PIC16C54C-04I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16C54C-04I/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 25bit |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 0.75kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 12 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | EPROM |
| Microchip, 8bit PIC, PIC16F Microcontroller, 20MHz, 512 Flash, 18-Pin PDIPBrand | Microchip |
Key Features
- Operating voltage range from 3V to 5.5V.
- 25-bit RAM size for internal data storage.
- 12 programmable I/O pins for interfacing.
- Single 8-bit timer included for timing applications.
- Maximum power dissipation of 800mW ensuring efficient operation.
- Operating temperature range from -40°C up to 85°C for industrial use.
- Built on RISC architecture supporting 33 instructions.
- Compliant with RoHS standards for environmental safety.
Product Description
Microchip PIC16C54C-04I/P is an 8-bit PIC16C series microcontroller designed for diverse embedded applications requiring moderate memory and processing speed. Operating at a maximum clock frequency of 4 MHz, this device incorporates 0.75 kB of EPROM program memory and 25-bit RAM to support data processing needs.
It features 18 pins in a PDIP through-hole package, 12 programmable input/output pins, and a single 8-bit timer, making it suitable for varied control and timing tasks.
The microcontroller supports an operating voltage range from 3V to 5.5V and functions reliably in temperature ranges from -40°C to 85°C, accommodating industrial conditions and ensuring robust performance.
This device uses a RISC instruction set architecture with 33 instructions and an internal 2-level hardware stack, allowing efficient instruction execution and program flow management.
The power dissipation limit is 800mW, contributing to thermal management considerations during system design.
This microcontroller family has been widely used in legacy electronic designs and remains relevant for maintenance or long-life product support where Flash variants are not suitable.
Operating voltage range from 3V to 5.5V. 25-bit RAM size for internal data storage. 12 programmable I/O pins for interfacing. Single 8-bit timer included for timing applications. Maximum power dissipation of 800mW ensuring efficient operation.
Operating temperature range from -40°C up to 85°C for industrial use. Built on RISC architecture supporting 33 instructions. Compliant with RoHS standards for environmental safety. Ideal for legacy embedded system designs requiring reliable 8-bit MCU performance.
Microchip microcontrollers are used extensively across industrial automation, consumer electronics, HVAC systems, automotive control, and instrumentation applications due to their reliable operation and flexible interfacing capabilities.
Explore our broad Microchip category for additional Microcontrollers and components to enhance your embedded projects and industrial system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16C54C-04I/P microcontroller is 4 MHz.
This microcontroller operates within a voltage range of 3V to 5.5V.
It features 0.75 kB of EPROM program memory for data storage.
The PIC16C54C-04I/P has a 25-bit RAM size for internal data storage.
This model includes 12 programmable I/O pins for interfacing with other components.
The maximum power dissipation is 800mW, which helps in managing thermal performance.
It operates reliably within a temperature range of -40°C to 85°C, suitable for industrial applications.
The PIC16C54C-04I/P is available in an 18-pin PDIP (Plastic Dual In-line Package).
This microcontroller includes a single 8-bit timer for timing applications.
It is built on a RISC architecture that supports 33 instructions for efficient processing.
Yes, it is compliant with RoHS standards for environmental safety.
The height of this microcontroller is 3.68 mm.
