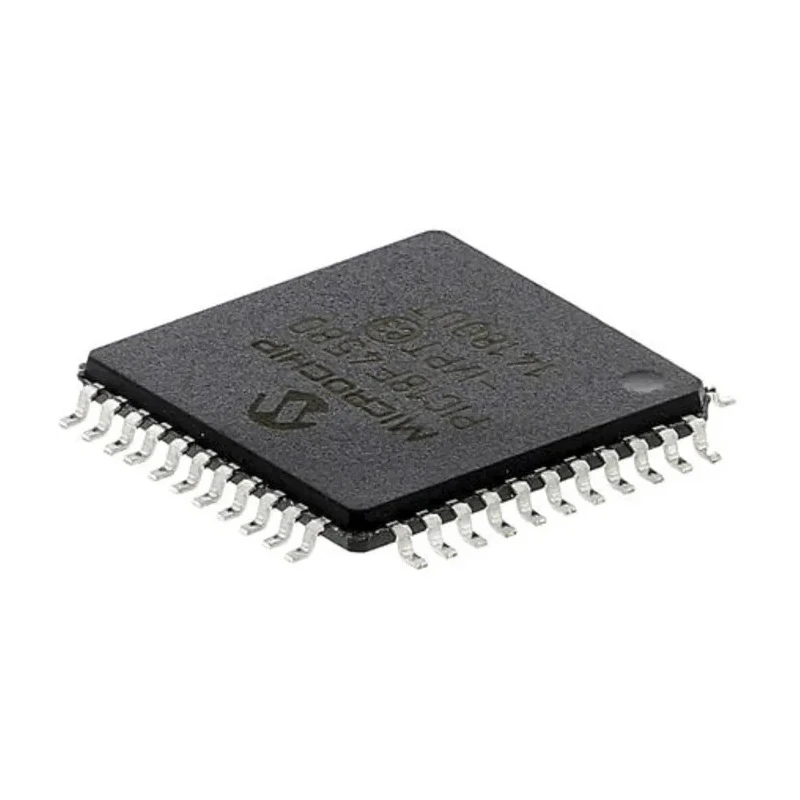

Microchip 8 bit PIC Microcontroller 40 MHz, 32 kB FLASH, 256 B EEPROM, 44-Pin TQFP PIC18F4580-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F4580-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 32kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Equipped with 1.54 kB RAM for efficient data handling.
- Features 36 programmable I/Os suitable for complex interfacing.
- Operates within voltage range of 2 V to 5.5 V.
- Includes 11 ADCs with 10-bit resolution for precise analog input conversion.
- Has 4 timers and 2 analogue comparators for timing and comparison functions.
- Supports RISC instruction set architecture for fast processing.
- Compact 10 mm x 10 mm x 1.05 mm dimensions enable space-saving PCB design.
- Designed to operate reliably from -40°C to 85°C operating temperature range.
Product Description
Microchip PIC18F4580-I/PT is an advanced 8 bit PIC microcontroller designed for high-performance embedded control applications. Operating at a maximum clock frequency of 40 MHz, it incorporates 32 kB FLASH program memory and 256 bytes of EEPROM, along with 1.54 kB RAM enabling efficient program execution and data storage.
This device features a 44-pin TQFP surface mount package with a compact footprint of 10 mm by 10 mm, and a height of just 1.05 mm. It supports 36 programmable input/output pins facilitating versatile connectivity options for peripheral devices and sensors in industrial, automotive, and consumer electronics applications.
The microcontroller operates within a supply voltage range from 2 V up to 5.5 V, with a power dissipation of 1 watt, balancing performance and energy efficiency. It includes robust peripheral features such as 11 10-bit Analog-to-Digital Converters (ADCs) to convert analog signals with precision, 4 timers facilitating event timing and pulse generation, and 2 analogue comparators for analog signal comparison tasks.
Designed with a Reduced Instruction Set Computing (RISC) architecture, the PIC18F4580-I/PT delivers efficient and fast execution of instructions, suitable for complex real-time embedded systems. Its operating temperature range from -40°C to 85°C makes it suitable for applications requiring wide environmental tolerance including automotive and industrial controls.
Compact 44-pin TQFP surface mount package with 10x10x1.05 mm size. High-speed 40 MHz clock frequency for rapid processing. Large onboard memory with 32 kB FLASH and 256 B EEPROM. Extensive peripherals including 36 I/Os and 11 ADC channels.
Wide operating voltage from 2 V to 5.5 V. Low power consumption at 1 W maximum dissipation. Wide temperature operation from -40°C to 85°C for harsh environments. RoHS compliant ensuring environmental safety standards.
This microcontroller is an ideal choice for designing sophisticated embedded control systems used in industrial automation, consumer electronics, automotive systems, and communication devices. It combines high speed, extensive peripherals, and robust environmental specifications to provide flexible application solutions.
Explore the full range of Microchip Microcontrollers and related components on EnvMart to support your advanced electronics design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features 32 kB of FLASH program memory and 256 bytes of EEPROM.
This microcontroller operates within a supply voltage range of 2 V to 5.5 V.
It includes 36 programmable input/output pins, allowing for versatile connectivity options.
The PIC18F4580-I/PT comes in a compact 44-pin TQFP package with dimensions of 10 mm x 10 mm x 1.05 mm.
It includes 11 10-bit Analog-to-Digital Converters (ADCs), 4 timers, and 2 analogue comparators.
This model operates reliably within a temperature range of -40°C to 85°C.
It is equipped with 1.54 kB of RAM for efficient data handling.
The PIC18F4580-I/PT utilizes a Reduced Instruction Set Computing (RISC) architecture for fast processing.
Yes, this microcontroller is RoHS compliant, ensuring it meets environmental safety standards.
This microcontroller features 4 timers for timing and pulse generation functions.
The maximum power dissipation for the PIC18F4580-I/PT is 1 watt.
