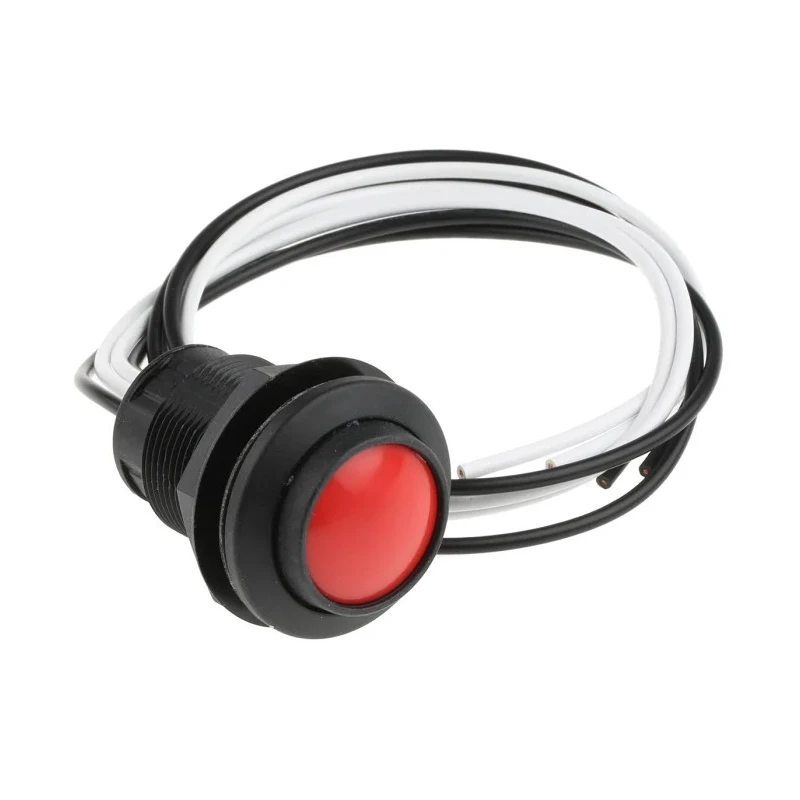

ITW Switches 49-769024 49-76 Series Push Button Switch Momentary Panel Mount SPST Clear LED IP67 250 V 6A
Specifications
| Country of Origin | India |
|---|---|
| Brand | ITW Switches |
| Dimensions | Depth behind panel: 46mm, max. panel thickness 22mm, panel cut-out 30.5mm |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 49-76 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30.5 mm |
| Terminal type | Wire |
| Standards/Approvals | UL, CSA |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 250V |
| Actuator Style | Button |
| Switch Contact Current | 6A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch is momentary with on-off configuration for precise control.
- It features a red actuator button with clear LED illumination.
- Designed for panel mounting with a 30.5 mm cutout size.
- IP67 rated for full protection against dust and water ingress.
- Operates reliably within a temperature range of -40°C to 80°C.
- Contacts rated for 6A at 250V AC and 250V DC voltage.

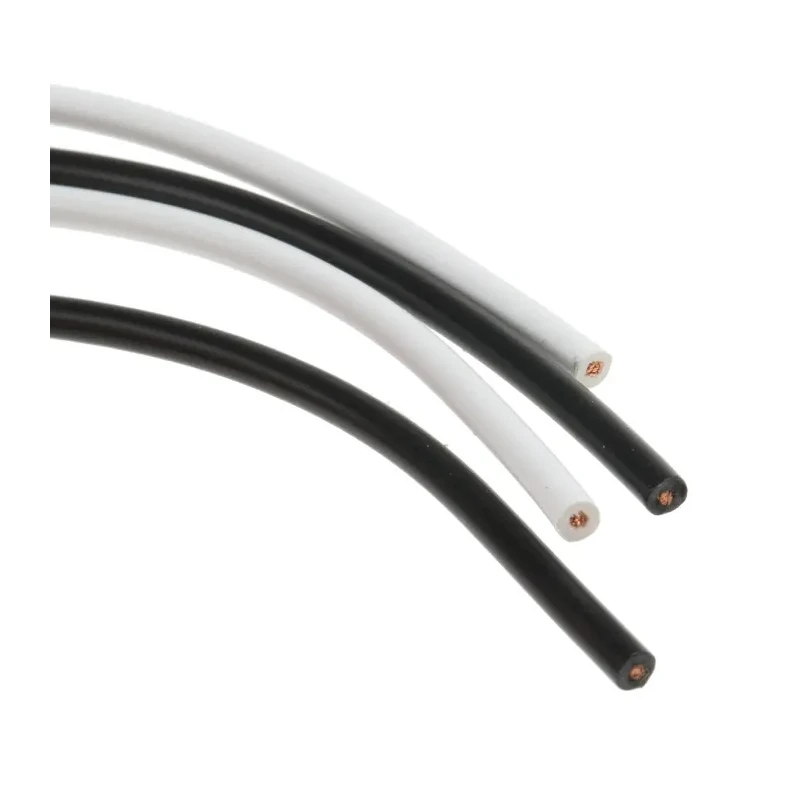

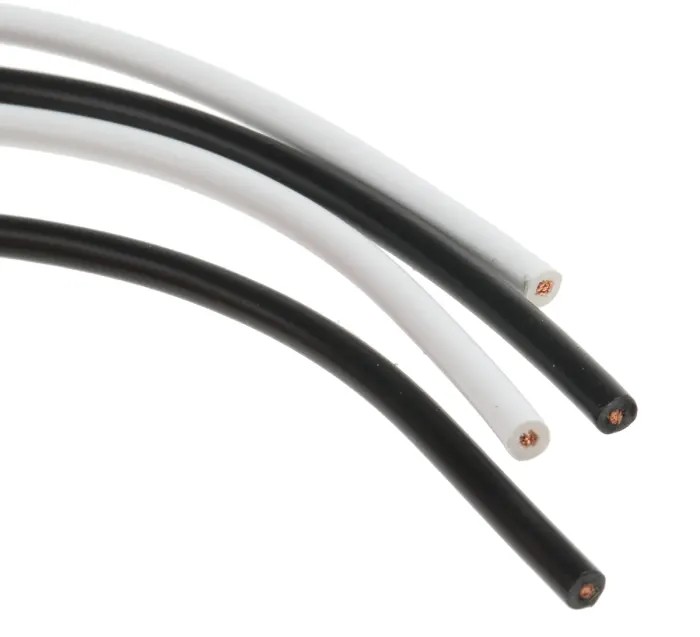

- Supplied with 0.5m flying leads for easy wiring.
- Depth behind the panel is 46 mm; suitable for panels up to 22 mm thick.
Product Description
ITW Switches 49-769024 49-76 Series Push Button Switch is a high-performance momentary panel-mounted switch designed to meet industrial and commercial electrical applications requiring robust, reliable operation. This series features a red actuator button with clear LED indication, providing both visibility and status feedback in control systems.
Engineered for durability, the switch carries an IP67 rating ensuring complete protection against dust ingress and water immersion, making it suitable for harsh environments in manufacturing plants, automation control panels, and electrical distribution systems. The panel cutout dimension is precisely 30.5 mm, compatible with standard installation requirements, and the switch supports a maximum panel thickness of 22 mm.
The switch offers a single pole single throw (SPST) contact configuration supporting both AC and DC voltages up to 250 V, with a contact current rated at 6 amperes. It operates reliably across a broad temperature range from -40°C to 80°C, suitable for varied operating conditions.
The switch is fully back sealed for internal protection and includes 0.5 meters of flying leads facilitating straightforward and secure electrical connections. The switch is momentary with on-off operation providing momentary control.
Red actuator button with clear LED enhances interface clarity. Panel mount with 30.5 mm cutout size fits standard panels. IP67 rating ensures ingress protection from dust and moisture. Electrical ratings: 6 A contact current, 250 V AC/DC operating voltage.
Temperature rated from -40°C to 80°C for varied environments. Equipped with 0.5 m flying leads simplifying installation. Depth behind panel is 46 mm with maximum panel thickness up to 22 mm.
This push button switch is ideal for applications in electrical control systems, automation panels, HVAC controls, and other industrial equipment requiring robust, sealed momentary switches. Its compliance with UL and CSA standards guarantees adherence to international quality and safety norms.
Choose the ITW Switches 49-769024 push button switch for reliable, sealed switching solutions in demanding environments. Explore the full range of push button switches and components available in the Electronics & Electricals category at EnvMart.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole single throw (SPST) contact configuration, allowing for on-off operation.
It operates reliably within a maximum temperature range of 80°C.
This model has an IP67 rating, providing complete protection against dust and water ingress.
The depth behind the panel is 46 mm, with a maximum panel thickness of 22 mm and a panel cutout size of 30.5 mm.
The switch is rated for a contact current of 6A.
It can handle both AC and DC voltages up to 250V.
It features a red actuator button designed for momentary operation.
The switch is supplied with wire terminals, facilitating easy wiring connections.
It complies with UL and CSA standards, ensuring adherence to international quality and safety norms.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
It is designed for panel mounting, with a cutout size of 30.5 mm to fit standard installation requirements.
This switch is ideal for applications in electrical control systems, automation panels, and HVAC controls.
