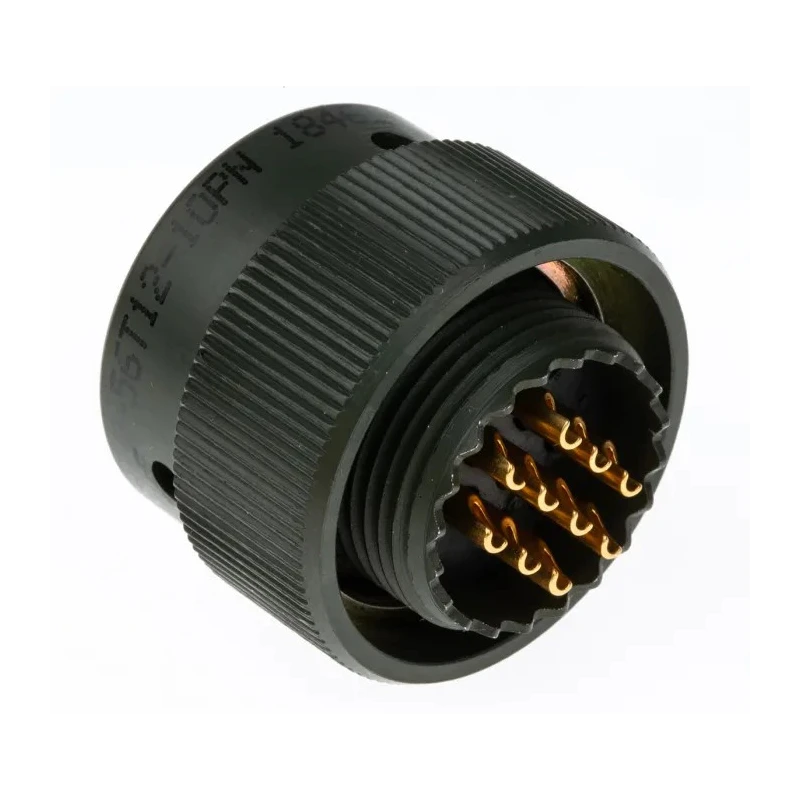

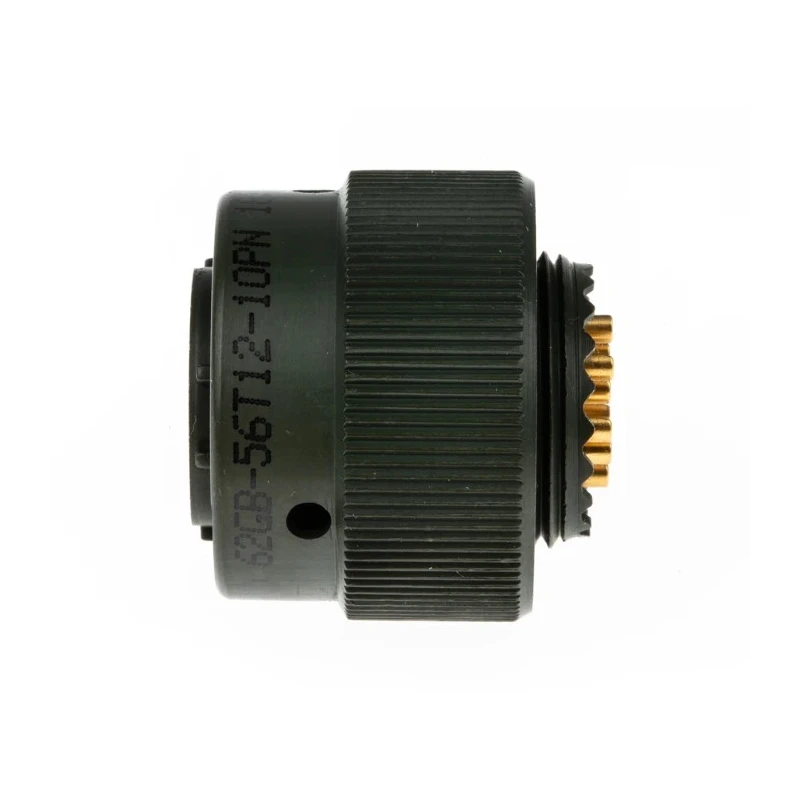

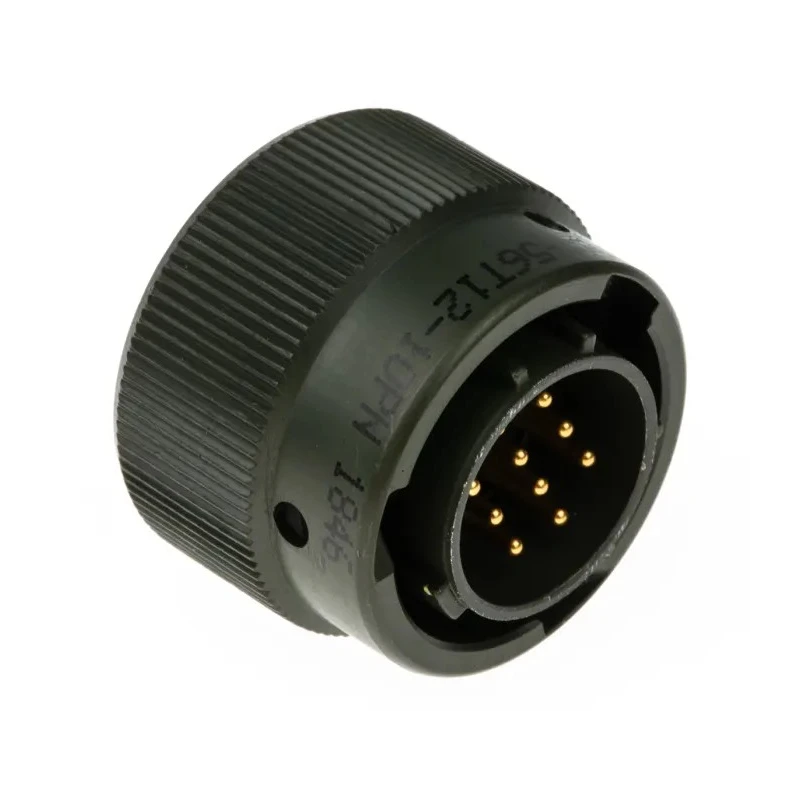

Amphenol Limited MIL Spec Circular Connector 10 Contacts Male Copper Tin Gold Plated Solder Termination 62GB-56T12-10PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-56T12-10PN |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Tin |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 5 mΩ max |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 12 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |

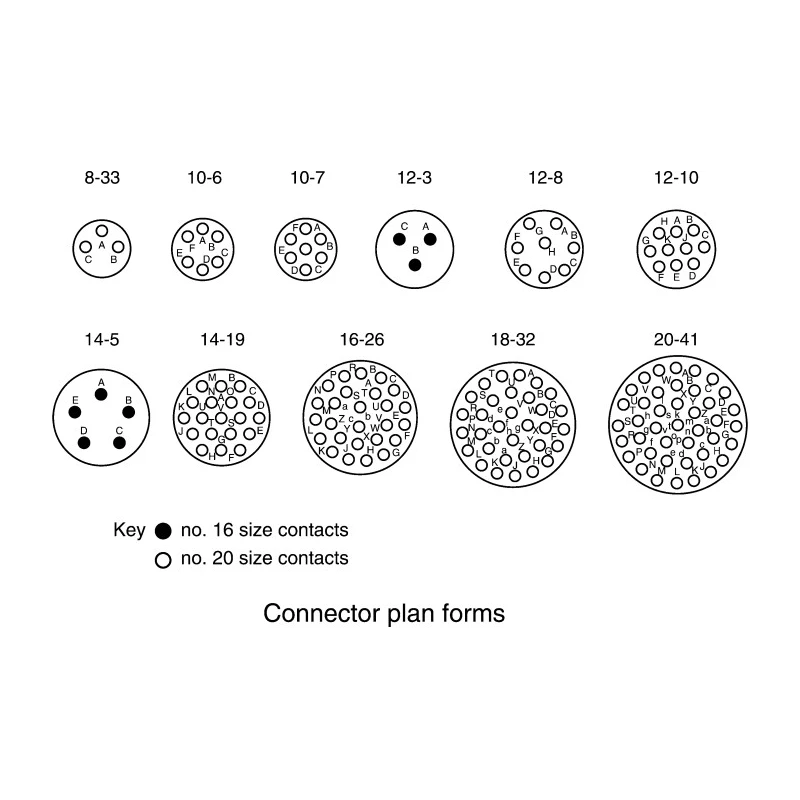

| Insert Arrangement | 12-10 |
Key Features
- Compliant with MIL-DTL-26482 military standard for durability and reliability.
- Features a bayonet locking system to ensure secure and easy mating.
- Constructed with aluminium housing and zinc cobalt olive drab finish for corrosion resistance.
- Supports operation from -55°C to 125°C in harsh environments.
- Solder bucket gold plated pin contacts provide excellent conductivity and contact resistance under 5 mΩ.
- Miniature size 12 plug designed for cable mounting with strain relief included.
- Compatible only with chassis mounted sockets to prevent mis-mating.
- Offers environmental sealing for high protection against contaminants.
Product Description
Amphenol Limited 62GB-56T12-10PN MIL Spec Circular Connector is a miniature size 12 male cable connector designed to meet the stringent MIL-DTL-26482 military standard. Constructed from solid aluminium with a zinc cobalt olive drab plating, it provides excellent corrosion resistance for extended service life in demanding environments. The connector features a bayonet locking system for positive and secure mating and is environmentally sealed to offer protection against dust and moisture.
This cable-mounted plug includes 10 male contacts made from copper tin with gold plating for superior conductivity and low contact resistance of 5 mΩ maximum. The solder termination type ensures reliable electrical connections. Operating temperature ranges from -55°C to 125°C, making the connector suitable for harsh temperature conditions commonly encountered in military and industrial applications.
The 62GB series includes a keyed design to prevent mis-mating and is supplied with strain relief for cable support. This connector is intended for secure and durable interconnection between cables and chassis mounted sockets, ideal for applications requiring a rugged, reliable electrical connection.
Complies with MIL-DTL-26482 military specification for reliability and performance. Durable aluminium housing with zinc cobalt olive drab finish against corrosion. Bayonet locking system ensures quick and secure connector mating.
Gold plated copper tin contacts reduce electrical resistance and enhance signal integrity. Wide operating temperature suitable for extreme environmental conditions. Miniature size and cable mounted with strain relief for cable protection.
Separate keyway design to avoid connector mis-mating. Environmental sealing protects against dust and water ingress. Ideal for military, industrial electronics, aerospace, and rugged field applications. Discover more Amphenol Limited Mil Spec Circular Connectors and related power connectors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
It features 10 male contacts, which are made from copper tin and gold plated for enhanced conductivity.
The connector utilizes a solder termination type, ensuring reliable electrical connections.
The housing is made of aluminium with a zinc cobalt olive drab finish, while the contacts are made of copper tin with gold plating.
The maximum contact resistance is specified to be 5 mΩ, which contributes to its excellent conductivity.
Yes, it is environmentally sealed to protect against dust and moisture, enhancing its durability in challenging conditions.
It features a bayonet mating type, which ensures secure and quick mating during connections.
This connector complies with the MIL-DTL-26482 military standard, ensuring reliability and performance in military applications.
The shell size of this connector is classified as size 12, which is designed for miniature applications.
It supports voltage ratings of 500 and 700V AC, suitable for various applications.
This model is designed for cable mounting, and it includes strain relief for added support.
It is ideal for military, industrial electronics, aerospace, and rugged field applications that require a durable electrical connection.
