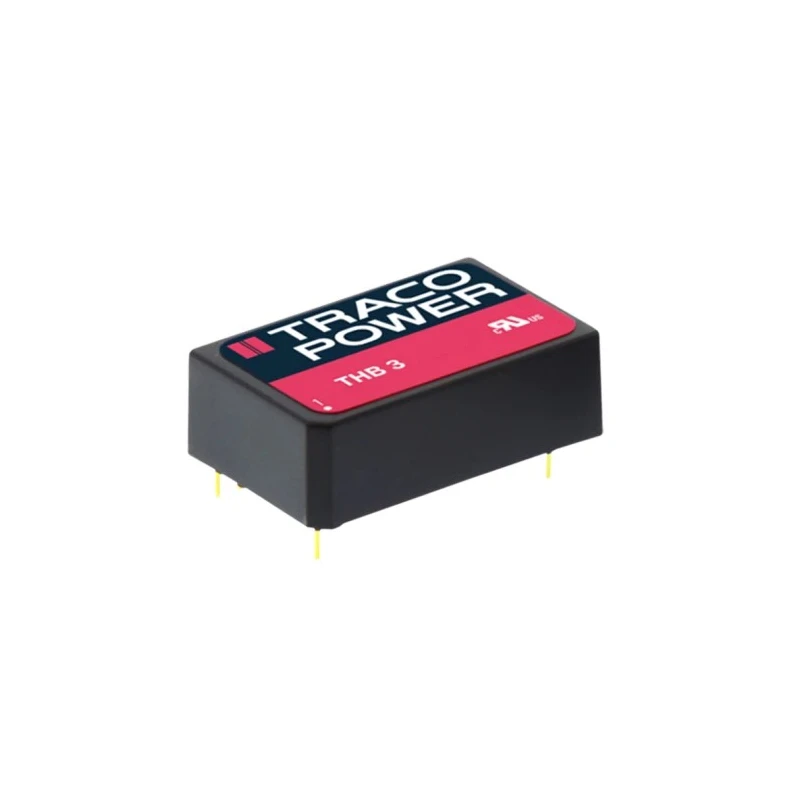

TRACOPOWER Regulated Isolated DC-DC Converter, 5V DC Output, 600 mA, 75V DC Max Input, 36V Min Input, 3W Power THB 3-4811

TRACOPOWER THB 3-4811 is a high-quality regulated isolated DC-DC Converter designed for reliable power supply applications. It delivers 5V DC output at a current of 600 mA with a wide input voltage range from 36V to 75V DC, featuring a 2:1 input ratio to handle varying input sources efficiently.

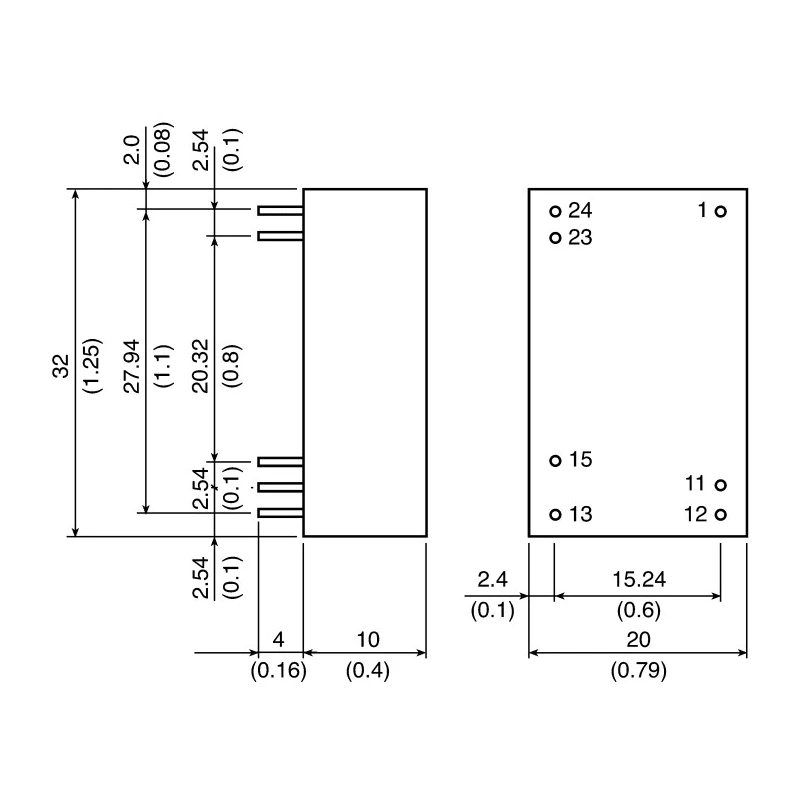

This converter is mounted through-hole using a DIP-24 package, offering a compact form factor with dimensions of 31.8mm length and 10.5mm depth, facilitating easy integration on printed circuit boards. The device supports industrial-level operation with a temperature range from -40°C minimum to 85°C maximum, making it suitable for harsh environments.

It provides robust isolation of 4kV AC between input and output, ensuring safety and noise reduction in sensitive electronics. With an efficiency of 78%, it maximizes power use with minimal heat dissipation. Protection features such as under-voltage shut-down, over-voltage, and continuous short circuit protection add to the device's durability and user safety.

The converter meets industrial and medical safety standards and includes supplementary and reinforced insulation for use with working voltages up to 300Vac. Its built-in EMI filter complies with EN 55022 Class A and FCC Level A without requiring external components.

Applications include industrial controls, medical devices, instrumentation, and other sectors requiring isolated DC power conversion. Its 24-pin DIP configuration follows industry standard pin-out, optimizing compatibility.

Compact through-hole DIP-24 mounting for easy PCB integration. Wide input voltage range with 2:1 ratio covering 36V to 75V DC. Regulated isolated 5V DC output at 600 mA, 3W max power. 4kV AC isolation ensures electrical safety and noise reduction.

Operating temperature range from -40°C to 85°C suits industrial use. Built-in EMI filter meets strict emission standards without extras. Protection against under-voltage, over-voltage, and short circuit. High MTBF of 1,000,000 hours confirms long-term reliability.

Packaged with high-quality UL94V-0 flame retardant materials, the THB 3-4811 series supports demanding environments and compliance requirements. Purchase this converter for assured performance in voltage conversion tasks requiring compact, safe, and reliable isolated DC-DC power supply solutions.
