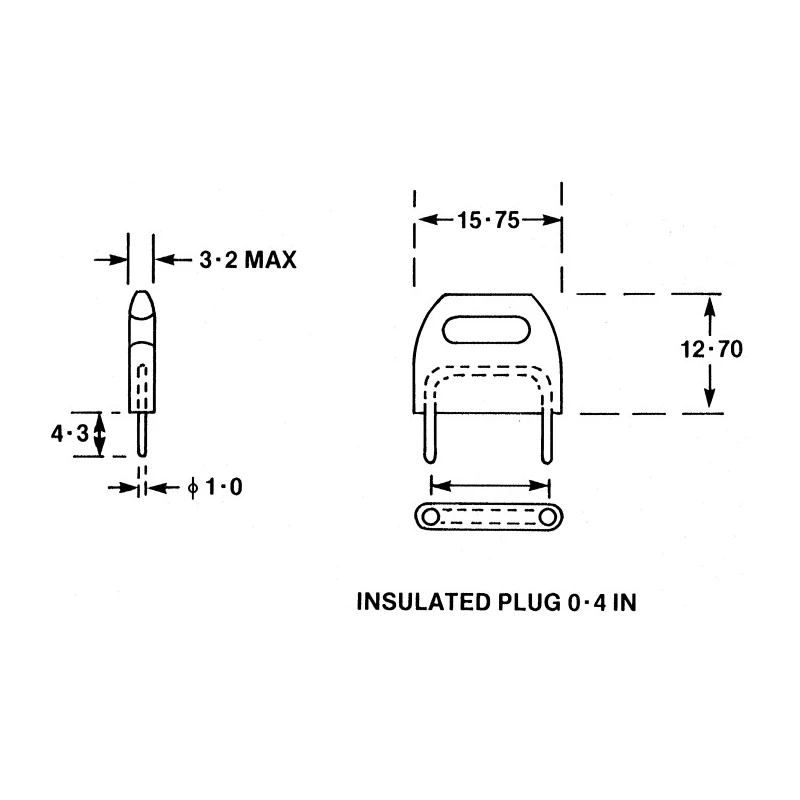

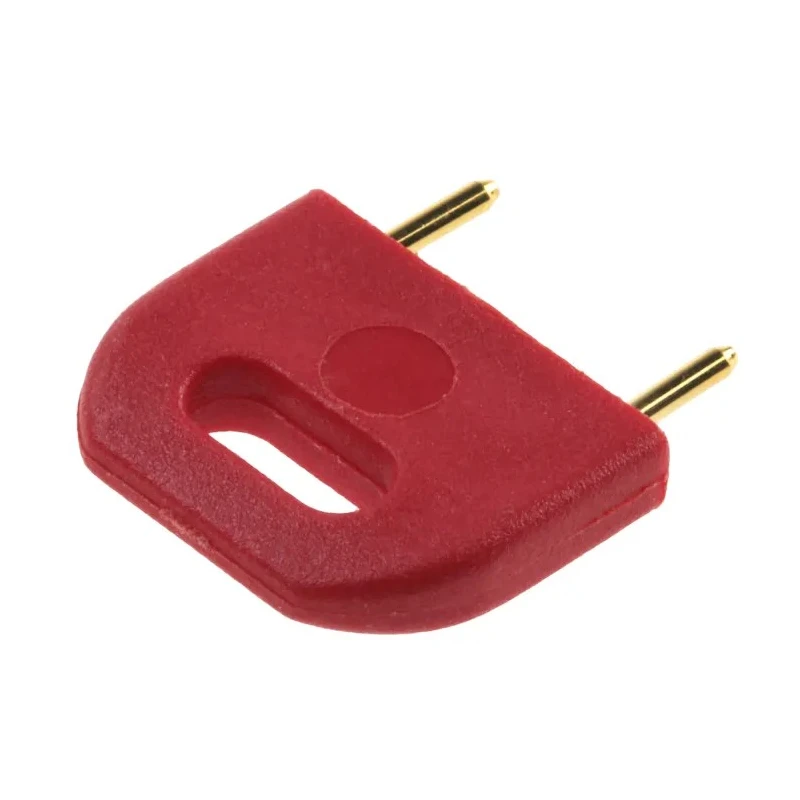

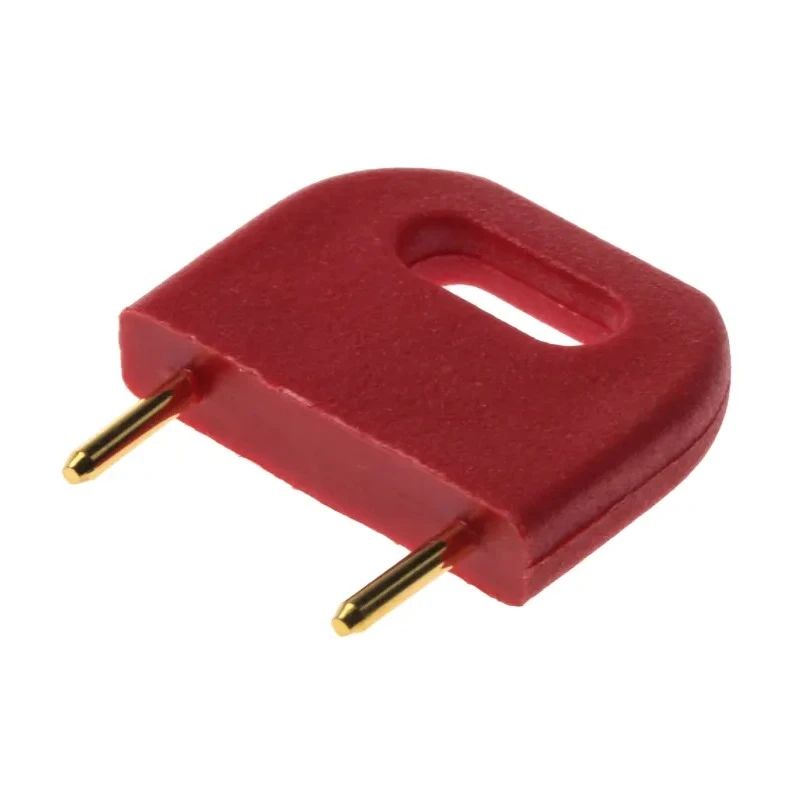

HARWIN Shorting Link Straight Male Red Closed Top 2 Way 1 Row 10.16 mm Pitch D3088-99
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Colour | Red |
| Orientation | Straight |
| Current | 10A |
| Length | 15.1mm |
| Model | D3088-99 |
| Depth | 3.2mm |
| Width | 12mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | D308 |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- Features a 10.16 mm pitch and single row configuration for compact PCB hardware setups.
- Made from polybutylene terephthalate housing providing UL94V-0 insulation and red color coding.
- Supports 10A current rated for durable performance in electrical circuits.
- Gold plating on brass contacts ensures superior corrosion resistance and conductivity.
- Designed for straight orientation with 15.1 mm length and 12 mm width fitting standard connector requirements.
- Ideal for hardware programming uses, with insulated versions that prevent direct PCB soldering.

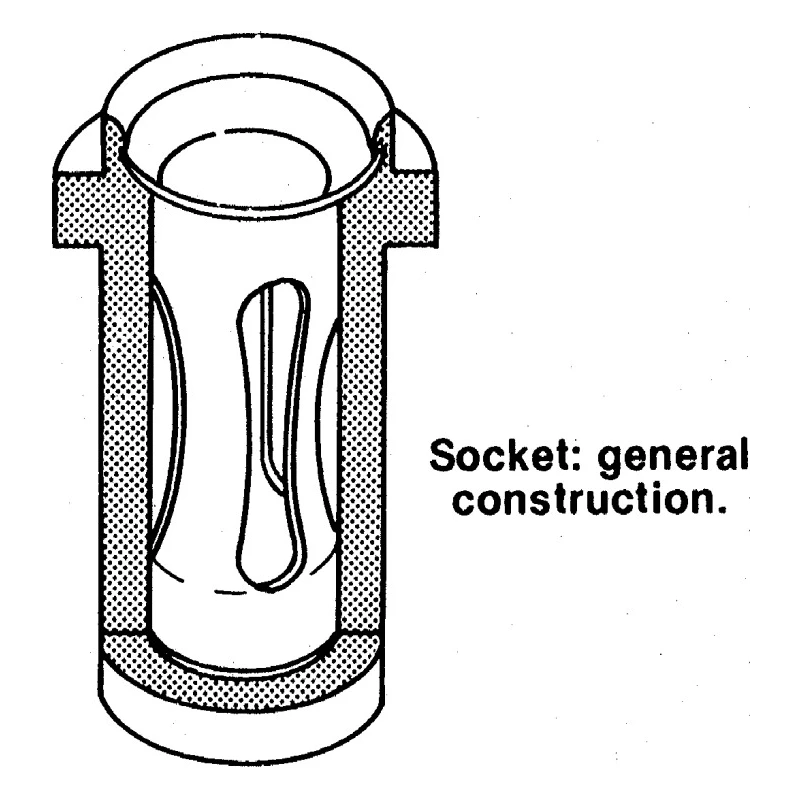

- Compatible with PCB sockets for removable linking and circuit isolation tasks.
- Robust contact material and plating for long-term reliability and signal integrity.
Product Description
HARWIN D3088-99 Shorting Link Straight Male Red Closed Top is a precision-engineered electrical jumper component designed for PCB connectors. It features a 2-contact closed-top structure with a 10.16 mm pitch, ideal for bridging and shorting applications on electronic boards. The part comes with a durable polybutylene terephthalate housing rated to UL94V-0 fire safety standards, colored red for easy identification in complex wiring harnesses.
The contact pins are fabricated from brass with a high-performance gold plating that enhances corrosion resistance and ensures stable electrical conductivity under varied environmental conditions. This straight male connector is 15.1 mm in length, 12 mm wide, and 3.2 mm deep, tailored for tight spatial usage in electronic assemblies.
Specifically engineered for hardware programming scenarios, this shorting link can be inserted into PCB sockets without the need for direct soldering, facilitating quick and flexible circuit modifications and testing.

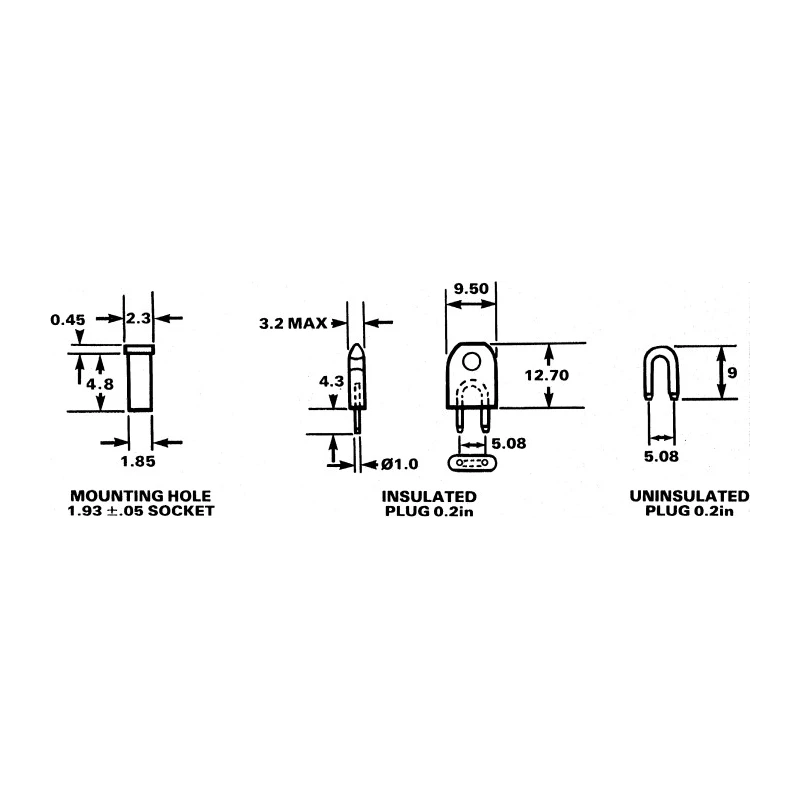

HARWIN’s D308 series shorting links come in various insulated and uninsulated forms; this insulated model prevents unwanted PCB soldering damage while delivering consistent contact quality.
10.16 mm pitch with 1 row and 2-way contact layout enhances compact connector arrangements. Housing material is polybutylene terephthalate, ensuring excellent insulation and mechanical strength. Current rating of 10A supports a broad range of low-voltage power applications.
Gold plated brass contacts ensure reliability and long service life. SUITABLE for PCB socket based linking in electronics manufacturing, testing, and repair. Red color coding aids in quick identification in complex connector blocks.
Robust design supports industrial, laboratory, and commercial electronic uses with high performance standards.
This product is ideal for industrial electronics applications including PCB connector assemblies, hardware programming, and electrical testing environments. Browse EnvMart for more HARWIN connectors and jumpers.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this shorting link is 10.16 mm, designed for compact PCB hardware setups.
It has a current rating of 10A, suitable for various low-voltage power applications.
The housing is made from polybutylene terephthalate, while the contact pins are brass with gold plating for enhanced conductivity and corrosion resistance.
This model measures 15.1 mm in length, 12 mm in width, and 3.2 mm in depth.
It is ideal for hardware programming, PCB connector assemblies, and electrical testing environments.
Yes, the HARWIN D3088-99 is an insulated model, which prevents direct PCB soldering damage.
The connector has a straight orientation, making it suitable for direct insertion into PCB sockets.
This shorting link features 2 contacts in a closed-top configuration.
It is colored red for easy identification in complex wiring harnesses.
The contacts are gold plated, which enhances their corrosion resistance and electrical conductivity.
This product is manufactured in India.
It can be inserted into PCB sockets without the need for direct soldering, allowing for quick and flexible circuit modifications and testing.
