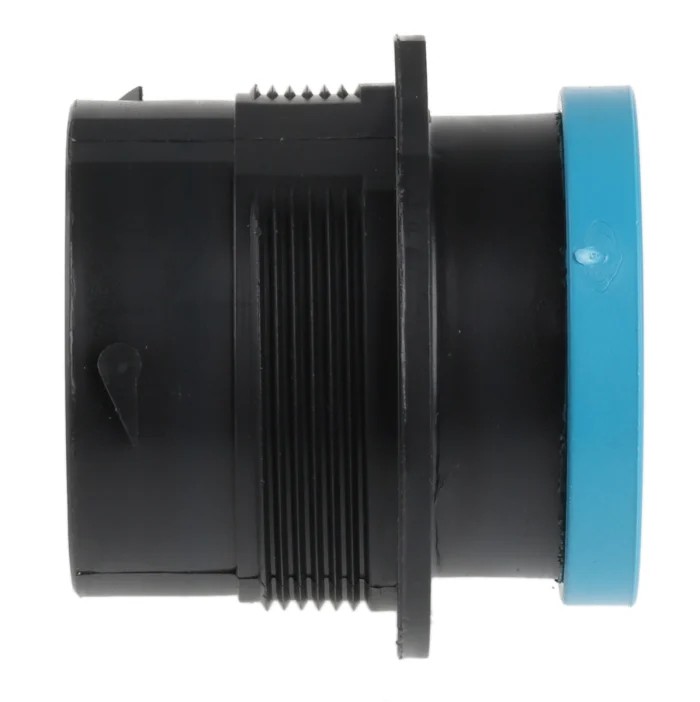

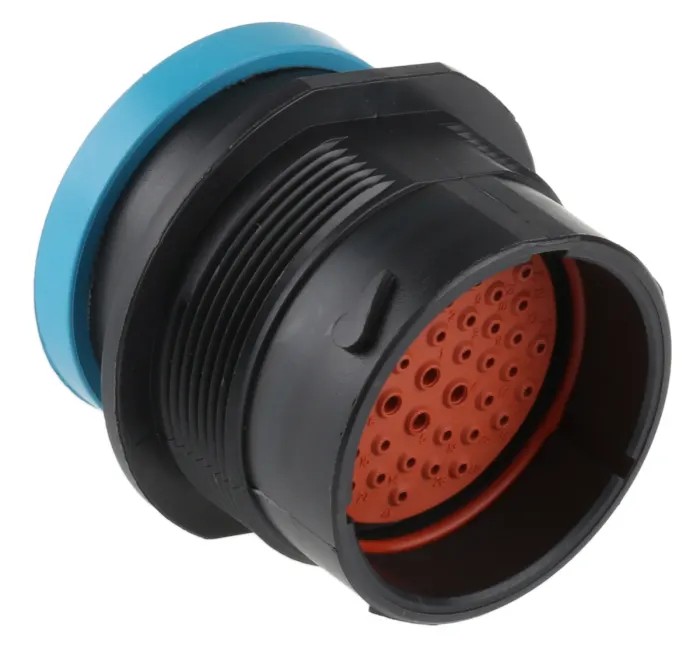

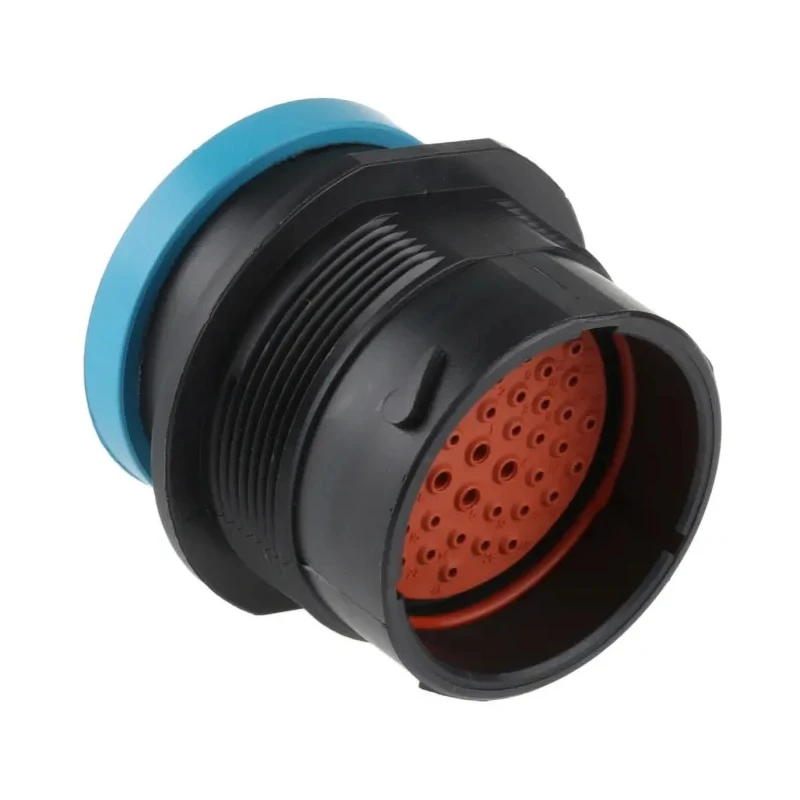

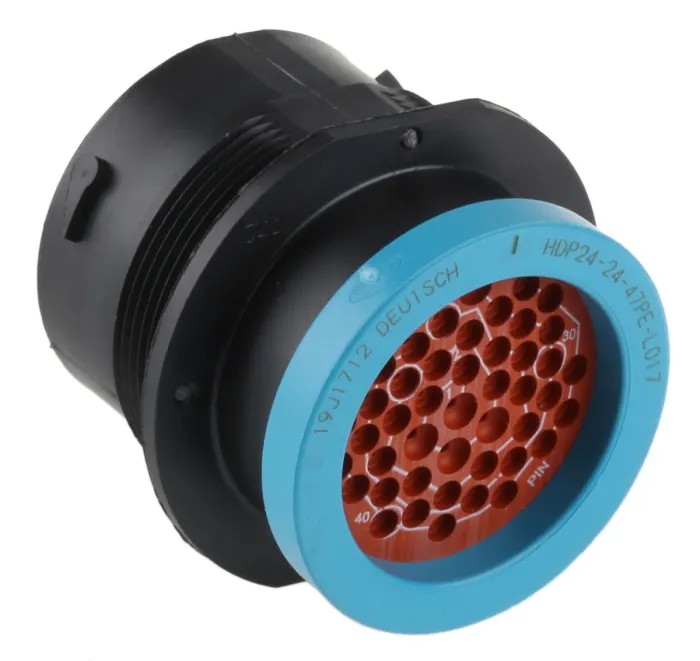

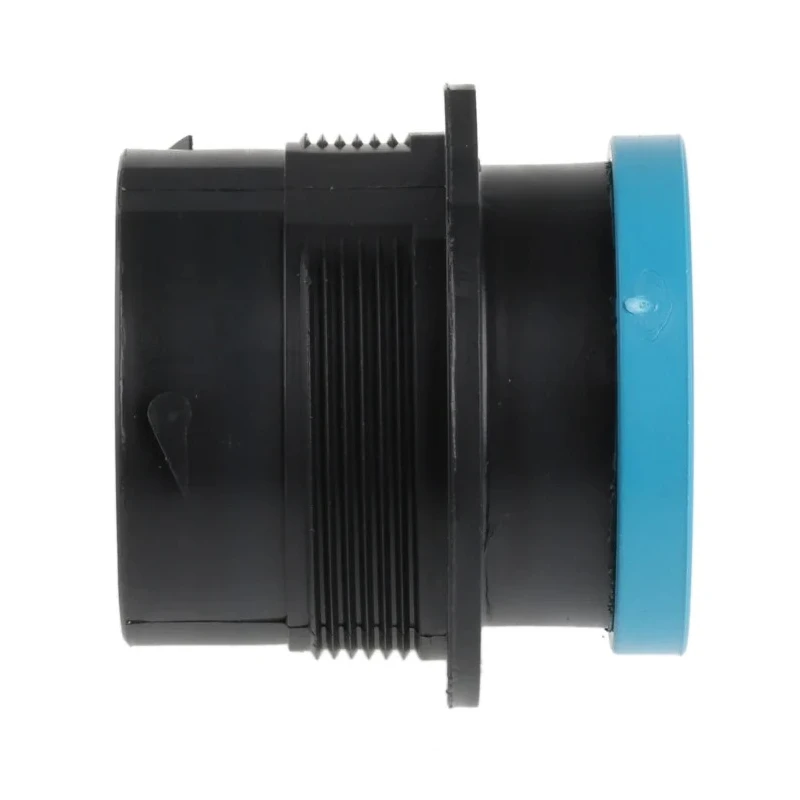

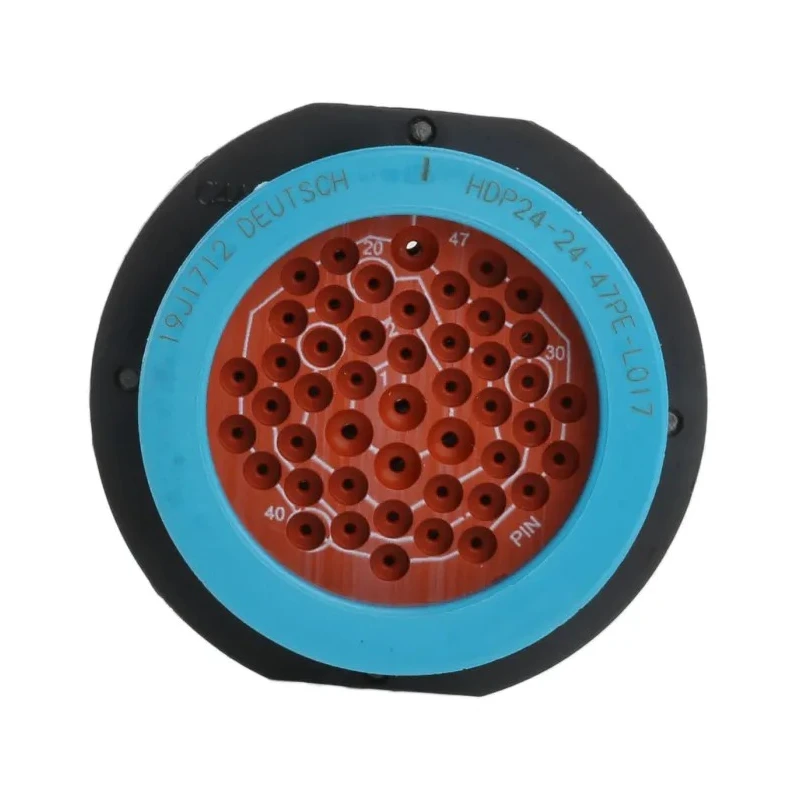

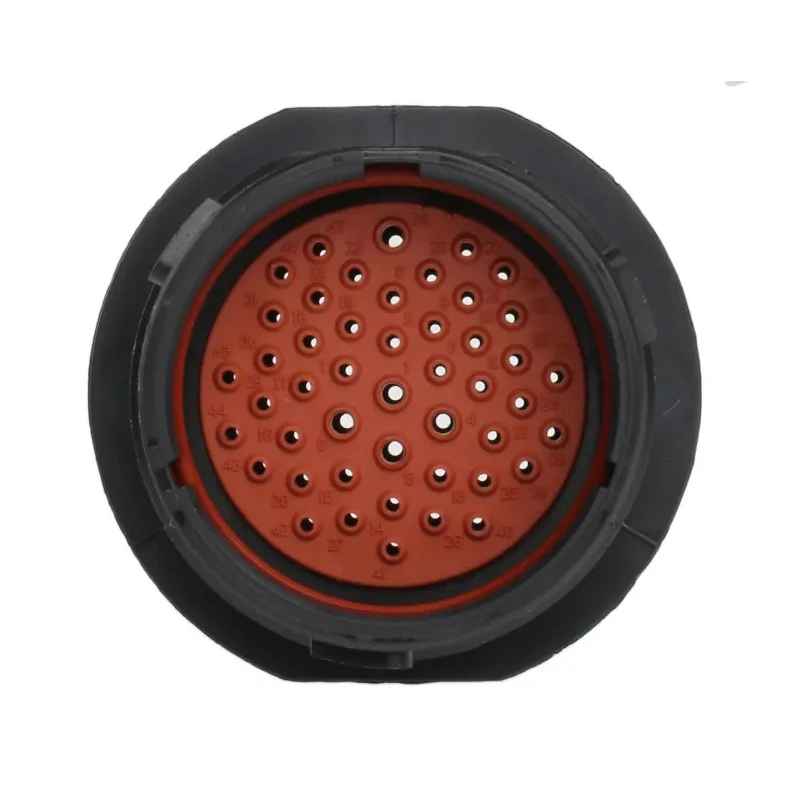

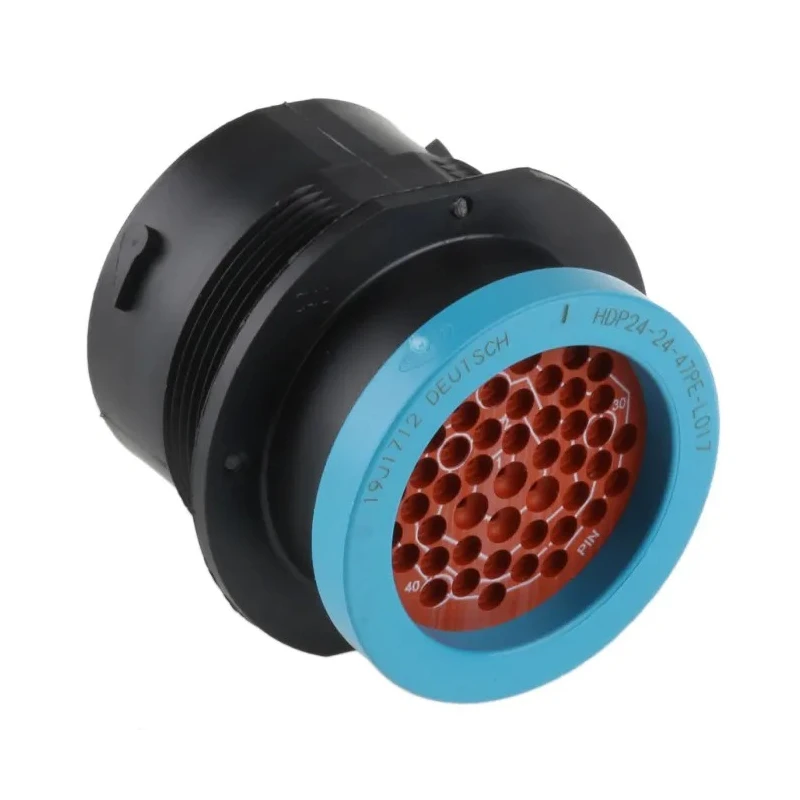

Deutsch Industrial Circular Connector, 47 Contacts, Panel Mount, 1.59 mm Socket Male, IP67 Rated, HD20 HDP24-24-47PE-L017
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 13A |
| Model | HDP24-24-47PE-L017 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 47 |
| Contact Plating | Nickel |
| Number of Contacts | 47 |
| Contact Gender | Male |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 1.59 mm |
| Plug/Socket | Socket |
Key Features
- Rated for 13A current and 250V voltage for reliable power transmission.
- Constructed with thermoplastic housing material for durability and resistance.
- Nickel-plated copper contacts ensure corrosion resistance and long service life.
- Operates between -55°C to 125°C temperature range, suitable for harsh environments.
- Bayonet mating type with straight orientation enables secure connection.
- Designed for heavy-duty industrial applications with vibration proof and corrosion resistance features.
- Offers a minimum of 100 mating cycles ensuring reliable repeated connections.
- Crimp termination type supports secure wiring installation.
Product Description
Deutsch HDP24-24-47PE-L017 is an industrial-grade circular connector designed for demanding electronic component and power connector applications. It features 47 contacts within a robust panel mount shell and is rated IP67, making it dustproof and waterproof for use in harsh environments. The connector comes with 1.59 mm size socket male contacts, using a bayonet mating system to ensure secure and reliable connections in industrial settings.
This connector supports a current rating of 13 amps and an operating voltage of 250 volts. The contacts are made of copper and plated with nickel, offering superior corrosion resistance. Its thermoplastic housing adds durability while enabling operation from -55°C to 125°C, suitable for a broad range of industrial, manufacturing, and equipment applications where reliable electrical connectivity is critical.
The HDP24-24-47PE-L017 model belongs to Deutsch's HD20 series of heavy-duty multipole circular connectors, known for their ruggedness, vibration resistance up to 20g between 10 and 2000Hz, and minimum 100 mating cycles lifespan. Wiring termination uses crimp type contacts compatible with various industrial crimping tools for secure assembly.
This connector is ideal for automotive, agricultural machinery, commercial vehicles, and industrial equipment wiring harnesses. The IP67 rating ensures protection against dust ingress and water immersion, making it reliable for both indoor and outdoor usage. Deutsch’s legacy of durable, high-quality interconnect solutions is upheld with this HDP24 series product offering.
Rated current of 13A and voltage rating of 250V. Thermoplastic housing material for robust durability. Nickel-plated copper contacts for corrosion resistance. Wide operating temperature range from -55°C to 125°C. Bayonet mating type with 1.59 mm connector size.
Panel mount with straight orientation for easy installation. Meets IP67 standard for dust-tight and water resistance. 100 mating cycles minimum and vibration proof to 20g. Crimp termination type suitable for secure wiring.
Part of the HD20 series heavy-duty connectors. Explore the full range of Deutsch industrial connectors on EnvMart to find compatible components and accessories for your electronic and power connector needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 13A and a voltage of 250V, ensuring reliable power transmission.
This model has an IP67 rating, making it dustproof and waterproof for use in harsh environments.
The housing is made of thermoplastic material, and the contacts are copper with nickel plating for corrosion resistance.
It operates within a temperature range of -55°C to 125°C, suitable for various industrial applications.
The connector features 47 contacts, providing multiple connection options for various applications.
It uses crimp termination type, which supports secure wiring installation.
The connector utilizes a bayonet mating type, which ensures a secure and reliable connection.
This model has a straight orientation for easy installation in panel mount applications.
It offers a minimum of 100 mating cycles, ensuring reliable repeated connections.
It is designed to withstand vibration up to 20g between 10 and 2000Hz, suitable for heavy-duty applications.
The connector is manufactured in India.
It is ideal for automotive, agricultural machinery, commercial vehicles, and industrial equipment wiring harnesses.
