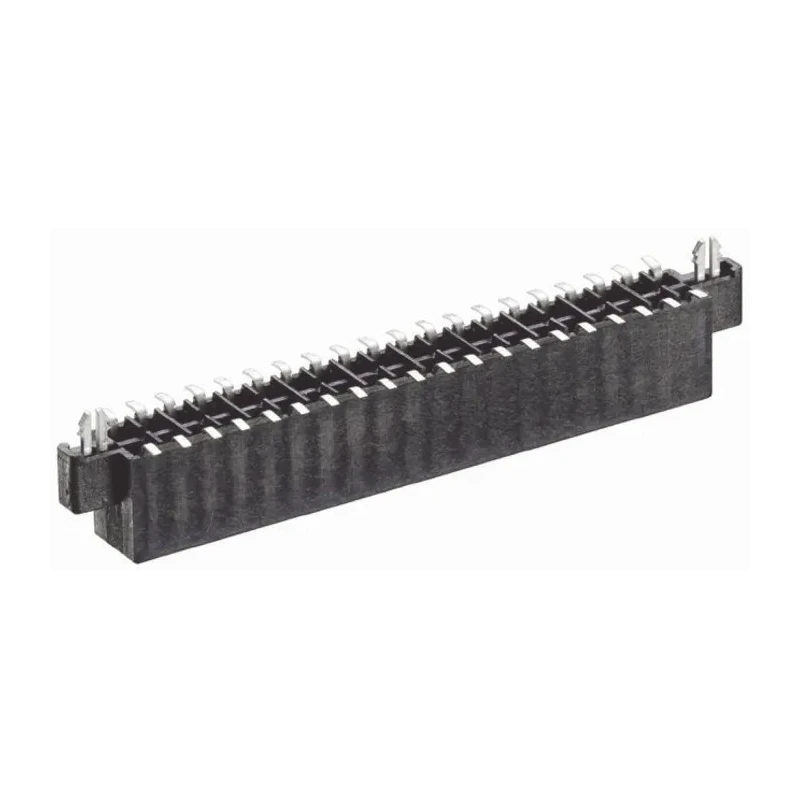

TE Connectivity AMPMODU System 50 Series Straight Surface PCB Socket 40-Contact 2 Row 1.27mm Pitch Solder 5-104652-4

TE Connectivity 5-104652-4 AMPMODU System 50 Series Straight Surface PCB Socket is a high density 40-contact, 2-row PCB socket designed for robust board-to-board connection in SMT assemblies. It features a 1.27 mm pitch solder termination type and a straight, surface mount orientation ideal for compact electronic component layouts.

The socket housing is made from liquid crystal polymer, providing excellent durability and reliability under demanding industrial conditions. The copper contacts are gold plated to provide superior conductivity and enhanced corrosion resistance during long-term use.

This connector supports currents up to 12A and voltage ratings up to 30V, making it suitable for a wide range of electronic applications requiring high performance and safety. Its operating temperature range from -40°C to 105°C ensures stable operation in harsh environments.

The AMPMODU 50/50 system allows for flexible parallel board stacking with standard 2.54 mm row pitch and 1.27 mm grid spacing, streamlining board design and assembly. This socket complies with the UL 94V-0 flammability standard, ensuring protection and reliability in industrial and electronic manufacturing sectors.

Compatible with both infrared (IR) and vapor phase reflow (VPR) surface mount soldering processes, it is engineered for efficiency in automated production lines. It is widely used for industrial, manufacturing, and electronic device assembly where dense, reliable connections are required.

Designed for board-to-board connections in high density SMT assemblies. Constructed from durable liquid crystal polymer housing. Gold plated copper contacts provide excellent conductivity. Supports 12A current and 30V voltage rating.

Suitable for operating temperatures from -40°C to 105°C. Complies with UL 94V-0 safety flammability standard. Compatible with IR and vapor phase reflow soldering. Facilitates flexible parallel board stacking solutions with 1.27 mm pitch.

Ideal for electronic manufacturing and industrial applications. Surface mount and straight orientation for compact PCB designs. Explore more high-quality Connectors and PCB components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
