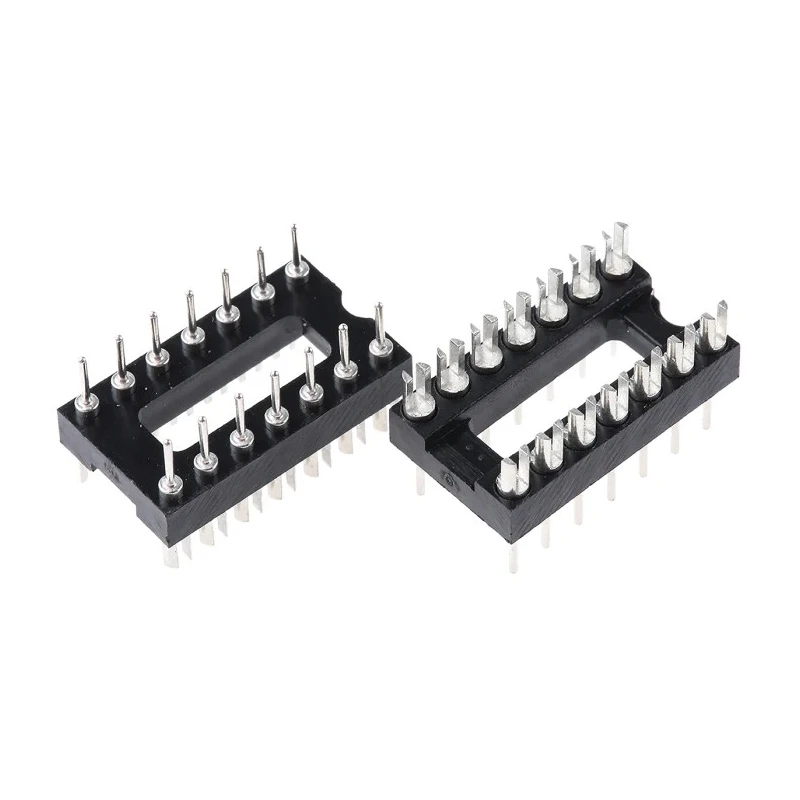

RS PRO 2.54 mm Pitch 14 Way Through Hole Mount DIL Header Tin over Nickel 1A 402-658
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Current | 1A |
| Length | 17.7mm |
| Model | 402-658 |
| Depth | 10.14mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 14 |
| Pin Type | Slotted Pin |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Consists of 14 way brass contacts ensuring reliable connections.
- Contact plating is Tin over Nickel for improved durability and conductivity.
- Pitch between pins is 2.54 mm standard spacing.
- Unshrouded design suitable for through hole mounting on PCBs.
- Housing is made from Polybutylene Terephthalate (PBT) material offering UL 94 V-0 flammability rating.
- Designed to operate between -55°C and +150°C for industrial reliability.
- Slotted pin type enhances solder termination quality and electrical contact.
- Measures 17.7 mm in length and 10.14 mm in depth for compact integration.
Product Description
RS PRO 402-658 is a high quality Dual Inline (DIL) header with 2.54 mm pitch and 14 contacts, designed for through hole mounting applications. This DIL header features brass contacts plated with Tin over Nickel for excellent electrical performance and corrosion resistance.
The housing material is durable Polybutylene Terephthalate (PBT), ensuring a UL 94 V-0 flammability rating compliant with safety standards. Its unshrouded pin design facilitates easy soldering and reliable connections on printed circuit boards (PCBs).
Operating temperature range from -55°C to +150°C makes it suitable for harsh industrial, telecommunications, and electronic assembly environments. The slotted pin type aids in stable and secure solder joints for robust electrical continuity.
The product dimensions include a length of 17.7 mm and a depth of 10.14 mm, making it ideal for use in compact module and subassembly constructions where space efficiency is critical.
Consists of 14 way brass contacts ensuring reliable connections. Contact plating is Tin over Nickel for improved durability and conductivity. Pitch between pins is 2.54 mm standard spacing. Unshrouded design suitable for through hole mounting on PCBs.
Housing is made from Polybutylene Terephthalate (PBT) material offering UL 94 V-0 flammability rating. Designed to operate between -55°C and +150°C for industrial reliability. Slotted pin type enhances solder termination quality and electrical contact.
Measures 17.7 mm in length and 10.14 mm in depth for compact integration. Manufactured in the United Kingdom as a precision electronic connector component.
This RS PRO DIL header is widely used in electronic manufacturing, industrial control systems, custom PCB assemblies, and telecommunications equipment. Its reliable construction and standardized form factor make it compatible with various DIL sockets and adapters for multi-way plug and socket connections.
Explore more high-quality electronic components and connectors from RS PRO for your manufacturing and repair needs at EnvMart.
Explore more products in our PCB Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this DIL header is 2.54 mm, which is the standard spacing between pins.
This model features 14 contacts, allowing for multiple connections in a compact design.
The maximum operating temperature for this header is +150°C, making it suitable for various industrial applications.
The housing of this DIL header is made from Polybutylene Terephthalate (PBT), which offers a UL 94 V-0 flammability rating.
This DIL header uses a solder termination type, which enhances the quality of electrical connections.
The depth of this DIL header is 10.14 mm, allowing for compact integration in electronic assemblies.
Yes, this model is designed for through hole mounting on printed circuit boards (PCBs).
The minimum operating temperature for this DIL header is -55°C, making it suitable for harsh environments.
This DIL header features slotted pins, which enhance solder termination quality and electrical contact.
This product is manufactured in the United Kingdom, ensuring precision in its construction.
The current rating for this model is 1A, suitable for various electronic applications.
This model complies with the UL 94 V-0 standards, indicating its flammability rating and safety compliance.
