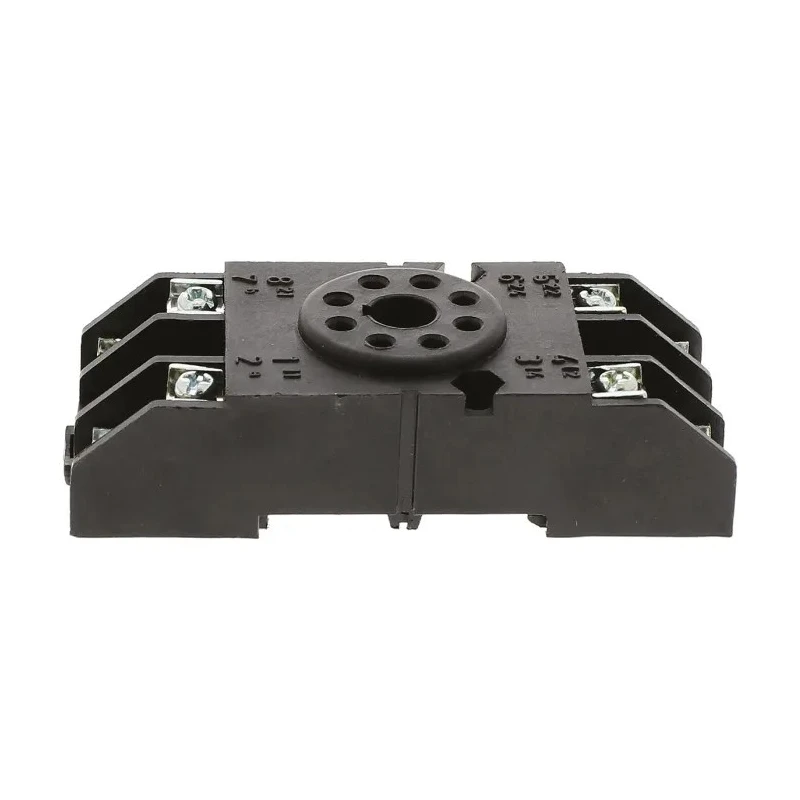

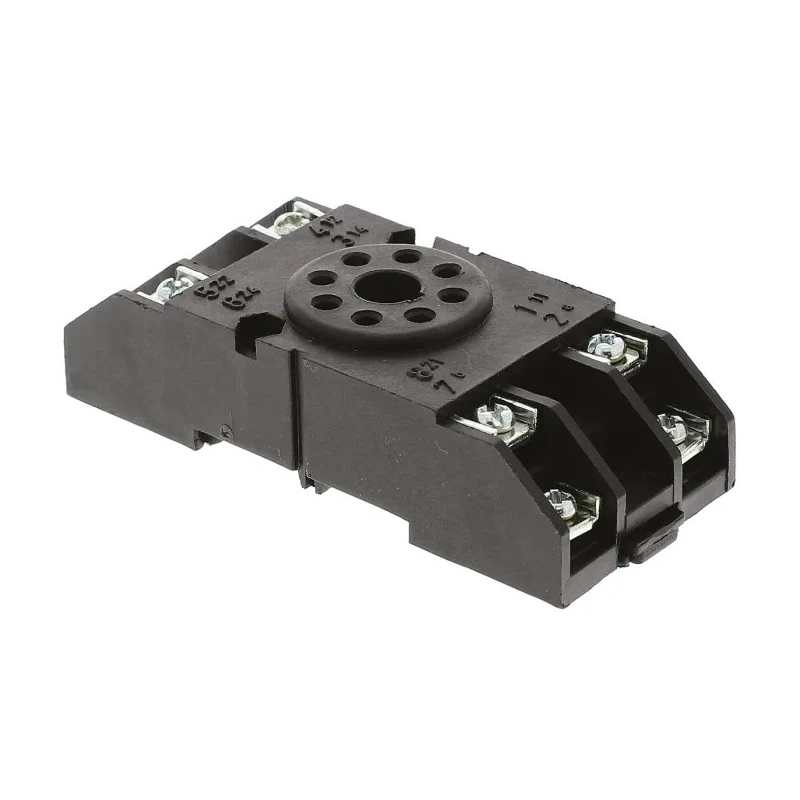

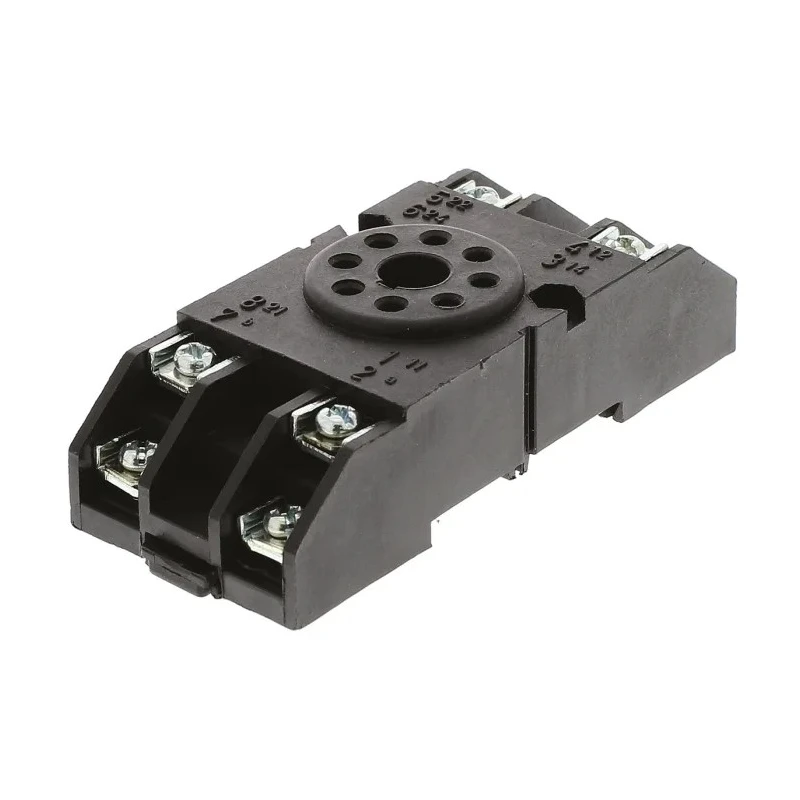

Tempatron 8 Way 250V AC DIN Rail Relay Socket for Octal Relay S8P

Tempatron S8P is an 8 Way DIN Rail Relay Socket engineered for industrial and electrical automation use, supporting 250V AC voltage and a current capacity of 10A. It is specifically designed for use with Octal type relays, providing a reliable connection interface for control and switching circuits.

This relay socket offers multiple mounting options, including DIN rail and surface mounting, increasing installation versatility in control panels and electrical cabinets. The screw terminal type ensures firm and stable wire connections, while the contact material of silver with gold flashing enhances performance through superior conductivity and corrosion resistance.

Encased in a clear polycarbonate protective cover, the socket safeguards internal contact points from dust, debris, and accidental contact, improving electrical safety and maintenance inspection ease. It supports a maximum switching voltage of 250V AC and 30V DC, suitable for a wide range of industrial relay applications.

Designed durability is ensured with a mechanical life of at least 10 million operations and an electrical life of 100 thousand operations, providing long-term, dependable performance under rigorous operating conditions. The product withstands ambient temperatures up to 65°C when energized, making it suitable for various manufacturing and automation environments.

The compact size of H 53mm, W 36mm, D 36mm allows for efficient use of control panel space without compromising functionality. This relay socket complies with RoHS standards, reflecting adherence to environmental and safety regulations.

Equipped with 8 contacts to suit various relay configurations. Mounting options include DIN Rail or surface installation for flexible setup. Features screw terminal connections for secure electrical contact. Contact material composed of silver with gold flashing for excellent conductivity and corrosion resistance.

Protected by a clear polycarbonate cover ensuring durability and safety. Capable of withstanding a maximum switching voltage of 250V AC and 30V DC. Mechanical life rated at a minimum of 10 million operations and electrical life at 100 thousand operations.

Designed to operate at temperatures up to 65°C at rated coil voltage. Compact dimensions of 53mm height, 36mm width, and 36mm depth optimize space efficiency.

This relay socket is widely used in industrial controls, automation systems, electrical panels, manufacturing, and other commercial electrical applications where reliable relay interfacing is critical.
