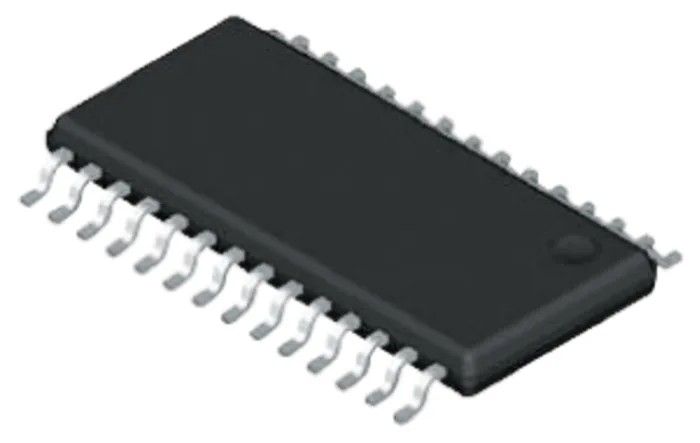

Microchip 16 bit PIC PIC24FJ Microcontroller 32 MHz 32kB FLASH 28-Pin SSOP PIC24FJ32GA002-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | PIC24FJ32GA002-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at maximum clock frequency of 32 MHz for efficient processing.
- Features 32kB flash program memory and 8kB RAM, providing ample memory capacity.
- Supports 10 analog to digital converters with 10-bit resolution for precise measurements.
- Designed with 5 timers and 2 analogue comparators for versatile control applications.
- Operates within a voltage range of 2 to 3.6 V for flexible power supply integration.
- Surface mount device type with compact 28-pin SSOP package for space-saving PCB design.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Uses Modified Harvard instruction set architecture for enhanced processing efficiency.
Product Description
Microchip PIC24FJ32GA002-I/SS is a high-performance 16 bit PIC microcontroller designed for embedded applications requiring reliable processing at up to 32 MHz. Featuring 32kB of flash memory and 8kB of RAM, it supports complex firmware and data handling. The microcontroller comes in a compact 28-pin SSOP surface mount package, facilitating space-efficient PCB layouts.
Equipped with 10 analog-to-digital converters providing 10-bit resolution, and 2 analogue comparators, this device ensures precise sensor interfacing and measurement capabilities. It includes 5 versatile timers enabling real-time control tasks for applications in industrial automation, consumer electronics, automotive systems, and more.
Operable over a wide supply voltage range from 2 to 3.6 V and temperature range from -40°C to 85°C, it is suitable for harsh operational environments. The modified Harvard architecture optimizes instruction cycle throughput, delivering efficient code execution and reduced power consumption.
The flash program memory allows fast and frequent reprogramming, adapting to evolving application requirements. Its small physical dimensions (10.5 mm x 5.6 mm x 1.85 mm) support integration into compact designs without sacrificing performance.
Operates up to 32 MHz clock speed for responsive system performance. Ample 32kB FLASH and 8kB RAM for data and program storage. 10 channels of 10-bit ADCs for accurate sensor data acquisition. Surface mount 28-pin SSOP package minimizes PCB space.
Wide voltage supply range of 2 to 3.6 V suitable for various power sources. Five timers allow diverse timing and control functions. Analogue comparators enhance signal conditioning capabilities. Operating temperature from -40°C to 85°C caters to industrial applications.
Modified Harvard architecture boosts processing efficiency. Flash memory program type supports easy firmware updates.
This microcontroller is ideal for use in industrial control systems, automotive electronics, consumer devices, and measurement instrumentation where reliability and compact size matter. With Microchip’s focus on quality, the PIC24FJ32GA002-I/SS represents a confident choice for embedded design projects.
Explore more Microchip Microcontrollers and electronic components on EnvMart for your next innovative product development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC24FJ32GA002-I/SS is 32 MHz, allowing for efficient processing capabilities.
This model features 32kB of flash program memory and 8kB of RAM, providing ample memory for complex applications.
It supports 10 analog-to-digital converters with 10-bit resolution, enabling precise measurements.
The operating voltage range is from 2 to 3.6 V, which allows for flexible power supply integration.
The dimensions of this microcontroller are 10.5 mm in length, 5.6 mm in width, and 1.85 mm in height.
It includes 5 timers, which provide versatile control functions for various applications.
This model operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
The PIC24FJ32GA002-I/SS comes in a compact 28-pin SSOP surface mount package, ideal for space-saving PCB designs.
It uses a modified Harvard instruction set architecture, which enhances processing efficiency.
This microcontroller is suitable for applications in industrial automation, consumer electronics, automotive systems, and measurement instrumentation.
The PIC24FJ32GA002-I/SS is equipped with 2 analogue comparators for enhanced signal conditioning capabilities.
The device core of this microcontroller is based on the PIC architecture, designed for embedded applications.
