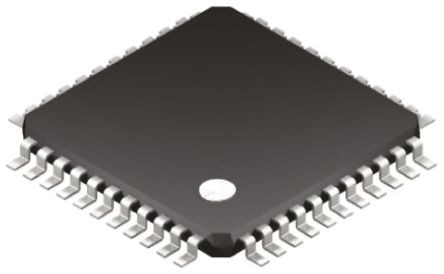

Microchip 16 bit PIC24F Microcontroller 32 MHz, 32kB FLASH, 44-Pin TQFP PIC24F32KA304-I/PT
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24F32KA304-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2.048kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 64MB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC, DSP |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes a 16-bit PIC24F architecture for efficient processing.
- Operates with a maximum clock frequency of 32 MHz enhancing performance.
- Equipped with 32kB of FLASH program memory and 2.048kB RAM for versatile application code space.
- Features 44-pin TQFP package suitable for surface mount technology.
- Includes 16 x 12-bit ADCs and 3 analogue comparators for enhanced analog interfacing.
- Wide operating voltage range from 1.8V to 5.5V for flexible power supply options.
- Features 5 timers and supports RISC and DSP instruction sets.
- Designed to operate reliably from -40°C to 85°C for industrial environments.
Product Description
Microchip PIC24F32KA304-I/PT is a 16 bit PIC microcontroller engineered to deliver efficient embedded system performance with a 32 MHz maximum clock frequency and 32kB of FLASH memory. This device utilizes a 44-pin TQFP surface mount package, ideal for compact and advanced circuit designs in industrial and commercial electronics.
Featuring a 16-bit PIC device core, it supports a 16-bit data bus width and includes 2.048kB RAM for versatile memory management. The microcontroller offers 5 timers and an array of 16 analog-to-digital converters with 12-bit resolution complemented by 3 analogue comparators, enabling precise analog signal processing.
This microcontroller operates within a broad voltage range of 1.8V to 5.5V and is capable of functioning reliably over a temperature range from -40°C to 85°C, making it suitable for industrial, automotive (non-certified), and commercial applications. The device supports both RISC and DSP instruction sets enhancing its processing capabilities.
Utilizes a 16-bit PIC24F architecture ensuring optimized performance. Incorporates 32kB FLASH memory for program storage and 2.048kB RAM. Features a 44-pin TQFP surface mount package providing compact design flexibility.
Equipped with multiple timers and high-resolution ADCs for complex signal handling. Wide operating voltage range and temperature tolerance for diverse environments. Compliant with RoHS standards ensuring environmental safety.
Compact physical dimensions facilitating integration in space-constrained designs.
Manufactured in Thailand, this PIC24F microcontroller is primarily used in embedded systems, industrial control units, signal processing applications, and other high-performance digital control systems. Explore more Microcontrollers and semiconductor components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 32kB.
The operating voltage range is from 1.8V to 5.5V.
It can operate reliably in temperatures ranging from -40°C to 85°C.
This microcontroller utilizes a 44-pin TQFP surface mount package.
It is equipped with 2.048kB of RAM.
It supports both RISC and DSP instruction sets.
The dimensions are 10mm in length, 10mm in width, and 1.05mm in height.
It is manufactured in Thailand.
