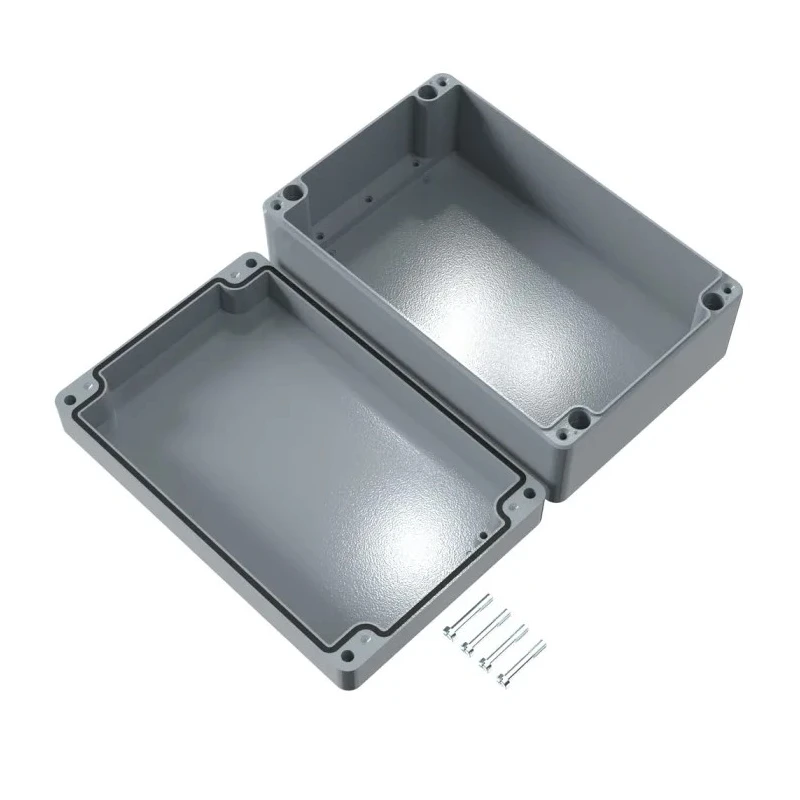

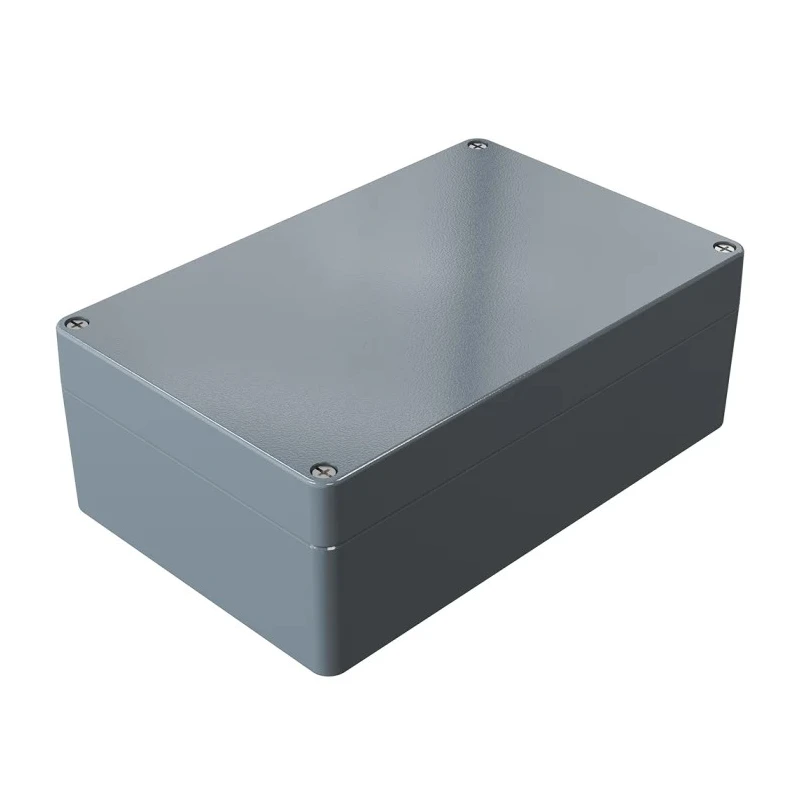

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure IP66 IK09 280x180x280 mm 01182810
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Body Material | Die Cast Aluminium |
| Model | 01182810 |
| IP Rating | IP66 |
| Gross Weight | 2.9kg |
| Series | Aluminium Standard |
| External Width | 180mm |
| External Height | 280mm |
| Shielding | Unshielded |
| Hazardous Area Certification | Maritime, UL |
| Standards/Approvals | RoHS Compliant |
| External Length | 280mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| Number of Knockouts | 0 |
Key Features
- Constructed from corrosion-resistant die cast aluminium for durability.
- Rated IP66 and IK09 for dust, water ingress and impact protection.
- Polyurethane gasket ensures environmental sealing.
- Suitable for mounting on DIN rail or fixing plate for flexibility.
- Includes stainless steel screws to secure lid and prevent tampering.
- Meets UL 508A safety standards for industrial control panels.
- Wide operating temperature range from -40°C to +90°C for harsh environments.
- Designed for electronic modules, cable management, and industrial control applications.
Product Description
Rose 01182810 Aluminium Standard Series Grey Lid Die Cast Aluminium Enclosure IP66 IK09 with external dimensions 280 mm length, 180 mm width, and 280 mm height is engineered for reliable storage and protection of sensitive electrical and electronic components within industrial environments.
This enclosure features a die cast aluminium body that resists corrosion and mechanical impact, providing durability and robust protection. Its polyurethane (PU) gasket enhances sealing to exclude dust, moisture, and contaminants, while achieving IP66 ingress protection and IK09 impact resistance ratings ensure suitability for demanding indoor and outdoor applications.
Certified compliant with UL 508A industrial control panel standards, it supports mounting versatility via DIN rail or fixing plate options. The enclosure secures components with stainless steel screws on the lid, preventing unauthorized access and tampering.
Its wide operating temperature range from -40°C to +90°C allows use in extreme conditions across manufacturing, automation, telecommunications, and IT sectors. Typical applications include housing electronic modules, button switching elements, and cable or wire management systems.
Corrosion-resistant die cast aluminium construction for longevity and strength. IP66 rating ensures protection against dust ingress and high-pressure water jets. Polyurethane gasket improves environmental sealing. Stainless steel screws secure the lid to prevent tampering.
Meets UL 508A safety standards for industrial control panels. Suitable for DIN rail or fixing plate mounting. Operating temperature range from -40°C to +90°C. Ideal for electronic modules, cable management, and industrial automation.
Lightweight, weighing 2.9 kg with compact dimensions.
This Rose enclosure is manufactured in Germany and designed to meet high industrial quality standards. Browse other Electrical Enclosure solutions or Rose brand products on EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this enclosure are 280 mm in length, 180 mm in width, and 280 mm in height.
The body of this enclosure is constructed from die cast aluminium, which provides corrosion resistance and durability.
This enclosure has an IP66 rating, ensuring protection against dust ingress and high-pressure water jets.
The enclosure is rated IK09 for impact resistance, indicating it can withstand mechanical impacts.
It has a wide operating temperature range from -40°C to +90°C, allowing use in extreme conditions.
Yes, it meets UL 508A safety standards for industrial control panels and is RoHS compliant.
It features a polyurethane gasket that enhances environmental sealing against dust and moisture.
The lid is secured with stainless steel screws, which help prevent tampering and unauthorized access.
This model can be mounted on a DIN rail or fixed to a plate, providing flexibility in installation.
The gross weight of this enclosure is 2.9 kg, making it relatively lightweight for its size.
It is designed for housing electronic modules, cable management, and industrial control applications.
This enclosure is manufactured in Germany, adhering to high industrial quality standards.
