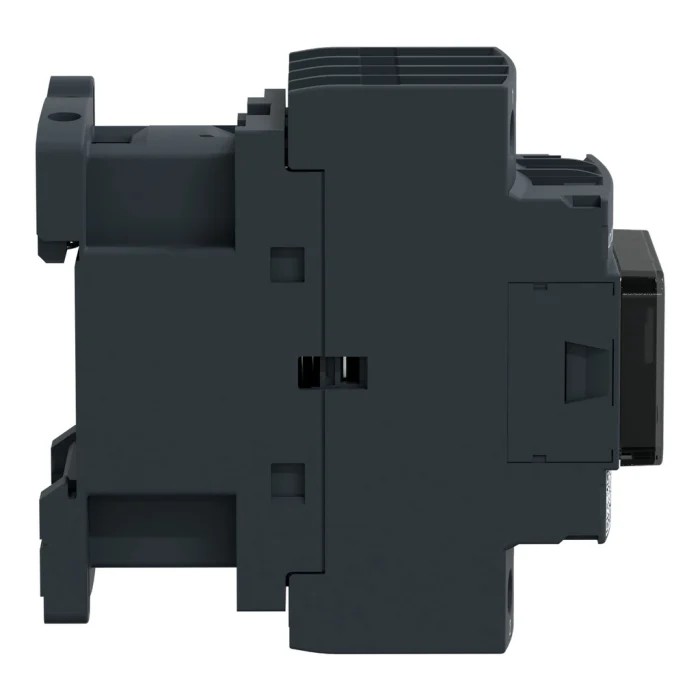

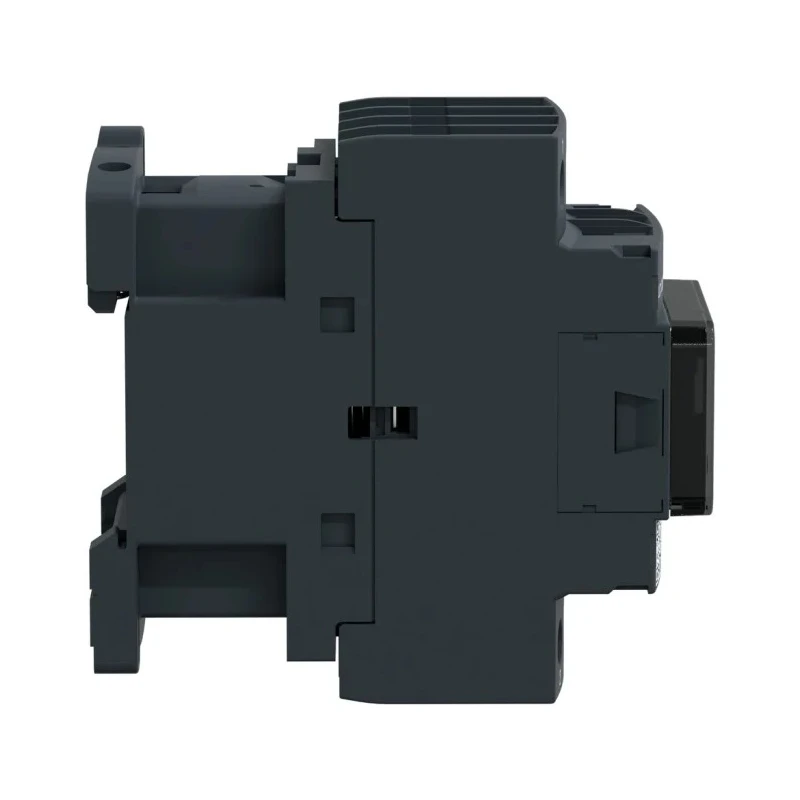

Schneider Electric TeSyS D Contactor 24V DC Coil, 4-Pole, 18A, 2 NO/2 NC, 690V AC LC1D188BL
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1D188BL |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 2.5W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | EAC, IEC, RoHS, UL, CCC, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor incorporates 2 normally open (NO) and 2 normally closed (NC) contacts for versatile control.
- Coil power rating is low at 2.5W, optimizing energy efficiency during operation.
- It has screw terminal connections with IP20 finger-safe protection and both international and North American terminal markings.
- Designed for DIN rail mounting, ideal for industrial automation and control panel setups.
- Operating temperature range spans from -5°C to 60°C, allowing reliability in diverse environments.
- Auxiliary contacts include 1 NO and 1 NC for expanded control functions.
- Complies with international standards including IEC, RoHS, UL, CCC, CSA, and carries EAC certification.
- Typical uses include controlling squirrel cage motors and resistive loads in industrial motors, pumps, compressors, and HVAC systems.
Product Description
Schneider Electric LC1D188BL TeSyS D Contactor features a 24V DC coil voltage, 4-pole configuration, 18A contact current, and supports a contact voltage of 690V AC. This product is engineered for motor control and resistive load applications in industrial, manufacturing, HVAC, and water treatment sectors.
This contactor delivers high reliability and long mechanical and electrical life. Its build quality ensures robust performance in motor starters and control systems integration. The coil consumes a mere 2.5W, promoting energy-efficient operations.
Screw connections come equipped with IP20 finger-safe terminals and dual international and North American terminal markings, enhancing safety and compatibility. It mounts easily on DIN rails or panels, simplifying installation and maintenance.
The contactor includes 2 normally open and 2 normally closed contacts, plus 2 auxiliary contacts (1 NO, 1 NC), allowing flexible motor control and signaling. Designed to operate within a temperature range of -5°C to 60°C, it copes well with demanding environments.
Schneider Electric adheres to stringent international standards such as IEC, RoHS, UL, CCC, and CSA, ensuring this contactor's compliance and safety.
Applications commonly entail squirrel cage motor controls, pumps, compressors, mixers, conveyors, lifts, escalators, and HVAC equipment. Its improved coil design offers wider control voltage band and reduced energy consumption.
Manufactured in Indonesia, this product supports Schneider Electric’s Better World program with design features that promote disassembly and sustainability. The Contactor includes screw terminal connections supporting IP20 finger-safe protection.
It provides 4-pole switching with 2 NO and 2 NC contacts. The coil voltage is 24V DC operating at 2.5W power consumption. Auxiliary contacts facilitate expanded circuit control. Typical applications cover motor control, resistive loads, and industrial automation systems.
Explore a range of Schneider Electric control gear and automation solutions on EnvMart to meet your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V DC.
This contactor has a maximum contact current rating of 18A.
It features a contact configuration of 2 normally open (NO) and 2 normally closed (NC) contacts.
The operating temperature range spans from -5°C to 60°C.
It is designed for DIN rail mounting, which simplifies installation.
The dimensions are 91mm in length, 107mm in depth, and 45mm in width.
It complies with several standards, including IEC, RoHS, UL, CCC, and CSA, and carries EAC certification.
This contactor includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The coil power rating is 2.5W, which promotes energy efficiency during operation.
It is suitable for motor control and resistive load applications, commonly used in industrial motors, pumps, and HVAC systems.
It features screw terminal connections with IP20 finger-safe protection and both North American and international terminal markings.
The contact voltage rating is 690V AC.
