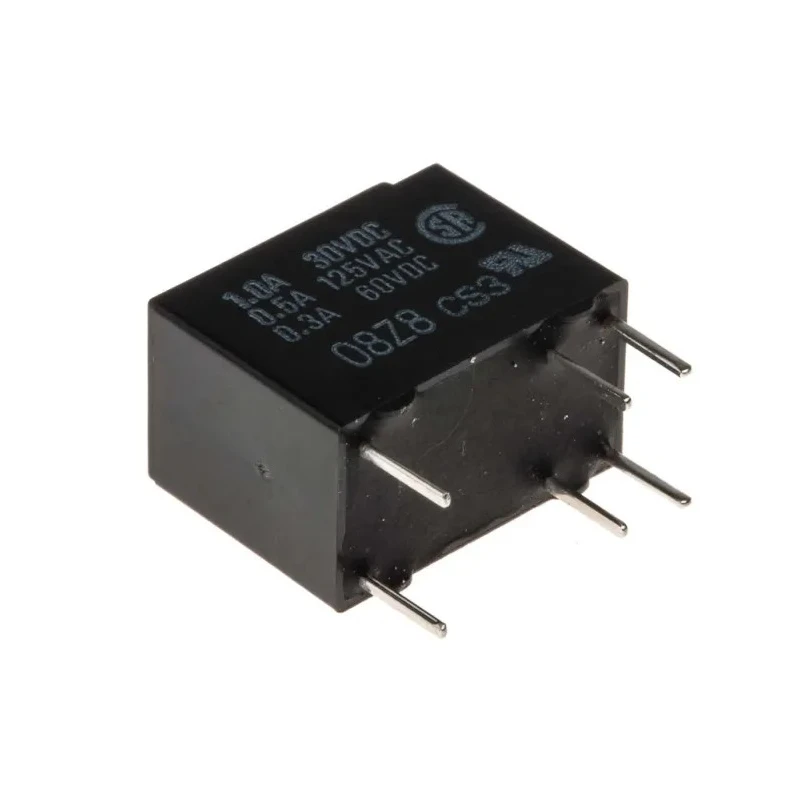

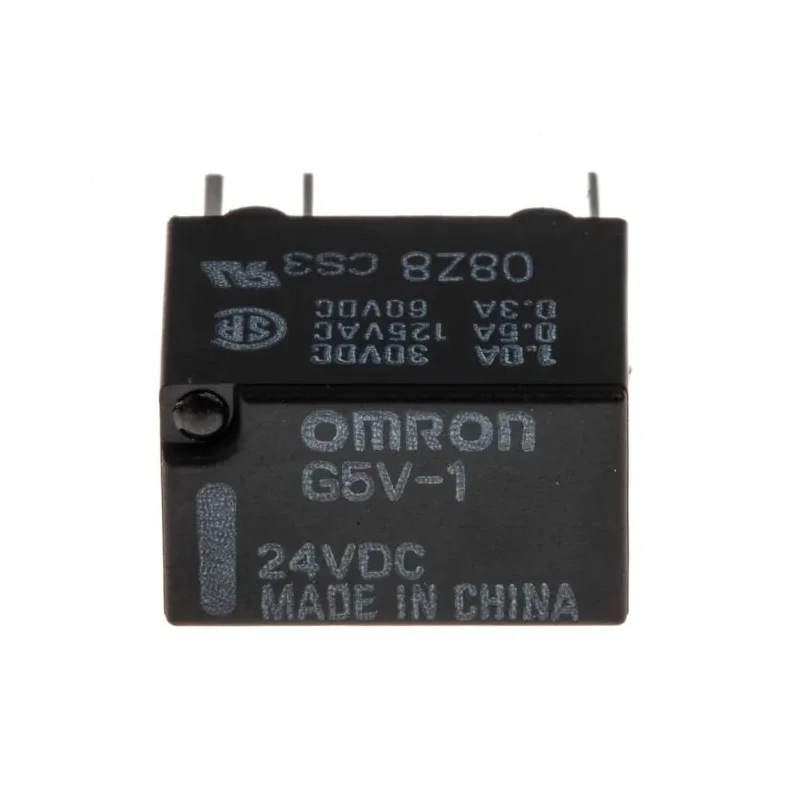

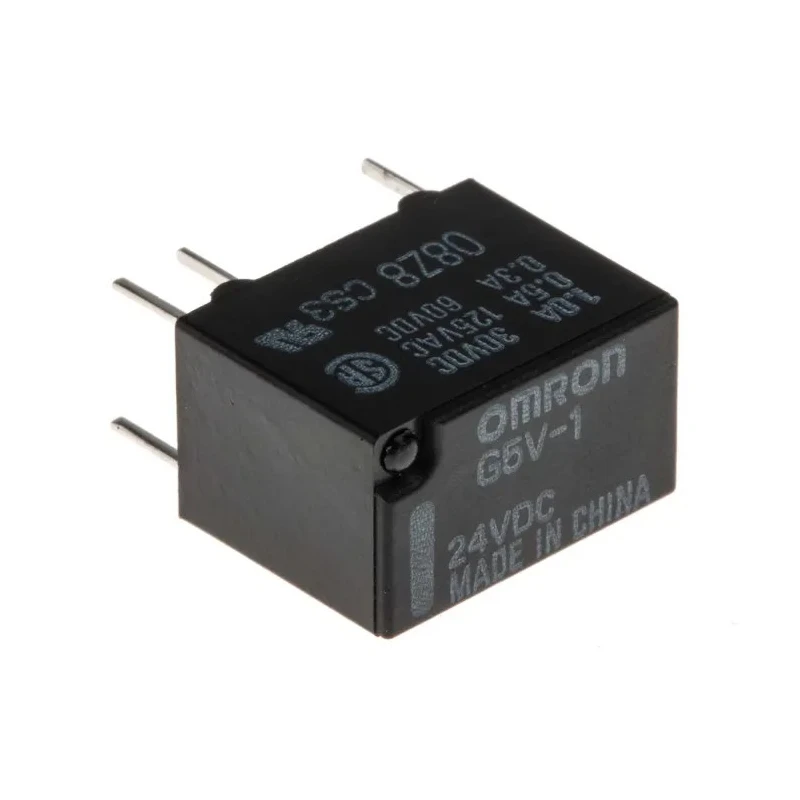

Omron PCB Signal Relay 24V dc Coil 2A SPDT G5V-1 DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 10mm |
| Model | G5V-1 DC24 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 3800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
| G2E SPCO miniaturePCBrelay,1A 24Vdc coilBrand | Omron |
| TE Connectivity PCB Signal Relay, 24V dc Coil, 1A, DPDTBrand | TE Connectivity |
| Panasonic PCB Mount Signal Relay, 24V dc Coil, 2A Switching Current, SPDTBrand | Panasonic |
Key Features
- Compact ultra-miniature sealed relay for PCB mounting.
- Supports switching current of up to 2A and voltage up to 125V AC or 60V DC.
- Low nominal coil power consumption of 150mW enhances energy efficiency.
- Gold-plated contacts ensure reliable connectivity and longevity.
- Wide operating temperature range from -40°C to 70°C for versatile industrial use.
- High dielectric strength and vibration/shock resistance provide robust performance.
- Ideal for telecommunication, audio-visual, security, and building automation systems.
- Completely sealed construction protects against harsh environmental conditions.
Product Description
Omron G5V-1 DC24 PCB Signal Relay is an ultra-miniature, highly sensitive, non-latching SPDT relay designed for precise signal circuit applications. It operates with a 24V DC coil voltage and features a sealed package that offers excellent environmental resistance, making it suitable for demanding industrial environments.
This relay supports switching currents up to 2A and switching voltages up to 125V AC or 60V DC, with gold-plated contacts ensuring consistent, low-resistance connections. The low nominal coil power consumption of 150mW contributes to energy efficiency in control systems. Its compact dimensions of 12.5 x 7.5 x 10 mm enable space-efficient PCB designs.
The G5V-1 DC24 relay features a robust build, with high dielectric strength ratings of 1000V AC between coil and contacts, and vibration and shock resistance designed to withstand industrial conditions. It operates reliably across a wide ambient temperature range from -40°C to 70°C without icing, ensuring stable performance in diverse environments.
Applications of this relay include telecommunication equipment, audio-visual systems, security devices, and building automation controls. Its fully sealed construction and solder-type PCB terminals simplify installation while protecting internal components.
Compact ultra-miniature sealed relay for PCB mounting. Supports switching current of up to 2A and voltage up to 125V AC or 60V DC. Low nominal coil power consumption of 150mW enhances energy efficiency. Gold-plated contacts ensure reliable connectivity and longevity.
Wide operating temperature range from -40°C to 70°C for versatile industrial use. High dielectric strength and vibration/shock resistance provide robust performance. Ideal for telecommunication, audio-visual, security, and building automation systems.

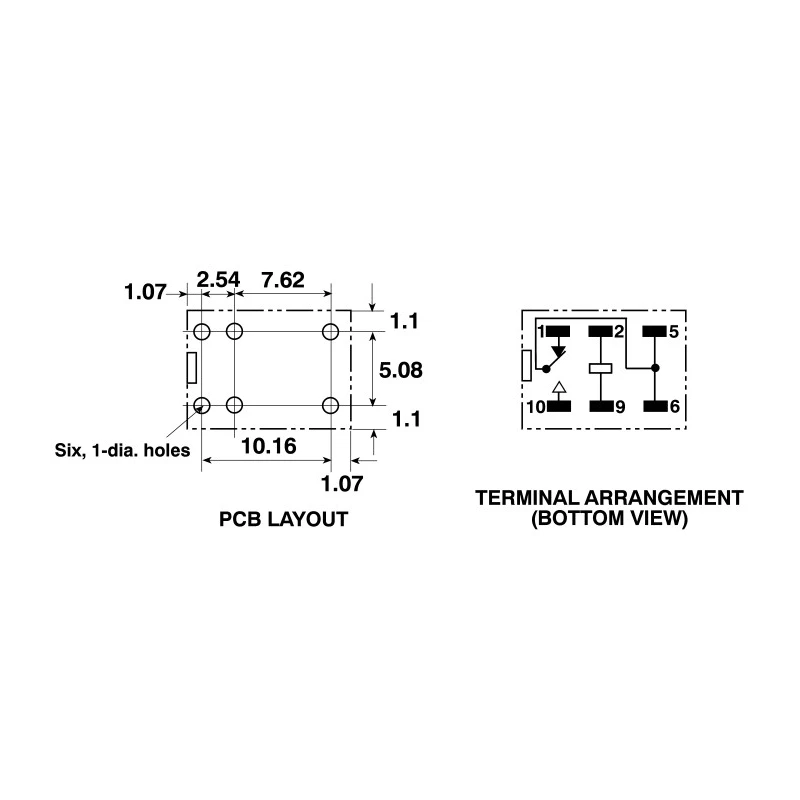

Dimensions: 12.5 mm (L) x 7.5 mm (W) x 10 mm (H) for space-saving designs. Completely sealed construction protects against harsh environmental conditions. Uses solder type PCB terminals for secure mounting.
Choose the Omron G5V-1 DC24 Signal Relay for reliable switching control in industrial, laboratory, automation, and communication applications. Explore more quality relays and contactors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a switching current of up to 2A.
The coil voltage for this model is 24V DC.
Its dimensions are 12.5 mm in length, 7.5 mm in width, and 10 mm in height.
It can switch voltages up to 125V AC or 60V DC.
It uses solder-type PCB terminals for secure mounting.
It operates reliably within a temperature range of -40°C to 70°C.
The nominal coil power consumption is 150mW.
It features a Single Pole Double Throw (SPDT) contact configuration.
The contacts are made from gold-plated material, ensuring reliable connectivity.
It complies with RoHS standards.
It is ideal for applications in telecommunication, audio-visual systems, security devices, and building automation controls.
The relay has a high dielectric strength rating of 1000V AC between coil and contacts.
