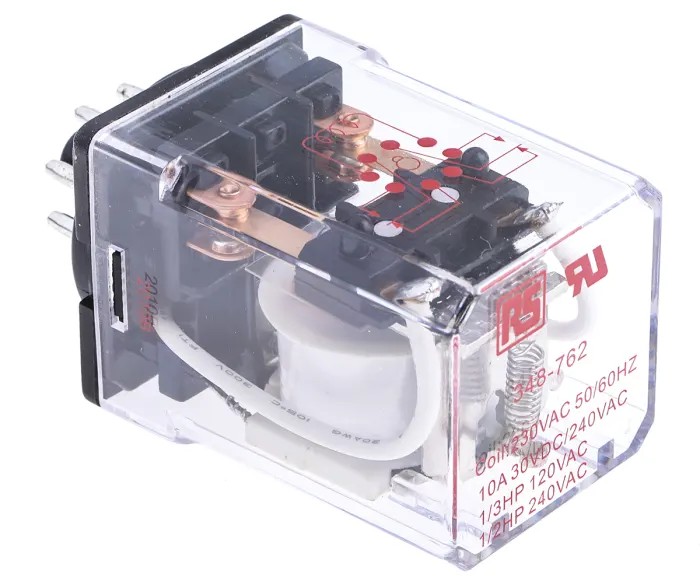

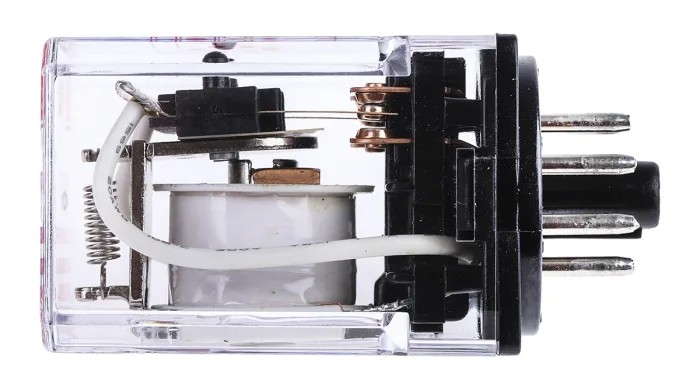

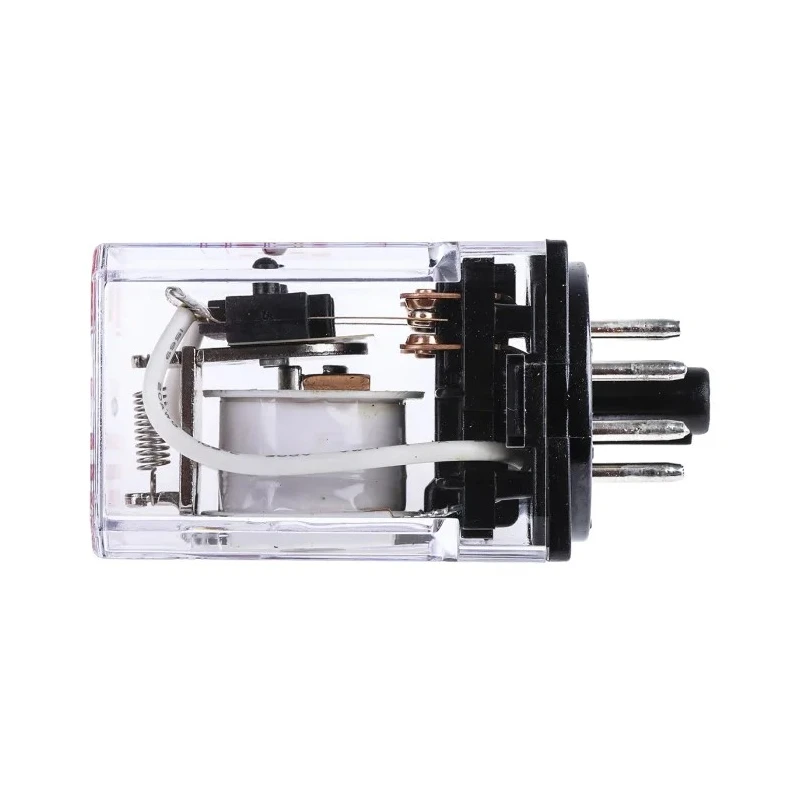

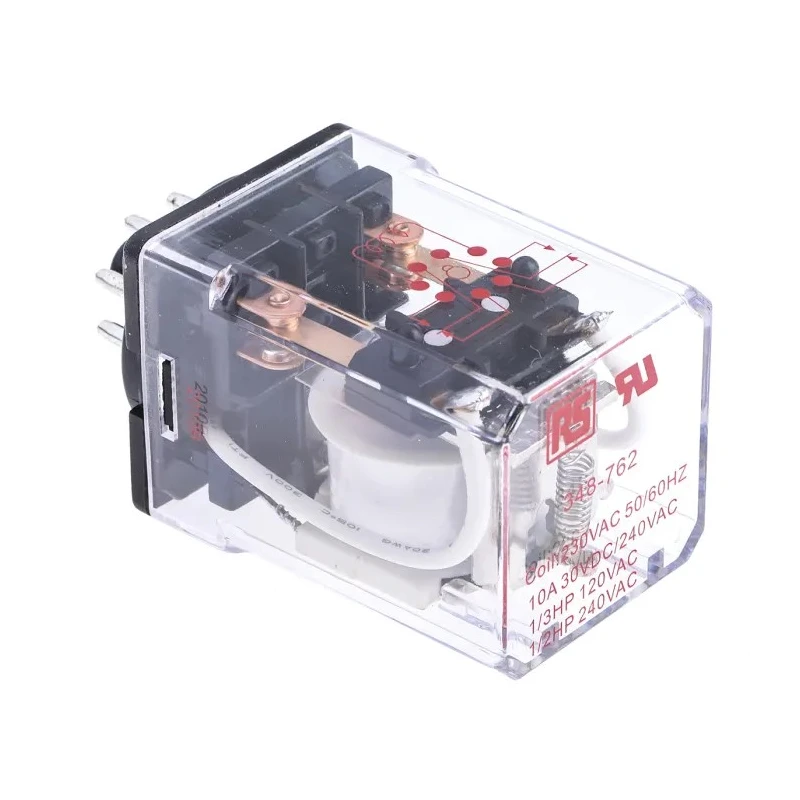

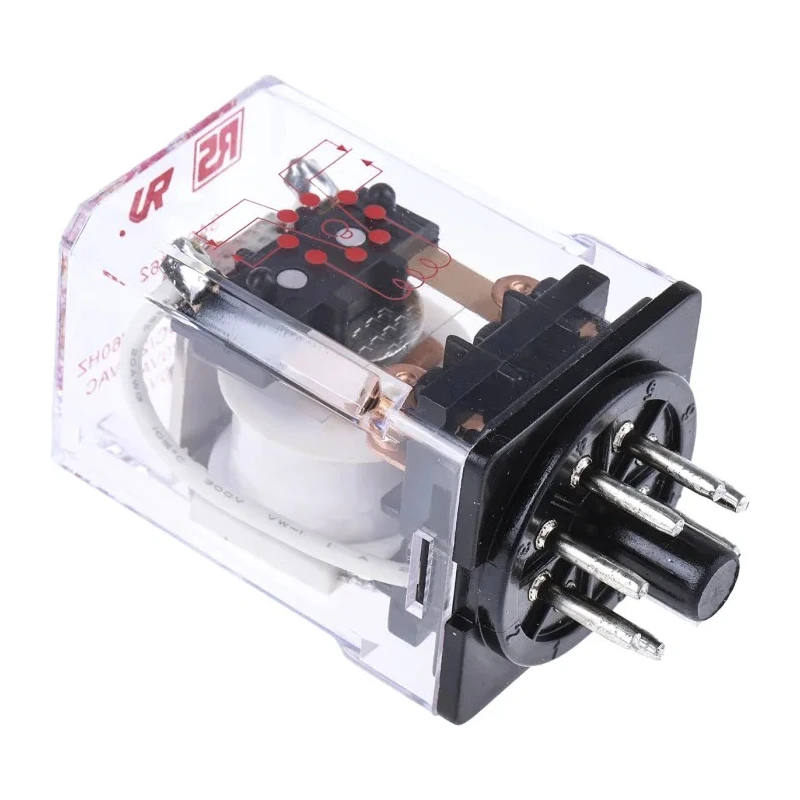

RS PRO Power Relay, 230V AC Coil, 10A Switching Current, DPDT, Silver Alloy Contact Material 348-762

RS PRO 348-762 power relay is a specialized DPDT (double pole double throw) relay designed with a 230V AC coil and 10A switching current capacity, suitable for various industrial and commercial electrical switching applications.

The relay's transparent polycarbonate cover offers protection while allowing visual inspection of internal components. Its contact material consists of silver alloy, providing excellent electrical conductivity and durability. The coil features a resistance of 8.2 kΩ and consumes 2W power, ensuring efficient operation within an ambient temperature range from -45°C up to 55°C.

This relay supports switching voltages up to 240V AC and 30V DC, making it compatible with a broad range of equipment. Compact dimensions of 56mm height, 35mm width, and 35mm length make it ideal for space-constrained installations. It employs a non-latching design and guarantees a mechanical lifecycle of at least 10 million operations, ensuring long-term reliability.

Equipped with solder terminals, it ensures secure and stable electrical connections. The RS PRO 348-762 relay conforms to recognized safety and quality standards including UL, EN, and CE certifications. The device is broadly applicable in automotive engine controls, household appliances, industrial machinery automation, medical instruments, and telecommunications systems.

The relay has a transparent polycarbonate cover for protection. Contact material is silver alloy ensuring reliable conductivity. Coil resistance is 8.2 kΩ with coil power consumption of 2W. Suitable for temperatures from -45°C to 55°C operating range.

Switching voltage supports up to 240V AC and 30V DC. Dimensions are compact at 56mm height, 35mm width, and 35mm length. Designed for non-latching operation with a mechanical life of at least 10 million operations. Applications include automotive engines, industrial machinery, medical equipment, telecommunications, and household devices.

Terminal type is solder for secure electrical connections. Standards compliance includes UL, EN, and CE approvals.

This product is ideal for industrial, automotive, commercial, and medical automation systems requiring reliable power switching capabilities. Explore more Power Relays and related electrical components in the EnvMart catalog for comprehensive solutions.
