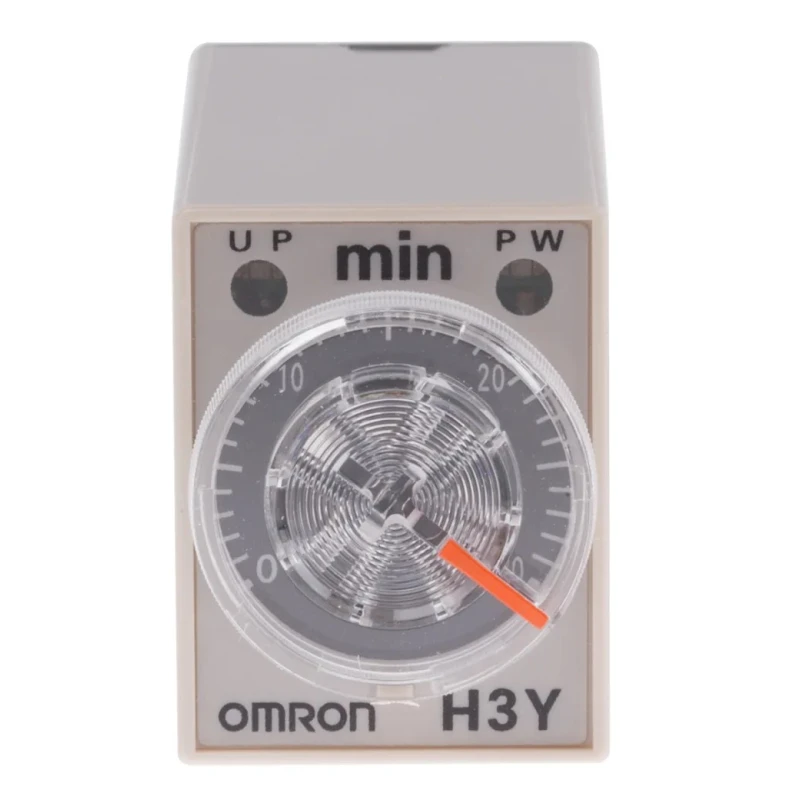

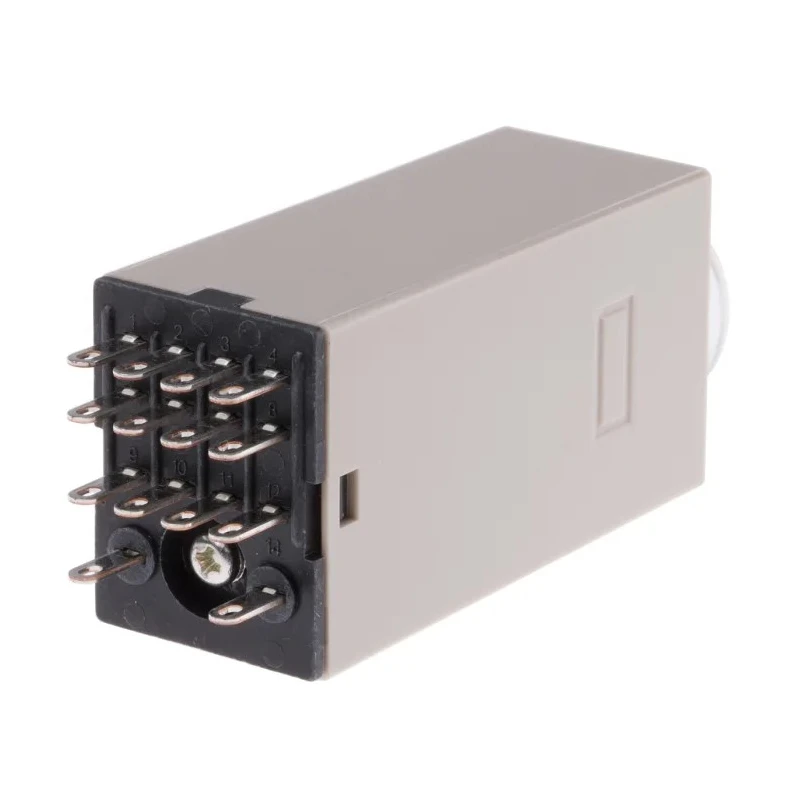

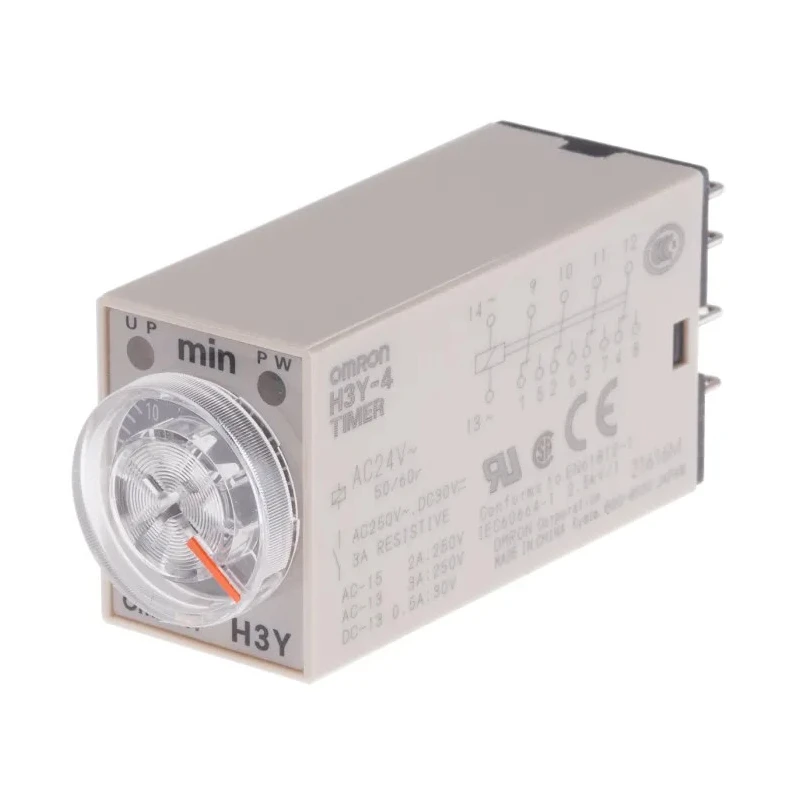

Omron DIN Rail Surface Mount Timer Relay, 4-Contact 4PDT, 125 V dc 24V ac, 1 to 30 min, ON Delay, Plug-In H3Y-4 AC24 30M

The Omron H3Y-4 AC24 30M Timer Relay offers precise time-delay control with a flexible 1 to 30 minute adjustable time range for industrial automation and control systems. Designed for DIN Rail and surface mounting, it provides reliable switching with a 4PDT (4 pole double throw) contact configuration enabling four simultaneous switching circuits.

Operating at 24 V AC and 125 V DC supply voltages, with a contact rating of 5A and switching voltages up to 250 VAC or 30 VDC, this relay supports a wide range of moderate current applications. The relay utilizes plug-in terminals for quick and secure installation on standard DIN rails, facilitating maintenance and replacement.

Its robust design includes an IP40 ingress protection rating, ensuring dust protection suitable for most industrial settings. The wide operating temperature range of -10°C to 50°C allows usage in diverse environments. Additionally, the H3Y-4 complies with rigorous standards such as UL 508, CE, CCC, Lloyds Register certifications, EN 61812-1, IEC 60664-1, and CSA C22.2 No. 14, assuring quality and safety compliance.

Common industrial applications include sequencing motor starters on manufacturing lines, staged lighting control in commercial and industrial facilities, timed valve actuations in fluid control systems, and delayed relay interlocks in electrical control panels.

Designed for ON Delay timer function with a wide, adjustable time range. Four 4PDT contacts for multi-circuit control in one relay. Offers dual supply voltage capability of 24 VAC and 125 V DC. Compact size optimized for DIN rail panel mounting with plug-in terminals.

Meets comprehensive industry certifications and approvals for reliable performance and safety. Suitable for use in industrial, manufacturing, electrical, and automation system applications.

This Omron timer relay is ideal for engineers and system integrators seeking dependable time-delay control solutions compliant with international standards. Explore the full range of Timer Relays and related control components in the Electronics & Electricals category at EnvMart.
