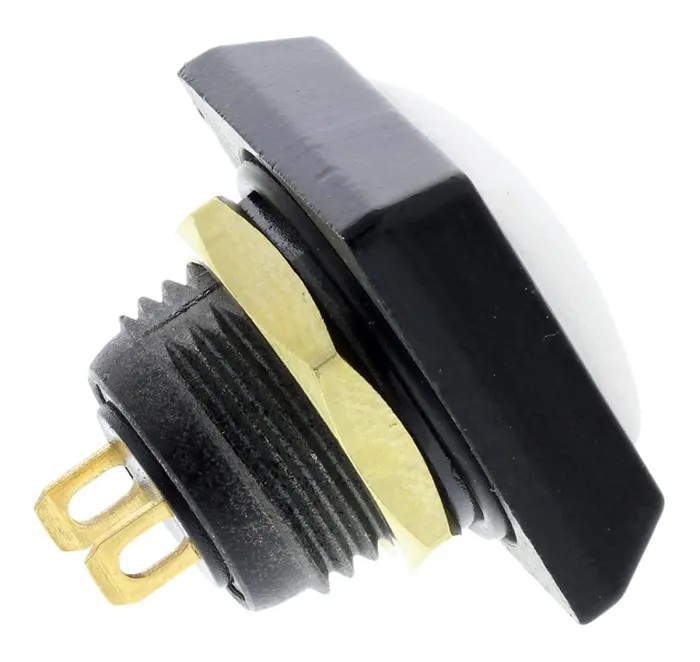

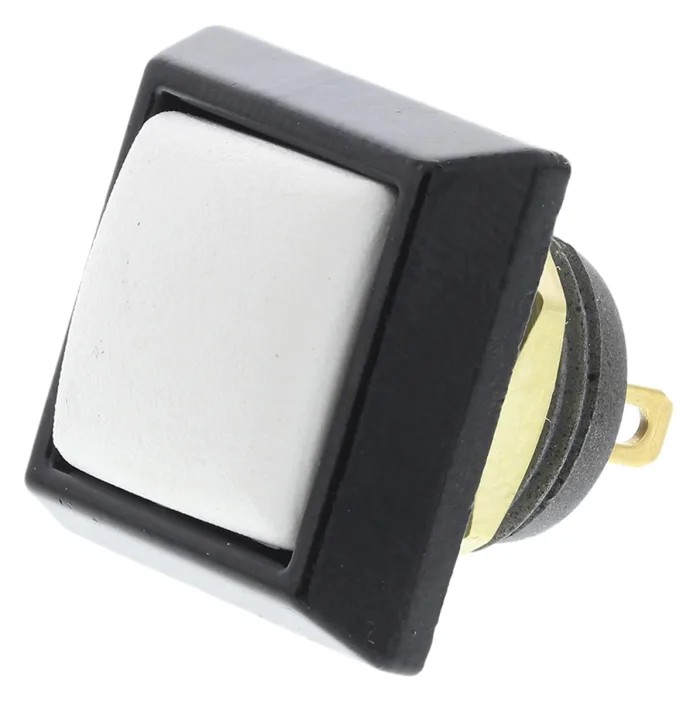

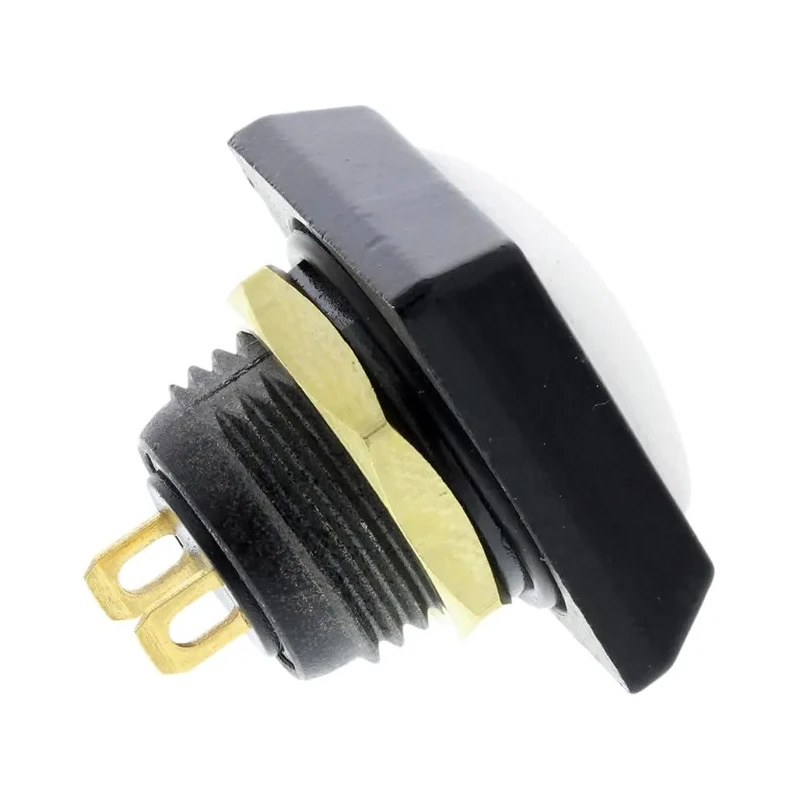

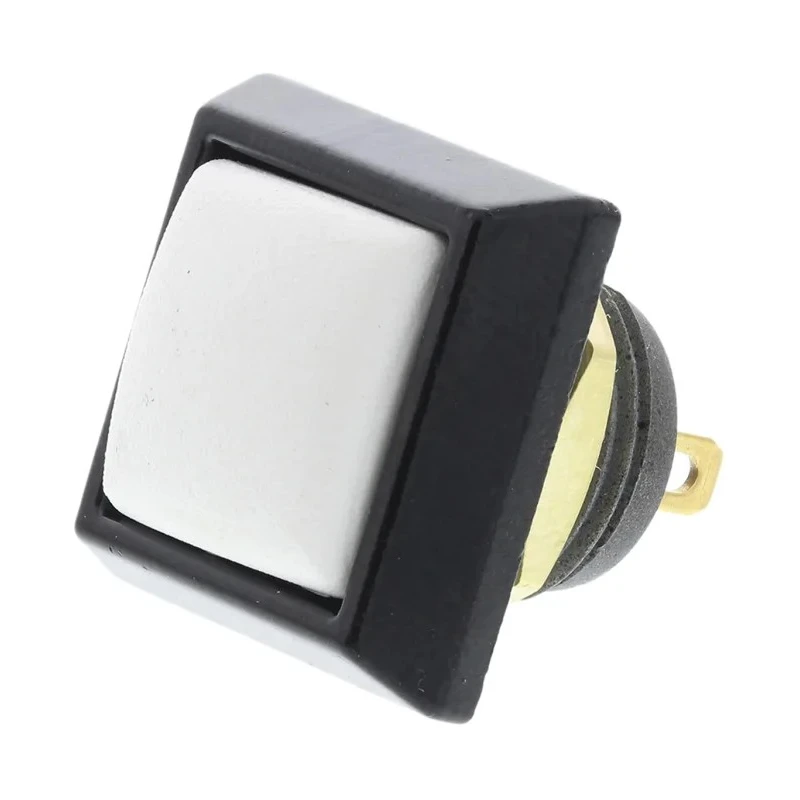

ITW Switches Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67, 125 V AC 59-214
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | ITW Switches |
| Model | 59-214 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 59 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -55°C |

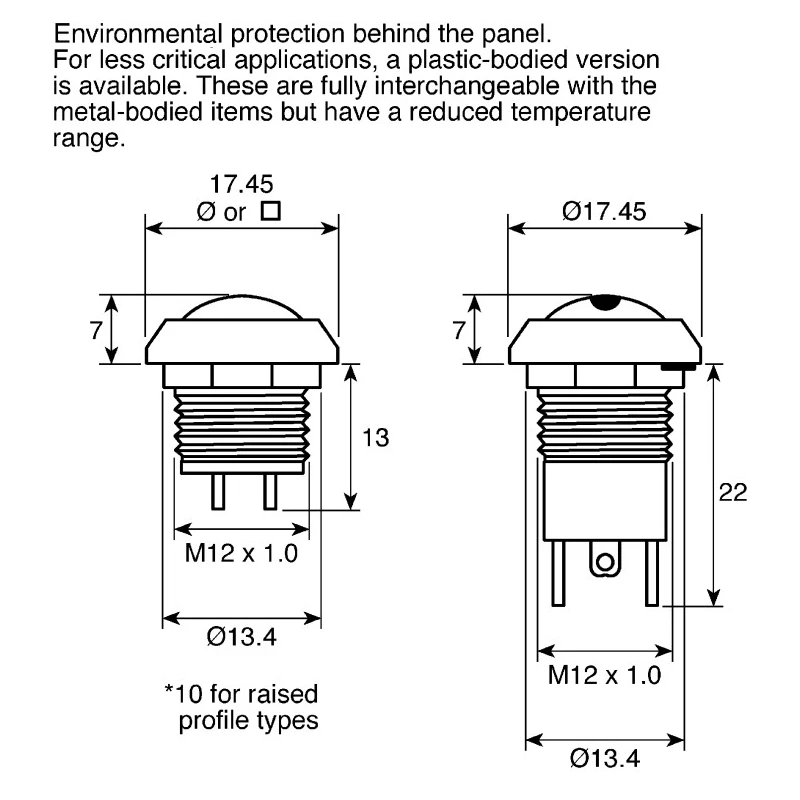

| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Contact DC Voltage | 125V |
| Actuator Style | Square |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 125V ac |
Key Features
- The switch operates momentarily with a panel mount style and square actuator.
- IP67 rated, offering dust-tight protection and resistance to temporary immersion in water.
- Supports both 125 V AC and 125 V DC voltage ratings with a 400mA contact current.
- Robust design suitable for use in communications, military, instrumentation, and mass transport controls.
- Gold contacts ensure reliable switching performance and non-spark material enhances safety.
- Wide operating temperature range from -55°C to 125°C for harsh environments.
- Illuminated with a clear LED to indicate switch status without color illumination options.
- Constructed with either zinc alloy or hard-wearing polybutylene terephthalate (PBT) for ruggedness.
Product Description
ITW Switches 59-214 Miniature Push Button Switch provides a durable and reliable momentary switching solution designed for panel mounting applications. Featuring a precise 13.6 mm cutout, this switch uses an SPST contact configuration ideal for on-off control in industrial and electronic systems.
Equipped with a square white actuator and a clear LED, the switch is rugged and sealed to IP67 standards, making it dust-tight and able to withstand temporary immersion in liquids. This ensures dependable operation even in demanding environmental conditions.
The switch supports electrical ratings of 125 V AC and 125 V DC with a switch contact current of 400mA. It is suitable for a wide range of industrial applications including communications equipment, military devices, instrumentation, and transport control systems where environmental resilience is critical.
Constructed from either non-sparking zinc alloy or polybutylene terephthalate (PBT), the switch is robust and impact resistant, capable of enduring physically challenging operating environments. Gold plated contacts provide enhanced conductivity and switching reliability.
The wide operating temperature range from -55°C to 125°C ensures stable performance across various climatic conditions. The product carries UL and CSA approvals, underlining its quality and compliance with international safety standards.
Momentary switch operation with panel mount design. Sealed to IP67 standard for dust and water resistance. Compatible with 125 V AC/DC electrical ratings. Square white actuator style with clear LED illumination. Gold contacts for reliable electrical performance.
Wide temperature range: -55°C to +125°C. Suitable for harsh environments such as military and mass transport applications. Robust body options: zinc alloy or PBT. UL and CSA recognized components ensuring compliance and safety.
This miniature push button switch is an ideal choice for industrial and electronic applications requiring a high degree of ruggedness and environmental sealing. Explore more from ITW Switches and the full range of Push Button Switches available on EnvMart for advanced control and switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
This switch has an IP67 rating, making it dust-tight and resistant to temporary immersion in water.
It features an SPST (Single Pole Single Throw) contact configuration suitable for on-off control.
The required panel cutout size for this switch is 13.6 mm.
The switch has a contact current rating of 400mA.
It supports both 125 V AC and 125 V DC voltage ratings.
The switch is constructed from either zinc alloy or polybutylene terephthalate (PBT).
This model features a square white actuator.
This switch carries UL and CSA approvals, ensuring compliance with international safety standards.
The minimum operating temperature for this model is -55°C.
The terminal type for this switch is solder.
This switch is suitable for various industrial applications, including communications equipment, military devices, instrumentation, and transport control systems.
