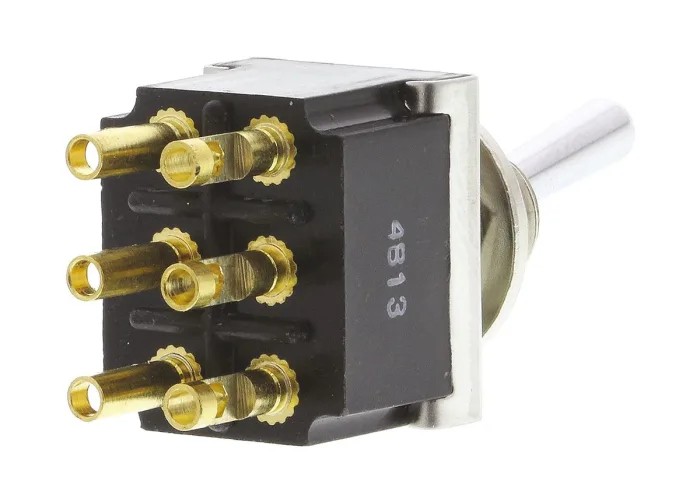

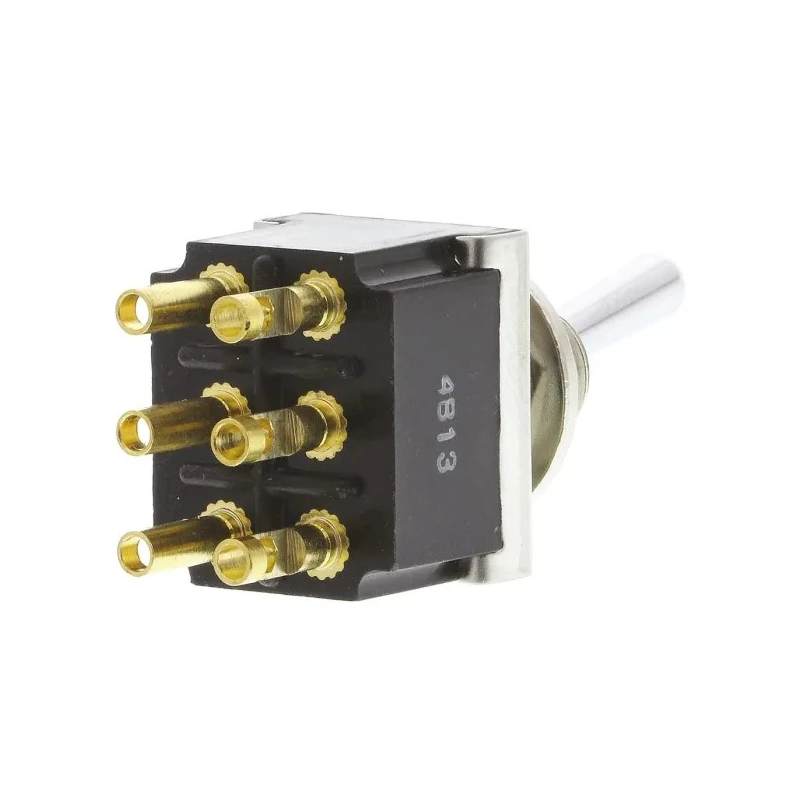

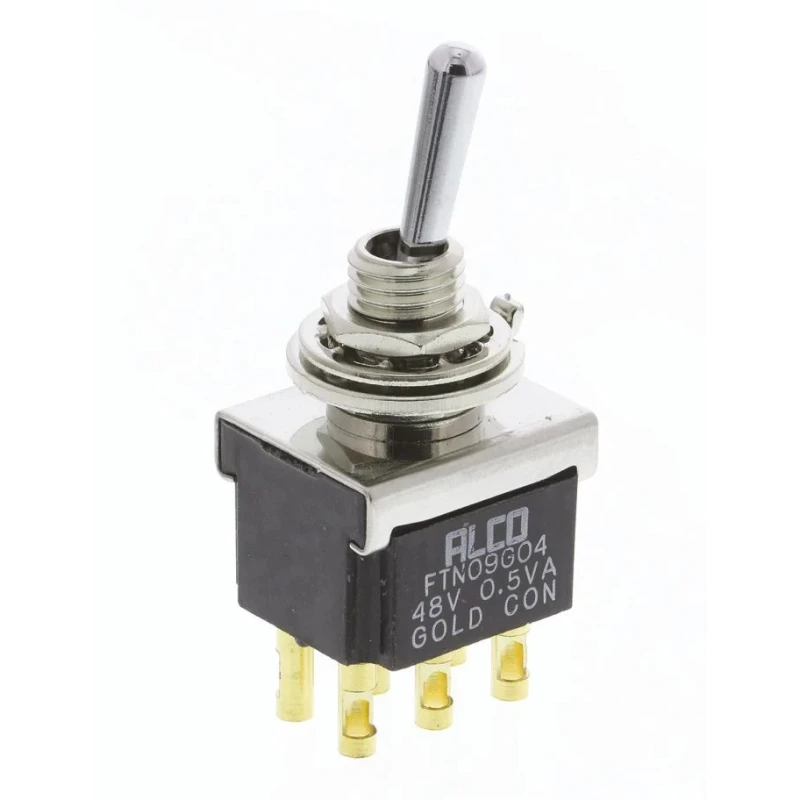

TE Connectivity Toggle Switch Panel Mount On-On DPDT Solder Terminal 12V dc 250V ac FTN09G04

TE Connectivity FTN09G04 toggle switch is a professional-grade panel mount switch designed for industrial and electronic applications requiring robust and reliable switching performance. This On-On DPDT switch is suitable for use in controlling circuits under 12V dc and 250V ac voltages, making it versatile for various automation, control panel, and electrical equipment needs.

The switch incorporates a slow make-and-break action to enhance contact reliability and minimize electrical arcing. Its chrome-plated brass actuator delivers both durability and a smooth tactile feel. The switch housing is made of glass filled polyester, ensuring electrical insulation and mechanical strength.

With IP67 and IP68 ingress protection ratings, the FTN09G04 switch offers excellent resistance against dust and water, making it reliable in harsh industrial environments. The switch features silver contacts, with gold contacts specifically applied to certain stock numbers for superior conductivity and reduced oxidation.

Designed to operate effectively between temperatures of -20°C and +70°C, this switch provides a long mechanical life rated up to 50,000 cycles. It is compliant with major safety and quality standards including CSA, RoHS, and UL 94V-0, certifying its suitability for professional use.

The solder bucket terminals facilitate secure and straightforward soldering connections, and care should be taken to avoid overheating the switch assembly during soldering procedures. The panel cutout for mounting the switch measures 6.2 mm, and the actuator length is 10.5 mm, making it compatible with standard panel designs.

Slow make-and-break action enhances contact reliability. Chrome-plated brass actuator ensures durability and smooth operation. Waterproof with IP67 and IP68 ratings for harsh conditions. Silver and gold contacts provide high conductivity and longevity.

Supports switch contact current of 14mA with 50,000 mechanical cycles lifespan. Glass filled polyester case for insulation and robustness. Meets CSA, RoHS, and UL 94V-0 standards for quality and safety. Panel cutout size of 6.2 mm and actuator length of 10.5 mm for standard mounting.

Operating temperature range from -20°C to +70°C.

This toggle switch is ideal for applications in electronics, industrial automation, control panels, and other electrical assemblies requiring reliable, durable switching components. Explore more professional Toggle Switches and components on EnvMart for your industrial and electronic projects.
