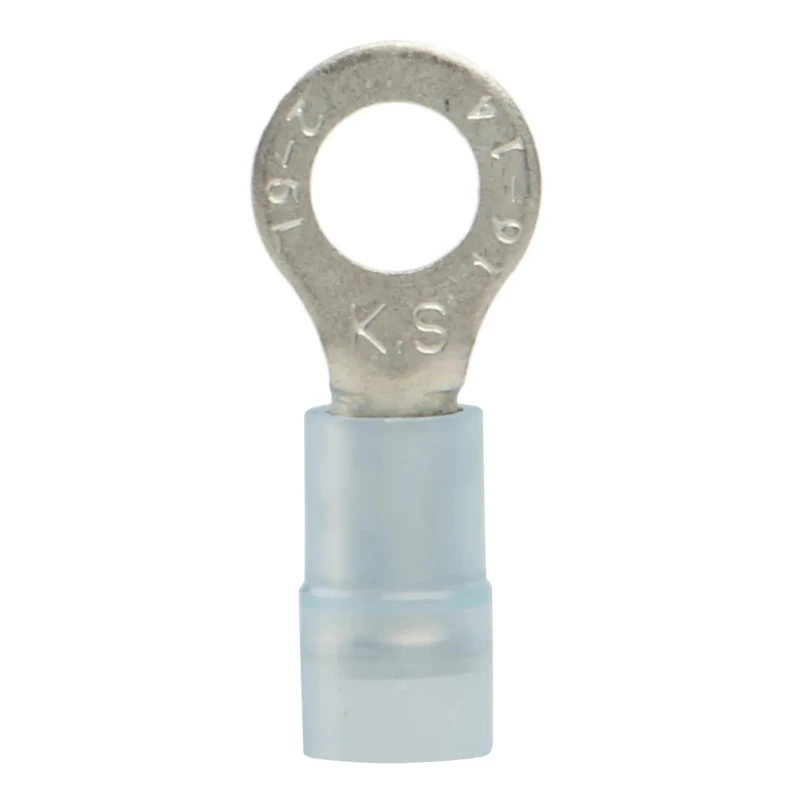

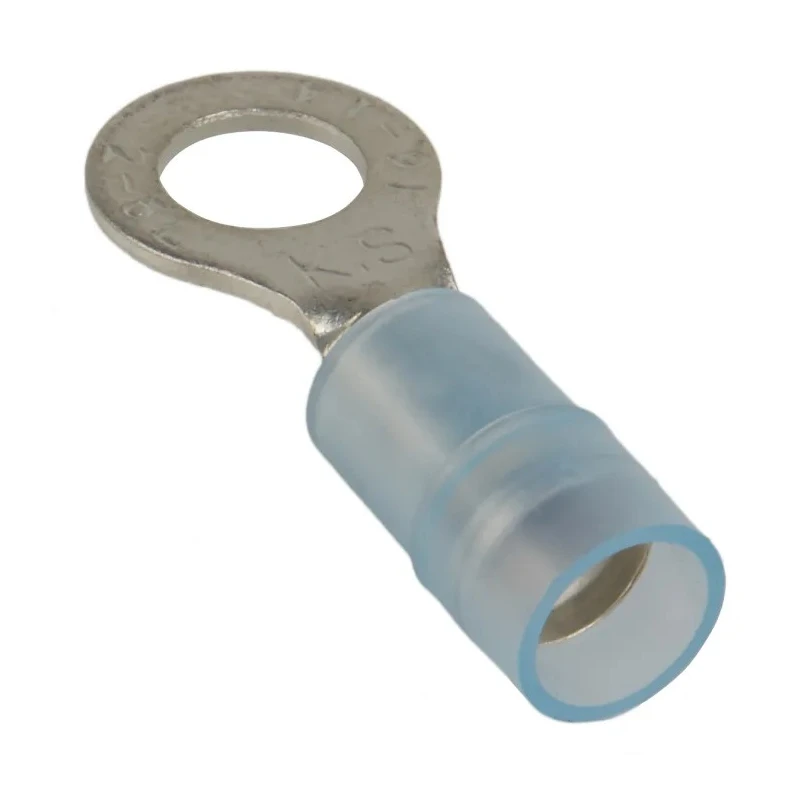

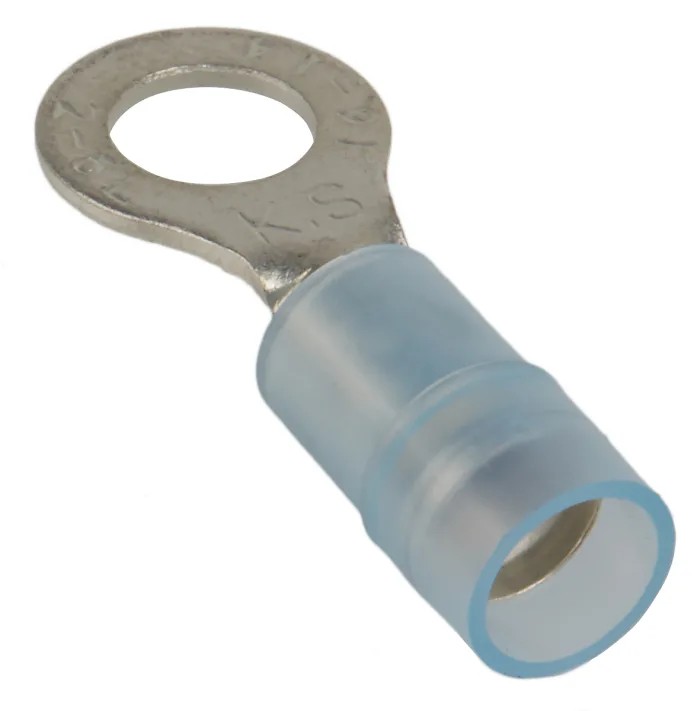

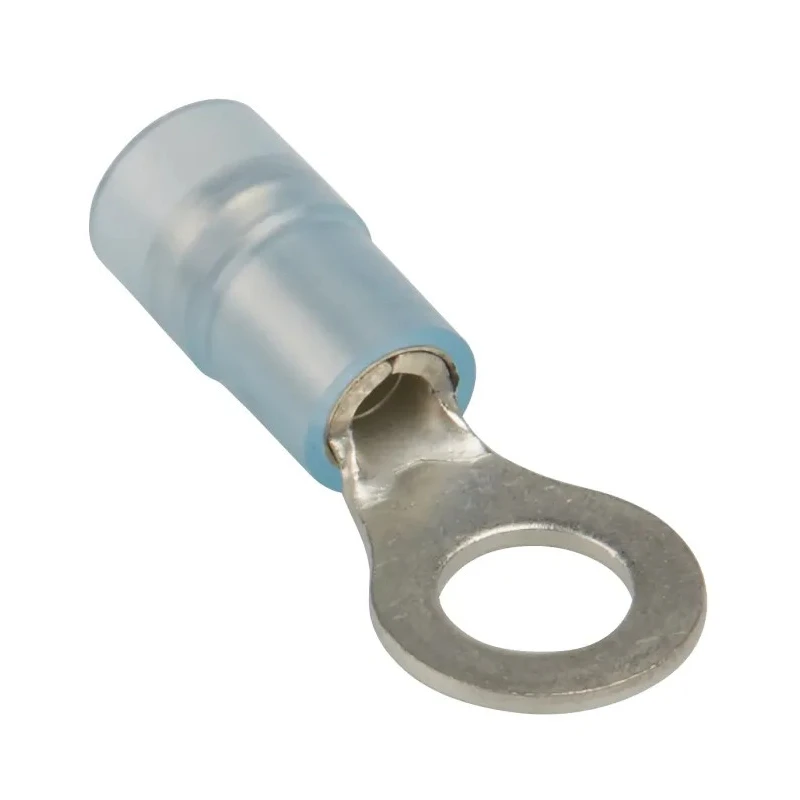

RS PRO Insulated Ring Terminal, M5 Stud, Size 16 AWG to 14 AWG, Nylon Insulation, Copper Tin Plated 267-3745
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| THICKNESS | 0.8mm |
| Model | 267-3745 |
| Insulation | Insulated |
| Overall Length | 22.8mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Per Unit, RS stock no | 267-3745 |
| RS stock no | 270-7633 |
| Outer Ring Diameter | 9.5mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | M5 |
| RS PRO Insulated Ring Terminal, M5 Stud Size 16 AWG 14 AWG Wire Size, BlueBrand | RS PRO |
Key Features
- Copper contact material offers high electrical conductivity.
- Tin plating ensures corrosion resistance and improved conductivity.
- Double crimp design with internal copper sleeve strengthens the joint and provides vibration resistance.
- Nylon insulation protects the terminal and provides easy wire size identification.
- Suitable for use in heavy industrial and automotive applications.
- Maximum operating temperature up to 105°C.
- Blue color-coded insulation for quick size identification.
- Overall length measures 22.8 mm with 9.5 mm outer and 5.3 mm inner ring diameters.
Product Description
RS PRO 267-3745 insulated ring terminal is engineered for reliable electrical connections using M5 studs and wire sizes ranging from 16 AWG to 14 AWG. The terminal features a copper contact body for excellent electrical conductivity, enhanced with tin plating to resist corrosion and increase durability.
Its robust double crimp design incorporates an internal copper sleeve to reinforce the barrel, providing a secure crimp joint that withstands high vibration and mechanical stress. The blue nylon insulation offers protection against abrasion and impact while simplifying wire size identification.
This ring terminal measures 22.8 mm in overall length with an outer ring diameter of 9.5 mm and inner ring diameter of 5.3 mm, designed to fit M5 studs precisely. The terminal performs reliably at temperatures up to 105°C and is ideal for use in automotive wiring systems, industrial control equipment, communication devices, and domestic appliances.
The insulated crimp ring terminals from RS PRO ensure secure, high-quality cable connections in demanding industrial and electrical applications requiring vibration resistance and durability.
Copper contact material offers high electrical conductivity. Tin plating ensures corrosion resistance and improved conductivity. Double crimp design with internal copper sleeve strengthens the joint and provides vibration resistance.
Nylon insulation protects the terminal and provides easy wire size identification. Suitable for heavy industrial and automotive use. Maximum operating temperature of 105°C for reliable performance. Blue color-coded insulation aids quick size recognition.
Compact dimensions for secure M5 stud fitment.
This product is part of the RS PRO series and represents a premium insulated Ring Terminal solution for electrical wiring needs. Browse the Electronics & Electricals category at EnvMart for related high-quality wire terminal components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 105°C.
This model is suitable for wire sizes ranging from 16 AWG to 14 AWG.
The overall length of this insulated ring terminal measures 22.8 mm.
The outer ring diameter is 9.5 mm and the inner ring diameter is 5.3 mm.
The contact material of this terminal is copper, which is tin plated for corrosion resistance.
This terminal features nylon insulation, which protects the terminal and aids in wire size identification.
Yes, this terminal is suitable for heavy industrial and automotive applications.
This ring terminal is designed to fit M5 studs.
The minimum operating temperature for this model is -40°C.
The double crimp design, along with an internal copper sleeve, strengthens the joint and provides resistance to vibration and mechanical stress.
The insulation of this terminal is blue, which allows for quick size identification.
This insulated ring terminal is manufactured in Taiwan.
