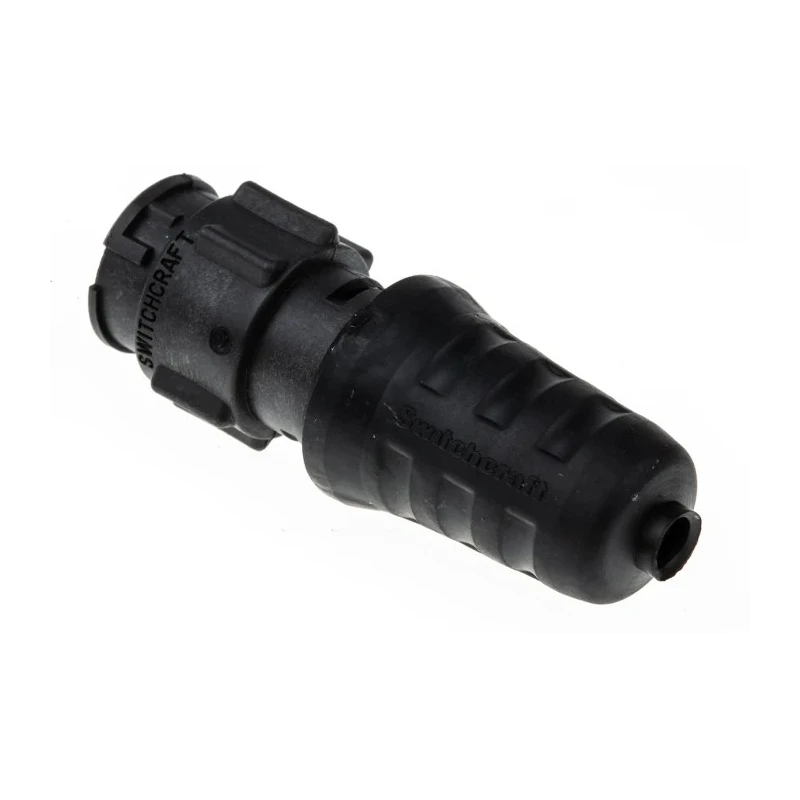

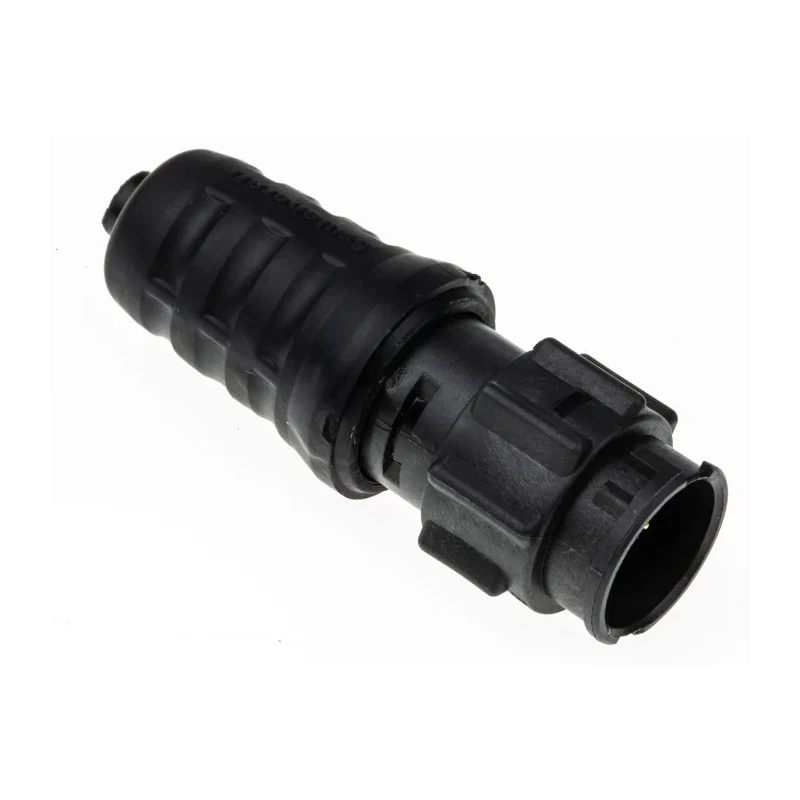

Switchcraft Circular Connector, 2 Contacts, In-Line Plug, Male, IP68/IP69K, 250V, 7.5A, Solder Termination, EN3L2MX
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Switchcraft |
| Orientation | Straight |
| Current | 7.5A |
| Model | EN3L2MX |
| IP Rating | IP68, IP69K |
| Mount Type | In-Line |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | EN3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- This connector features a thermoplastic rubber housing with gold-plated copper contacts for reliable conductivity.
- The bayonet locking mechanism ensures secure and easy mating and unmating.
- Solder cup termination type supports cables from 4.6mm to 6.73mm diameter.
- Operating temperature ranges from -40°C to 65°C for various industrial environments.
- The straight body orientation and mini weather-tight design provide superior leakage protection.
- Suitable for applications in marine electronics, instrumentation, medical data carts, transportation, and military.
- The integral O-ring and gasket design enhance sealing performance in hostile environments.
Product Description
Switchcraft EN3L2MX circular connector is a high-quality, 2-contact male in-line plug designed for industrial and commercial electronics requiring robust and reliable connections. Rated for 250VAC/DC voltage and 7.5A current, this connector meets IP68 and IP69K protection ratings, making it ideal for use in harsh and wet environments.
The connector features a thermoplastic rubber housing combined with gold-plated copper alloy contacts to provide excellent corrosion resistance and optimal electrical conductivity. It incorporates a bayonet locking mechanism along with an integral O-ring and gasket seal to ensure secure and waterproof connections suitable for process control, marine, medical instrumentation, transportation, and military applications.
Solder termination supports cable diameters between 4.6mm and 6.73mm. The straight body design favors ease of use in constrained panel or cable mount environments and includes a strain relief boot backshell that fits over the rear of the connector, adding mechanical protection for cables up to 6.7mm in diameter.
Operating temperature ranges from -40°C to 65°C, ensuring dependable performance under variable climatic conditions. Thermoplastic housing improves durability and insulation. Gold contact plating enhances corrosion resistance and signal fidelity.
Bayonet locking allows quick and secure mating. IP68 and IP69K certification guarantees protection against dust and high-pressure water jets. Mini weather-tight design ensures low part count and easy servicing. Integral O-ring and gasket sealing for hostile industrial environments.
Solder cup termination for stable electrical connection.
This connector is part of Switchcraft's EN3 series, a widely utilized range of Industrial Circular Connectors with proven reliability. It is suited for diverse industrial electronic systems, including GPS devices, medical carts, military equipment, and transport communications.
Explore the full Switchcraft EN3 series for compatible cable and panel mount connectors, replacement parts, and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Switchcraft EN3L2MX connector is rated for 250V and 7.5A.
This connector has IP68 and IP69K ratings, providing protection against dust and high-pressure water jets.
It operates effectively within a temperature range of -40°C to 65°C.
The EN3L2MX features solder termination, which supports cable diameters between 4.6mm and 6.73mm.
The housing is made of thermoplastic rubber, and the contacts are gold-plated copper for enhanced conductivity and corrosion resistance.
The bayonet locking mechanism allows for quick and secure mating and unmating of the connector, ensuring a reliable connection.
This model has a straight body orientation and is classified as a standard size connector.
It is suitable for various applications including marine electronics, medical instrumentation, transportation, and military use.
Yes, it includes an integral O-ring and gasket design that enhances sealing performance in hostile environments.
This connector is designed for in-line mounting, making it versatile for different installation scenarios.
The country of origin for this connector is the United States.
This model is part of the Switchcraft EN3 series of industrial circular connectors, known for their reliability.
