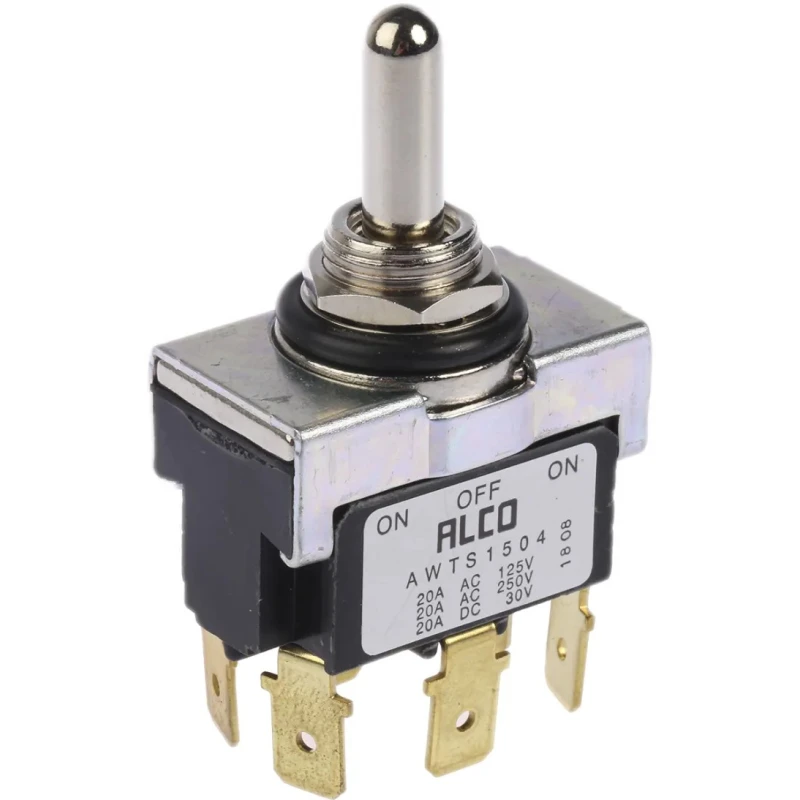

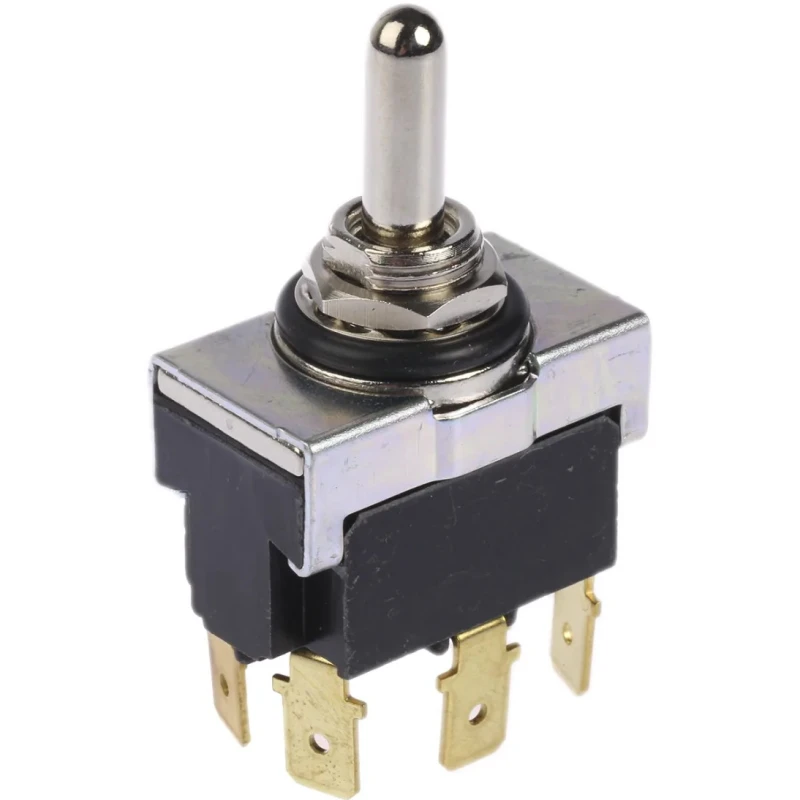

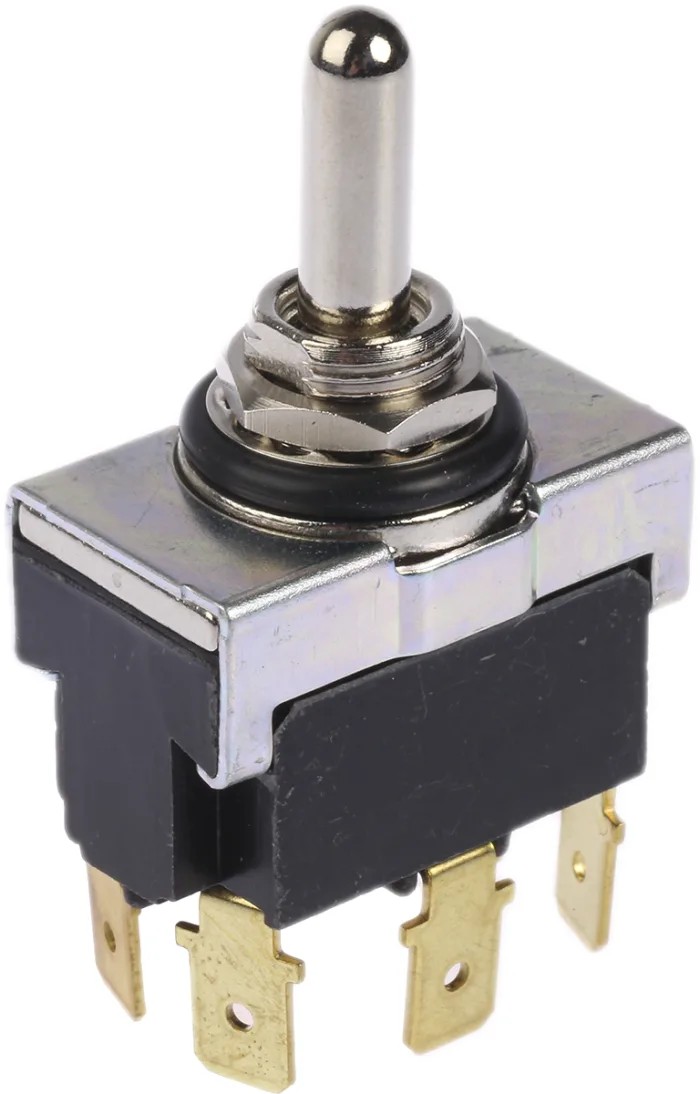

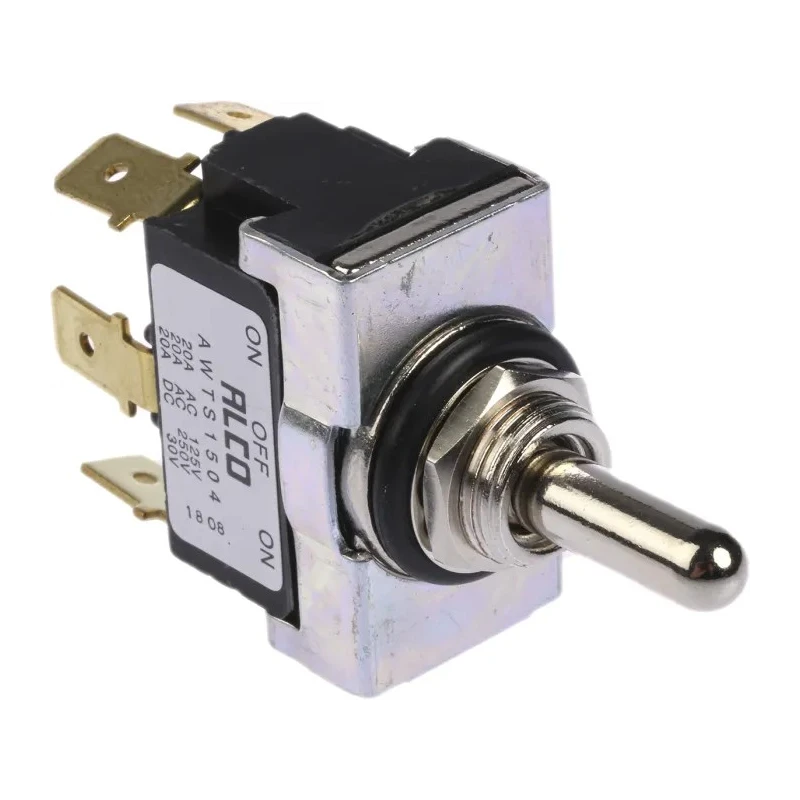

TE Connectivity Toggle Switch Panel Mount On-Off-On DPDT Tab Terminal 30 V dc 250 V ac AWTS1504
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | AWTS1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- Panel mount configuration for secure installation.
- Double Pole Double Throw (DPDT) contact configuration.
- On-Off-On switch operation with momentary on positions.
- Silver plated contacts sealed to IP67 rating for water and dust resistance.
- Brass actuator with 17.5 mm length for durability.
- Rated for 20A switch contact current.
- Mechanical life rated at 40,000 cycles for reliable operation.
- Operates within -20°C to 70°C temperature range.
Product Description
TE Connectivity AWTS1504 Toggle Switch is a robust panel mount switch with an On-Off-On configuration, equipped with a Double Pole Double Throw (DPDT) contact configuration. It is designed for electrical control applications requiring reliable switching and durability, rated at 30 V dc and 250 V ac contact voltages.
The switch features silver plated contacts sealed to IP67 standards, ensuring protection against dust and water ingress, making it suitable for harsh industrial environments. It employs a brass actuator with a length of 17.5 mm, paired with a glass-filled polyester case, combining strength and insulation.
It supports a contact current of 20A and offers a mechanical life of 40,000 cycles, assuring long-lasting and dependable performance. The switch operates effectively in temperatures ranging from -20°C to 70°C, suitable for varied industrial and commercial environments.

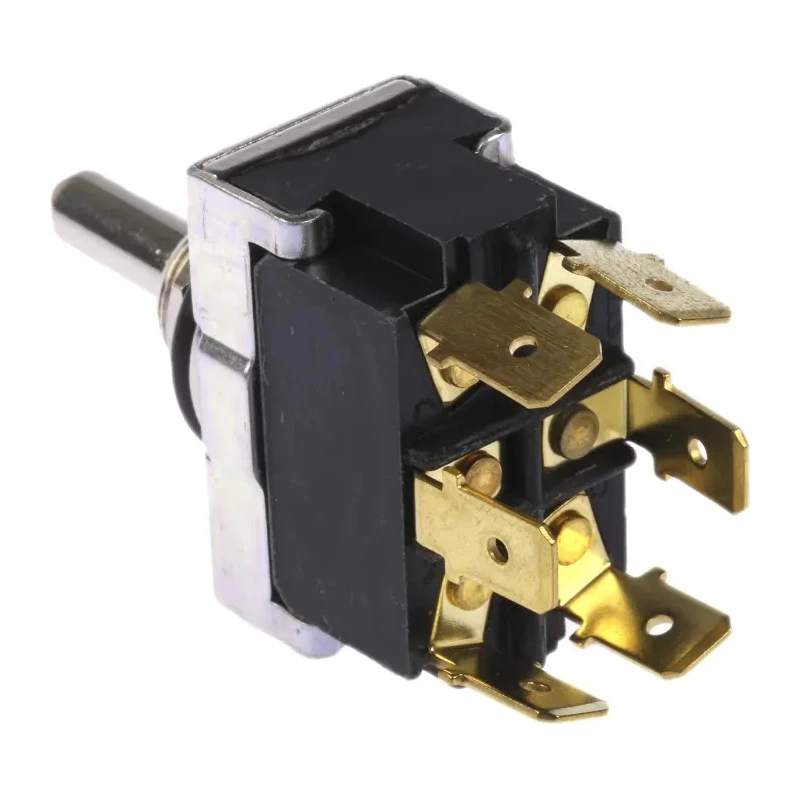

Connections are facilitated through 1/4 inch (250 in.) tab terminals, allowing easy integration with panel wiring setups. The (On)-Off-(On) switch configuration includes momentary on positions for biased operation, enhancing its versatility in control applications.
Panel mount type designed for secure fitting into electrical panels. Robust brass actuator for smooth operation and longevity. Waterproof IP67 rating protects against dust and liquid ingress. Silver-plated contacts optimize current flow and reduce corrosion.
Mechanical durability supported by 40,000 operational cycles. Rated for up to 20A current and 30 V dc / 250 V ac voltage levels. Wide operating temperature range from -20°C to 70°C provides flexibility. Suitable for automation, industrial machinery, and electrical distribution use.
Tab terminal connections for simple and secure wiring.
This switch is ideal for use in industrial electrical control panels, automation systems, machinery control, HVAC systems, and other applications requiring reliable, durable switching solutions. It is RoHS compliant and recognized under UL and CSA standards, ensuring compliance with safety and environmental regulations.
Explore more TE Connectivity products in the Electronics & Electricals category for switches, sensors, and connectors suited for professional and industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch is rated for a maximum contact current of 20A.
It can handle contact voltages of 30 V dc and 250 V ac.
This model has an IP67 rating, providing protection against dust and water ingress.
It has a mechanical life rated at 40,000 cycles, ensuring reliable operation over time.
The switch operates effectively in temperatures ranging from -20°C to 70°C.
It features 1/4 inch (250 in.) tab terminals for easy connection.
The actuator is made of brass and has a length of 17.5 mm.
It features a Double Pole Double Throw (DPDT) contact configuration.
The switch configuration is On-Off-On, with momentary on positions.
Yes, it is RoHS compliant and recognized under UL and CSA standards.
It is suitable for industrial electrical control panels, automation systems, machinery control, and HVAC systems.
This model is designed for panel mount installation, ensuring a secure fit in electrical panels.
