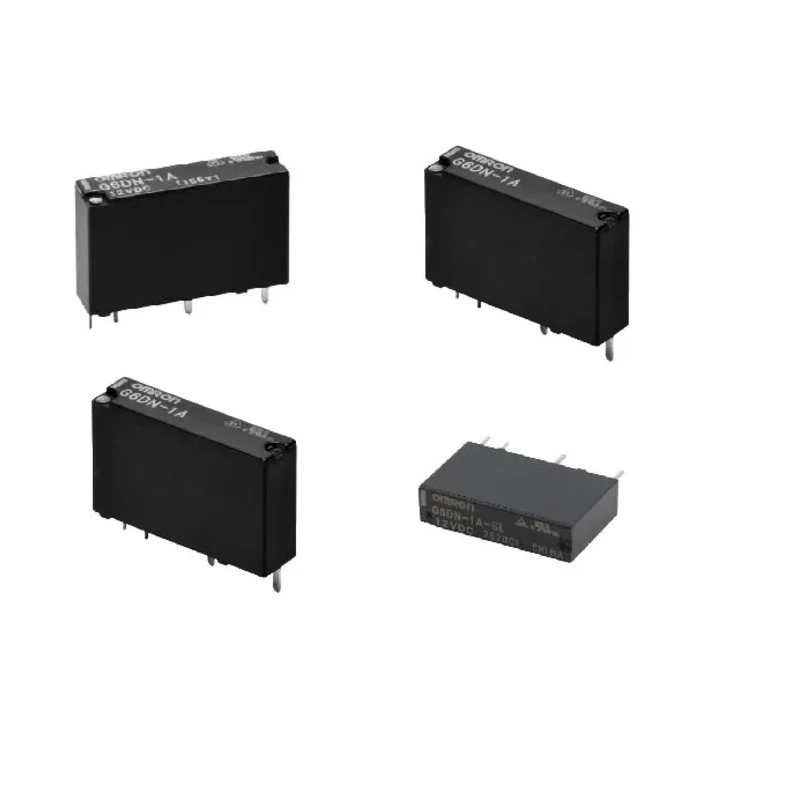

Omron PCB Power Relay 12V DC Coil, 1A Switching Current, SPST, Screw Terminal, G6DN-1A-SL DC12

Omron G6DN-1A-SL DC12 PCB power relay is designed for industrial and electronic applications requiring reliable switching with low power consumption and compact form factor. Featuring a 12V DC coil and single pole single throw (SPST) contact configuration, it supports switching currents up to 1A with silver alloy contacts for enhanced durability and conductivity.

This relay is ideal for printed circuit board (PCB) mounting and provides screw terminals to ensure secure electrical connections. The coil power consumption is low at 140mW, making it suitable for energy-efficient designs. It supports switching AC voltages up to 240V and DC voltages up to 60V, accommodating various control and signal switching use cases.

With operational temperature range from -40°C to 70°C, the relay delivers consistent performance even under harsh environmental conditions. Its compact dimensions of 50mm length, 15mm height, and 10mm width enable integration into tight spaces on control systems, automation equipment, and electronic instrumentation.

The coil resistance is rated at 1.3 kiloohms corresponding to a coil current of approximately 9.2mA. Contact resistance is low at 100 milliohms ensuring minimal signal loss during switching. The product meets RoHS compliance standards, affirming it is manufactured with environmentally safe materials.

Typical applications include industrial automation, power control circuits, consumer electronics, HVAC systems, and laboratory testing equipment. This relay provides a dependable switch solution for controlling low power loads and isolating control circuits with long service life and stable electrical characteristics.

The relay uses a silver alloy contact material ensuring high contact reliability. Compatible with PCB mount and features screw terminals for secure connections. Operates efficiently with low coil power consumption of 140mW at 12V DC.

Designed for switching voltages up to 240V AC and 60V DC applications. Operates within a temperature range from -40°C to 70°C for robust environmental resilience. The compact relay measures 50mm in length, 15mm in height, and 10mm in width, suitable for space-constrained applications.

Has a coil resistance of approximately 1.3 kiloohms and coil current of 9.2mA. Ensures low contact resistance of 100mΩ for efficient performance. Complies with RoHS standards confirming environmental safety and quality. Explore EnvMart's wide selection of Power Relays for industrial electronics and automation systems to find the perfect component to meet your design requirements.
