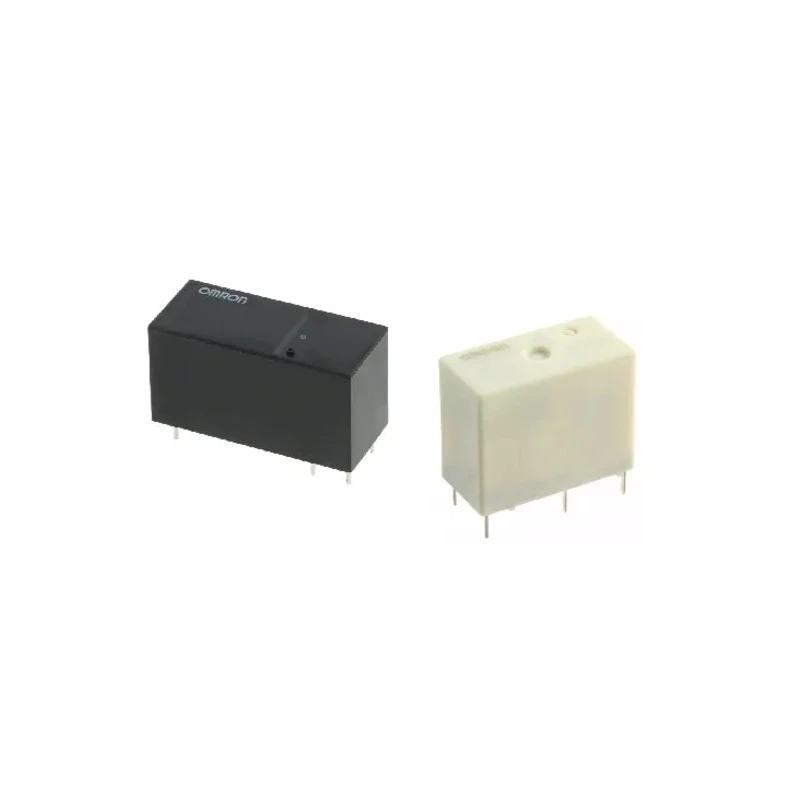

Omron PCB Relay 12V DC Coil 16A Switching Current SPST G5RL-U1A-E DC12

Omron G5RL-U1A-E DC12 PCB Relay offers a robust solution for PCB-based power relay requirements with a coil voltage of 12V DC and contact switching capacity of 16A. The relay uses a single-pole single-throw (SPST) contact configuration, providing reliable switching performance in various industrial and automation applications.

Designed with a silver alloy contact material, it ensures low contact resistance of 100mΩ for efficient electrical conduction. The coil resistance is 240Ω and coil power consumption is a minimal 140mW, optimizing energy use while maintaining high operational reliability.

Its operating temperature range is wide, supporting ambient conditions from -40°C up to 85°C, making it suitable for demanding environments. The relay is built with a creepage distance of 8mm between coil and contacts, enhancing insulation and preventing electrical leakage.

The relay mounts easily onto printed circuit boards using PCB pin terminals and features compact physical dimensions of 50mm length, 10mm width, and 15mm height to save board space.

This model complies with major international certifications such as CQC, CSA (File No. LR31928), VDE, and UL (File No. E41643), ensuring compliance with safety and quality standards in industrial and commercial installations.

Features a low profile design suitable for power relay applications. Coil voltage rated at 12V DC with coil resistance of 240Ω. Switching current capacity of 16A and switching voltages up to 250V AC and 24V DC. High-quality silver alloy contacts provide reliable conductivity and low contact resistance.

Operates effectively within temperature range of -40°C to 85°C. Designed with 8mm creepage distance for insulation between coil and contacts. PCB pin terminal type for easy and secure PCB mounting. Complies with standards including CQC, CSA, VDE, and UL certifications.

Compact dimensions of 50mm length, 10mm width, and 15mm height for efficient PCB space usage.

This Omron PCB relay is ideal for industrial automation, electrical control systems, power distribution boards, and manufacturing equipment where reliable switching and space-saving design are essential. It is suitable for use in laboratory, commercial, and industrial environments requiring stable and certified relay solutions.
