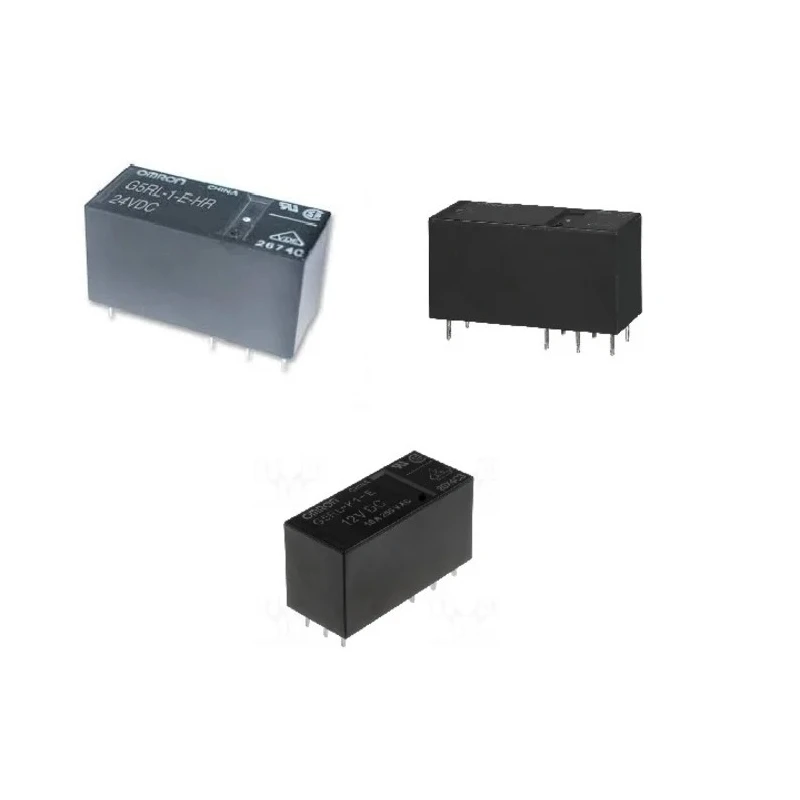

Omron PCB Power Relay 5V DC Coil, 16A Switching Current, SPDT Contact Configuration G5RL-1-E-HR DC5

Omron G5RL-1-E-HR DC5 PCB Power Relay is a high-quality industrial relay designed for reliable electrical switching in automation and control systems. It operates on a coil voltage of 5V DC with a coil resistance of 62.5 ohms and a power consumption of 400mW. The relay features a SPDT contact configuration, enabling single pole double throw switching capabilities suited for complex circuits.

This relay can handle a switching current of up to 16A and supports both 24V DC and 24V AC switching voltages, making it adaptable for diverse applications in power relay use cases. Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height allow easy integration into PCB assemblies where space constraints matter.

Built with silver alloy contacts that have a low contact resistance of 100mΩ, the relay ensures excellent conductivity and reliable switching with a creepage distance of 8mm between coil and contacts for safety. It operates efficiently within an ambient temperature range of -40°C to 85°C, suitable for industrial, manufacturing, electrical, and automation environments.

The G5RL series relay complies with RoHS directives, confirming adherence to environmental and safety standards. Its solder terminal type and PCB mount design facilitate stable mounting and long-term durability in machinery and electronic equipment.

The relay originates from China and comes new, ready for use in varied fields including industrial automation, electrical control panels, and signal conditioning. Operates at a coil voltage of 5V DC for controlled switching.

Features a single pole double throw (SPDT) contact configuration for versatile switching needs. Supports a switching current of 16A for robust power relay applications. Designed for PCB mounting with solder terminal type ensuring durable installation.

Coil resistance is 62.5 ohms, with coil power consumption at 400mW for energy efficiency. Silver alloy contact material with a contact resistance of 100mΩ ensures reliable conductivity. Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm for space-saving PCB design.

Operating temperature range from -40°C to 85°C provides suitability for various environments. Complies with RoHS standards ensuring environmental safety and quality. Explore the wide range of relays at EnvMart for industrial and electronic solutions.
