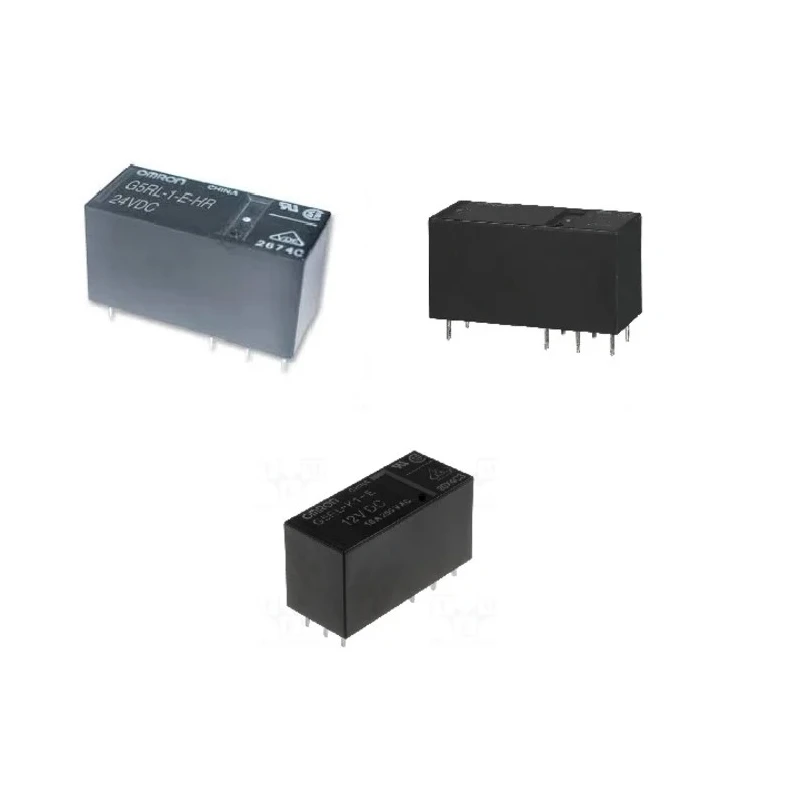

Omron PCB Power Relay 12V dc Coil 16A Switching Current SPDT G5RL-1-E-HR DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E-HR DC12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 400mW |
Key Features
- This relay is designed for PCB mounting with solder terminal type for secure connections.
- It operates within a temperature range from -40°C to 85°C, ensuring versatility in different environments.
- The coil resistance is precisely 360 ohms, drawing a coil current of 33.3 mA.
- Switching AC and DC voltages are rated at 24V each, supporting diverse circuit needs.
- Silver alloy coated contacts provide reliable conductivity and durability.
- The relay's compact dimensions measure 29mm length, 12.7mm width, and 15.7mm height.
- Coil power consumption is low at 400 mW, promoting energy-efficient operation.
- The device complies with RoHS standards, ensuring environmentally safe use.
Product Description
Omron G5RL-1-E-HR DC12 PCB Power Relay is a high quality, low profile relay designed for industrial and commercial electronic applications requiring reliable power switching.
This SPDT relay operates with a 12V dc coil voltage and supports a switching current of 16A, making it suitable for control circuits, automation systems, and power management on PCBs.
The coil resistance of 360 ohms and coil current of 33.3 mA enable efficient coil excitation with minimal power consumption of 400 mW. Its silver alloy contact material ensures excellent electrical conductivity and resistance to wear.
Rated for switching AC and DC loads up to 24V, this relay supports versatile signal conditioning and control applications. It features solder terminals for robust PCB mounting and is engineered for operation from -40°C to 85°C ambient temperatures, suitable for demanding environments.
Compact physical dimensions of 29mm length, 12.7mm width, and 15.7mm height allow for space-efficient design integration. Manufactured in China, this relay meets RoHS compliance standards, endorsing environmental safety and restricted hazardous substances.
This relay is ideal for industrial automation, power control, and electronic instrumentation requiring dependable relay switching. Its construction supports long operational life and stable performance across wide temperature ranges.
Packaged in tubes of 100 pieces, it is practical for bulk procurement and assembly processes. Explore similar Omron relays and related power relay solutions at EnvMart for varied industrial electrical applications.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this relay is 16A, making it suitable for various control circuits and automation systems.
The coil voltage for the G5RL-1-E-HR DC12 relay is 12V DC, which is required for its operation.
This model has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for efficient space utilization on PCBs.
The relay operates within a temperature range of -40°C to 85°C, making it suitable for demanding environments.
It features PCB mounting with solder terminals for secure connections, ensuring stability in electronic applications.
The coil resistance is 360 ohms, which allows for efficient coil excitation with a coil current of 33.3 mA.
The coil power consumption is low at 400 mW, promoting energy-efficient operation during use.
The contacts are made of silver alloy, which provides reliable conductivity and resistance to wear.
It is rated for switching AC and DC voltages up to 24V each, supporting a wide range of circuit needs.
This relay complies with RoHS standards, ensuring it meets environmental safety and restricted hazardous substance regulations.
The contact configuration is SPDT (Single Pole Double Throw), allowing for versatile switching applications.
The G5RL-1-E-HR DC12 relay is manufactured in China, adhering to the specified quality and compliance standards.
