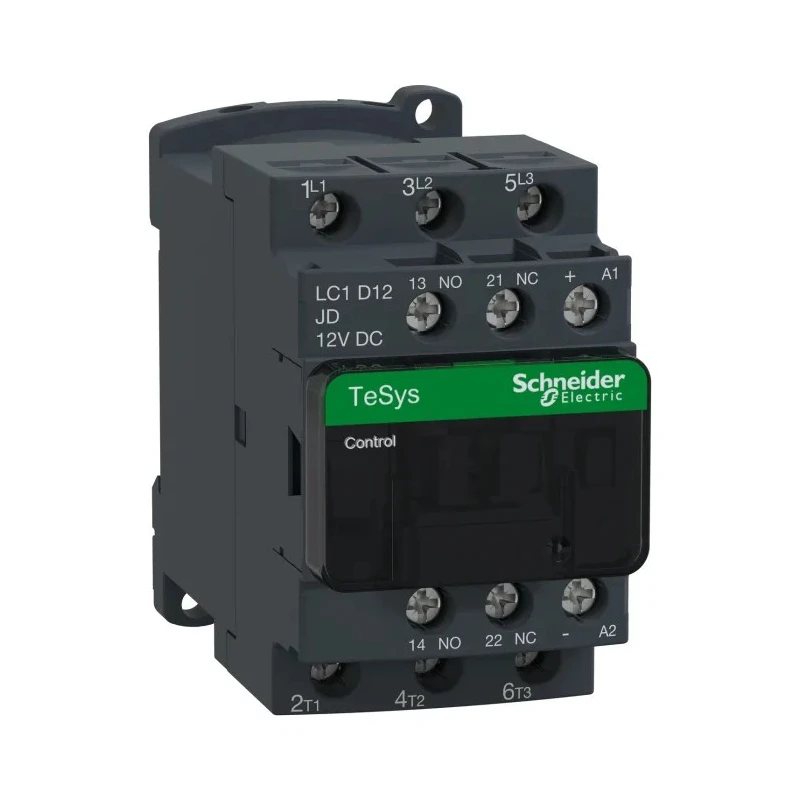

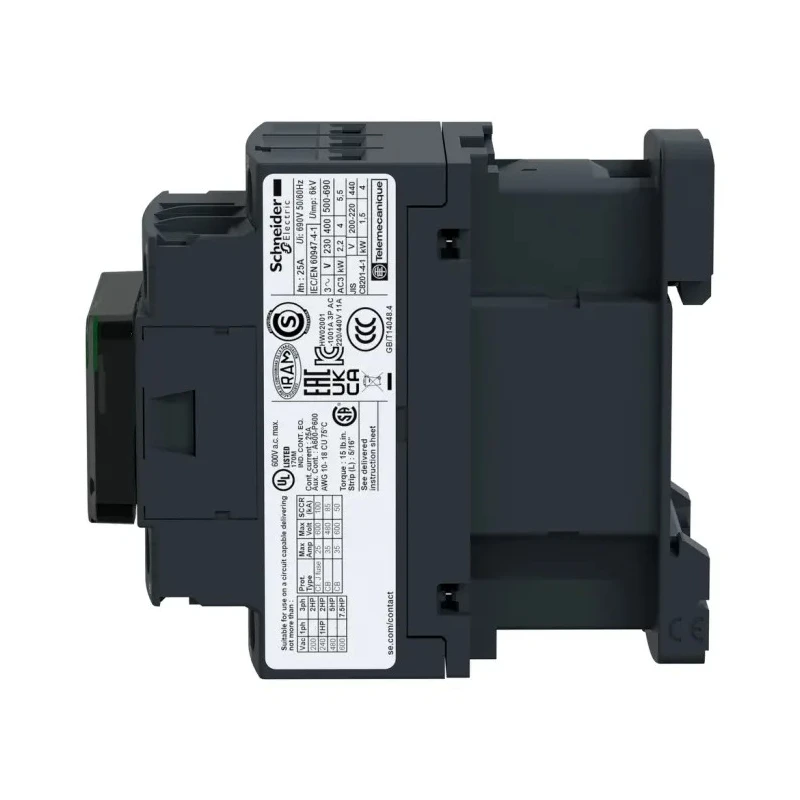

Schneider Electric 3-Pole 12 A 5.5 kW 690V AC Contactor with 12V DC Coil LC1D

Schneider Electric LC1D12JD 3-Pole Contactor with a 12V DC coil is a robust device optimized for motor control and resistive load switching in demanding industrial and automation systems. With a contact voltage rating of 690V AC and contact current of 12 A, it efficiently manages electrical loads up to 5.5 kW.

This contactor is part of the trusted TeSys LC1D series, designed to handle heavy-duty switching operations while minimizing electrical wear and maximizing reliability. It operates within a temperature range from -5°C up to +60°C, providing consistent performance in harsh conditions.

The device mounts conveniently on a DIN rail, facilitating quick and secure installation within control cabinets. Its compact dimensions (77 mm length, 45 mm width, and 93 mm depth) contribute to space-saving panel designs.

Safety is enhanced with an IP20 rated enclosure that is flame-retardant and prevents accidental contact, thereby ensuring operator protection during operation. Schneider Electric has engineered this contactor for a mechanical lifespan of up to 30 million cycles, accommodating rigorous industrial applications without failure.

The unit includes two auxiliary contacts configured as 3 NO, enabling expanded control circuit functionality. Terminal connections use screw type terminals ensuring secure and stable wiring.

Ideal for industrial sectors such as mining, pumping equipment, wastewater management, and genset controls, this contactor supports automation and control gear needs effectively. It is designed for disassembly maximizing its recyclability and environmental sustainability.

Manufactured in France, this product complies with international standards including RoHS, UL 508, CSA C22.2 No. 14, EN 60947-4-1, and IEC 60947-4, guaranteeing quality and safety compliance in global markets.

Equipped with 3 normally open main contacts for efficient power switching. Includes 2 auxiliary contacts with 3 NO configuration to facilitate control circuit integration. Designed for DIN rail mounting ensuring easy installation in control panels.

Operates reliably between temperatures of -5°C to 60°C for versatile industrial environments. Compact dimensions of 77 mm length, 45 mm width, and 93 mm depth optimize space in electrical installations. Complies with international standards including RoHS, UL 508, CSA C22.2 No. 14, EN 60947-4-1, and IEC 60947-4.

Features a flame-retardant IP20 rated enclosure providing protection against accidental contact and objects larger than 12 mm. Mechanical durability up to 30 million cycles ensures long-lasting operational reliability. Manufactured in France adhering to high quality and environmental standards.
