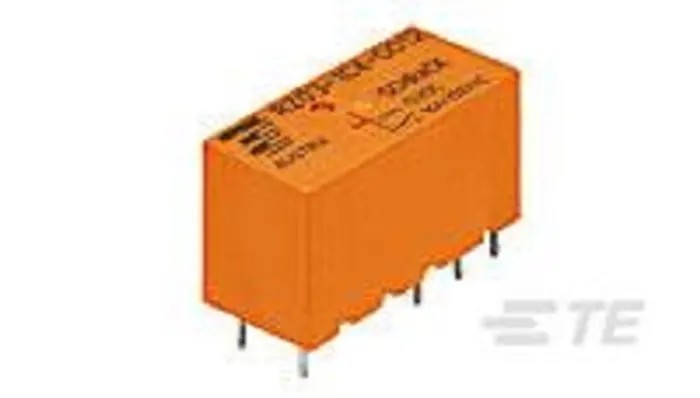

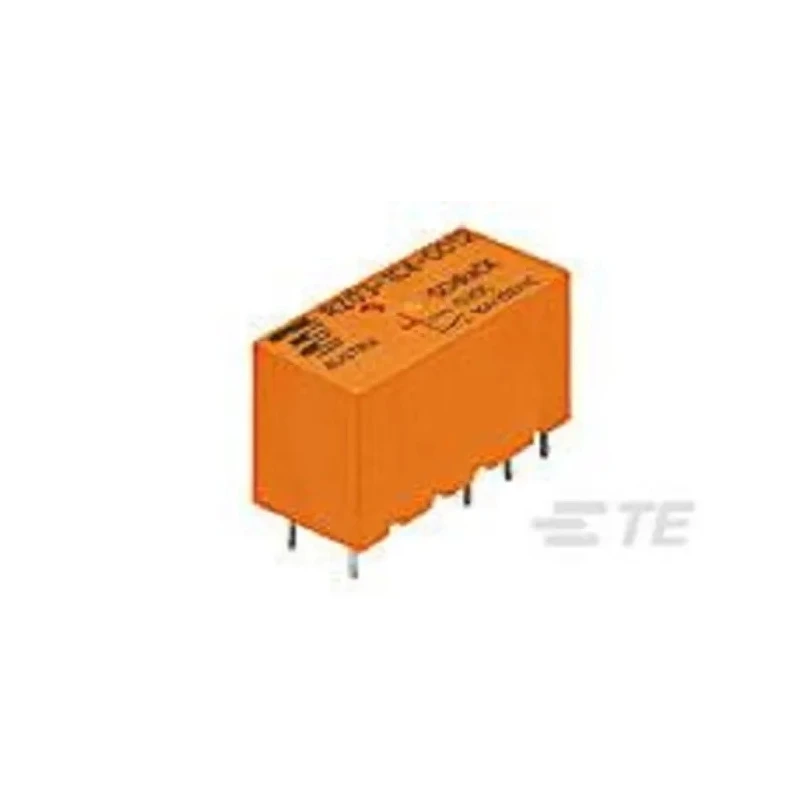

TE Connectivity PCB Monostable Relay 24V dc Coil 16A Switching Current SPDT 5-1415899-5
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mount applications with solder terminal type.
- Operates within temperature range of -40°C to 85°C.
- Features a coil resistance of 100Ω and coil power of 400mW.
- Contact material made of silver alloy ensuring low contact resistance of 50mΩ.
- Compliance with RoHS and UL standards.
- Made in Austria with a lightweight design of approximately 10 grams.
Product Description
TE Connectivity 5-1415899-5 PCB Monostable Relay is engineered for reliable switching applications in industrial, electrical, and automation contexts. It features a 24V dc coil and supports a 16A switching current with single-pole double-throw (SPDT) contact configuration. This relay is suitable for printed circuit board mounting, utilizing solder terminals for secure installation.
Designed to perform under challenging environmental conditions, it operates effectively between -40°C and 85°C. The coil has a resistance of 100Ω and power rating is 400mW, offering efficient coil operation. The relay switches DC voltage up to 30V and AC voltage up to 250V, accommodating a variety of control and power circuits.
Its compact size, measuring 20mm in length, 10mm in width, and 15mm in height, allows it to fit well in tight PCB layouts. The contact material is silver alloy, providing excellent conductivity and durability, complemented by a low contact resistance of 50mΩ to ensure consistent performance.
This relay complies with RoHS and UL standards, verifying environmental safety and product reliability. It weighs approximately 10 grams and is manufactured in Austria, affirming strict quality control and origin authenticity.
Suitable for automation, industrial control systems, and power switching applications. PCB mount relay optimized for compact electronic assemblies. Single-pole double-throw contact configuration for versatile switching. Engineered for long-term reliability with premium materials and compliance certifications.
Ambient operating temperature range supports demanding conditions. Lightweight and compact design facilitates high-density PCB layouts. Meets environmental and safety standards for industrial and commercial applications.
Explore the full range of TE Connectivity relays and components on EnvMart for dependable and efficient electronic solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 16A.
It operates with a coil voltage of 24V dc.
The relay measures 20mm in length, 10mm in width, and 15mm in height.
It features a single-pole double-throw (SPDT) contact configuration.
This model operates effectively within a temperature range of -40°C to 85°C.
The contact material is made of silver alloy, ensuring low contact resistance.
The coil resistance is 100Ω.
It can switch DC voltage up to 30V and AC voltage up to 250V.
This relay is designed for PCB mounting and utilizes solder terminals for installation.
It complies with RoHS and UL standards, ensuring environmental safety and reliability.
The relay weighs approximately 10 grams.
It is manufactured in Austria.
