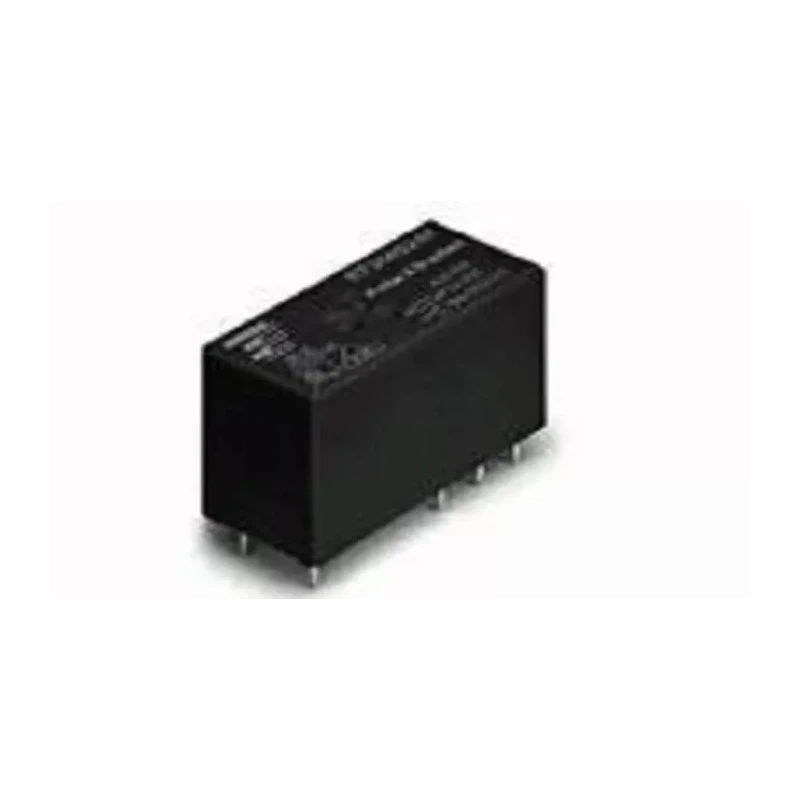

TE Connectivity PCB Monostable Relay 12V dc Coil 12A Switching Current SPDT 2-1419108-5
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Features a monostable, single-pole double-throw (SPDT) contact configuration.
- Operates with a 12V dc coil voltage and 400mW coil power rating for efficient switching.
- Supports switching AC voltage up to 250V and DC voltage up to 30V.
- Compact dimensions of 20mm length, 15mm height, and 10mm width for PCB integration.
- Constructed with silver alloy contacts offering low 50mΩ contact resistance.
- Rated for switching current of 12 amperes for power relay applications.
- Coil resistance is 100Ω, enabling stable coil operation.
- Suitable for operation in temperatures ranging from -40°C to 85°C.
Product Description
TE Connectivity 2-1419108-5 PCB Monostable Relay features a 12V dc coil and 12A switching current within an SPDT contact configuration, perfectly suited for precise switching applications on printed circuit boards. This power relay's compact size (20mm length, 15mm height, 10mm width) ensures easy integration into numerous industrial and electronic systems.
The relay operates with a low coil power of 400mW and coil resistance of 100 ohms, enabling energy-efficient operation. It supports switching AC voltage up to 250V and DC voltage up to 30V, making it broadly applicable in automation, control systems, and electrical equipment manufacturing.
Its silver alloy contact material guarantees high conductivity and reduced contact resistance of 50 milliohms, enhancing performance reliability. Rated for switching currents of up to 12 amperes, the relay is robust enough for various power relay uses.
Designed for harsh environments, the device works across a temperature range of -40°C to 85°C, making it suitable for industrial, laboratory, and HVAC applications. Compliance with RoHS and UL standards ensures safety, quality, and environmental assurance.
Weighing 14 grams, and made in Austria, this relay offers trusted manufacturing quality. The PCB mount and solder terminal types facilitate secure and permanent board attachment. Features a monostable, single-pole double-throw (SPDT) contact configuration.
Operates with a 12V dc coil voltage and 400mW coil power rating for efficient switching. Supports switching AC voltage up to 250V and DC voltage up to 30V. Compact dimensions of 20mm length, 15mm height, and 10mm width for PCB integration.
Constructed with silver alloy contacts offering low 50mΩ contact resistance. Rated for switching current of 12 amperes for power relay applications. Coil resistance is 100Ω, enabling stable coil operation. Suitable for operation in temperatures ranging from -40°C to 85°C.
Complies with RoHS and UL standards ensuring safety and environmental compliance. Manufactured in Austria with a lightweight build of approximately 14 grams. For comprehensive solutions in electronic circuit design, industrial automation, and power control, explore our vast range of relays and contactors at EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay is rated for a switching current of 12 amperes, making it suitable for various power relay applications.
The relay has compact dimensions of 20mm in length, 15mm in height, and 10mm in width, facilitating easy integration into PCB designs.
It operates with a coil voltage of 12V dc and has a coil power rating of 400mW for efficient switching.
This relay features a monostable, single-pole double-throw (SPDT) contact configuration, allowing for versatile switching applications.
It supports switching AC voltage up to 250V and DC voltage up to 30V, broadening its application range.
The relay is constructed with silver alloy contacts that provide a low contact resistance of 50 milliohms, enhancing performance reliability.
This model can operate within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The coil resistance is 100 ohms, which enables stable coil operation during use.
It features a PCB mount type with solder terminals, ensuring secure and permanent attachment to printed circuit boards.
The relay complies with RoHS and UL standards, ensuring safety and environmental compliance.
This relay is manufactured in Austria, reflecting trusted manufacturing quality.
It is suitable for use in industrial automation, control systems, and electrical equipment manufacturing due to its specifications.
