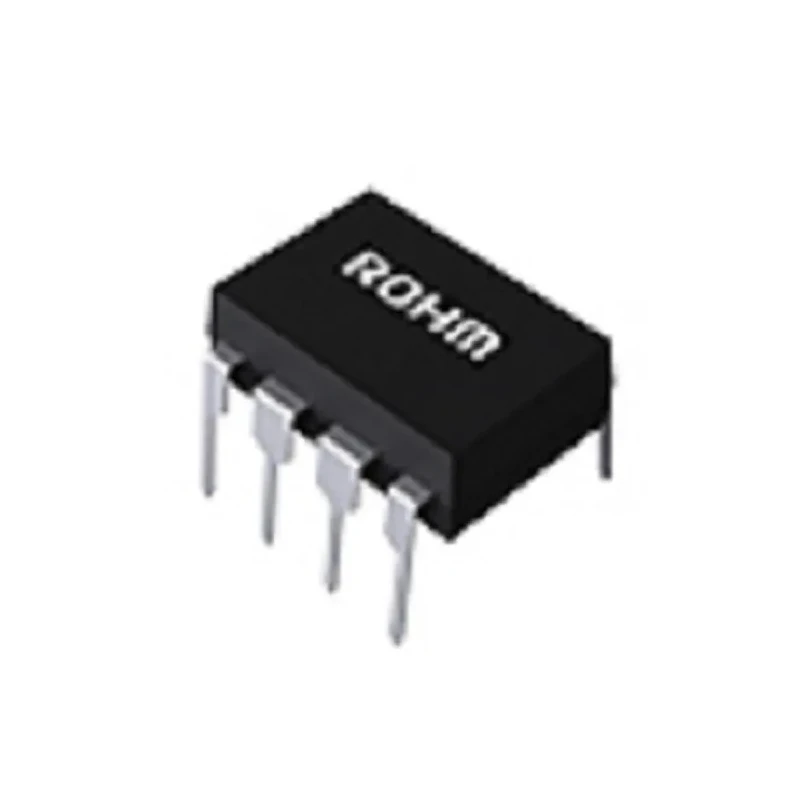

ROHM 5-Channel DC/DC Converter 7-Pin DIP-7AK BM2P101H-Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 8.63mm |
| Length | 6.35mm |
| Model | BM2P101H-Z |
| Width | 9.27mm |
| Mount Type | Through Hole |
| Series | BM2P101 |
| Topology | Flyback |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP-7AK |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Maximum Input Voltage | 30V |
| Maximum Switching Frequency | 100kHz |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.9V |
| Pin Count | 7 |
| Automotive Standard | AEC-Q100 |
Key Features
- Supports a minimum input voltage of 10.9 volts and a maximum of 30 volts.
- Utilizes flyback topology providing isolated and non-isolated device support.
- Incorporates a built-in starter circuit with 650 V super junction MOSFET for low power consumption.
- Maximum switching frequency of 100 kHz with frequency hopping and frequency reduction functions for enhanced efficiency.
- Includes VCC pin under voltage protection and current limiter with AC voltage correction for safe operation.
- Operates reliably within a temperature range of -40°C to 105°C.
- Compliant with RoHS and AEC-Q100 automotive standards ensuring quality and reliability.
- Compact dimensions measuring 6.35 mm length, 9.27 mm width, and 8.63 mm height in DIP-7AK package.
Product Description
ROHM BM2P101H-Z is a high-performance 5-Channel DC/DC Converter IC engineered for power management in electronic products. Featuring a 7-Pin DIP-7AK package, this converter supports both isolated and non-isolated device configurations, which simplifies the design of low power consumption electrical converters. Its architecture utilizes flyback topology to optimize power conversion efficiency.
The converter provides a wide input voltage range from 10.9 V to 30 V and includes a built-in starter circuit equipped with a 650 V super junction MOSFET to achieve low power consumption and enhance circuit durability. The device operates at a maximum switching frequency of 100 kHz and includes frequency hopping and frequency reduction functions to improve efficiency and reduce electromagnetic interference.
Additional built-in protections such as VCC pin under voltage protection, an over current limiter with AC voltage correction, and a highly precise AC over voltage protection function make this converter reliable in demanding industrial and automotive environments.
It operates efficiently under extreme temperature conditions from -40°C up to 105°C and complies with RoHS and AEC-Q100 standards, making it suitable for automotive and industrial applications. The compact DIP-7AK package dimensions of 6.35 mm (length), 9.27 mm (width), and 8.63 mm (height) facilitate easy integration into PCB designs.
Supports a minimum input voltage of 10.9 volts and a maximum of 30 volts. Flyback topology for isolated and non-isolated device compatibility. Built-in starter circuit with 650 V super junction MOSFET for low power. Maximum switching frequency of 100 kHz with frequency hopping function.
VCC pin under voltage protection and AC voltage correction current limiter. Operating temperature range of -40°C to 105°C. RoHS compliant and meeting AEC-Q100 automotive standard. Compact DIP-7AK package with 7 pins and precise dimensional specifications.
This ROHM BM2P101H-Z converter IC is ideal for industrial and automotive power management applications requiring reliable, efficient voltage conversion and protection functions. Explore related Power Management ICs and semiconductor solutions in EnvMart's extensive catalog for your project and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a minimum input voltage of 10.9 volts and a maximum of 30 volts.
The maximum switching frequency of the BM2P101H-Z is 100 kHz.
It utilizes flyback topology, allowing for both isolated and non-isolated device support.
The dimensions of the DIP-7AK package are 6.35 mm in length, 9.27 mm in width, and 8.63 mm in height.
It operates reliably within a temperature range of -40°C to 105°C.
It includes VCC pin under voltage protection, an over current limiter with AC voltage correction, and precise AC over voltage protection.
This converter provides a total of 5 outputs.
Yes, it is RoHS compliant and meets the AEC-Q100 automotive standard.
The mount type for the BM2P101H-Z is through hole.
The country of origin for this model is India.
This model belongs to the BM2P101 series.
It incorporates a built-in starter circuit with a 650 V super junction MOSFET for low power consumption.
