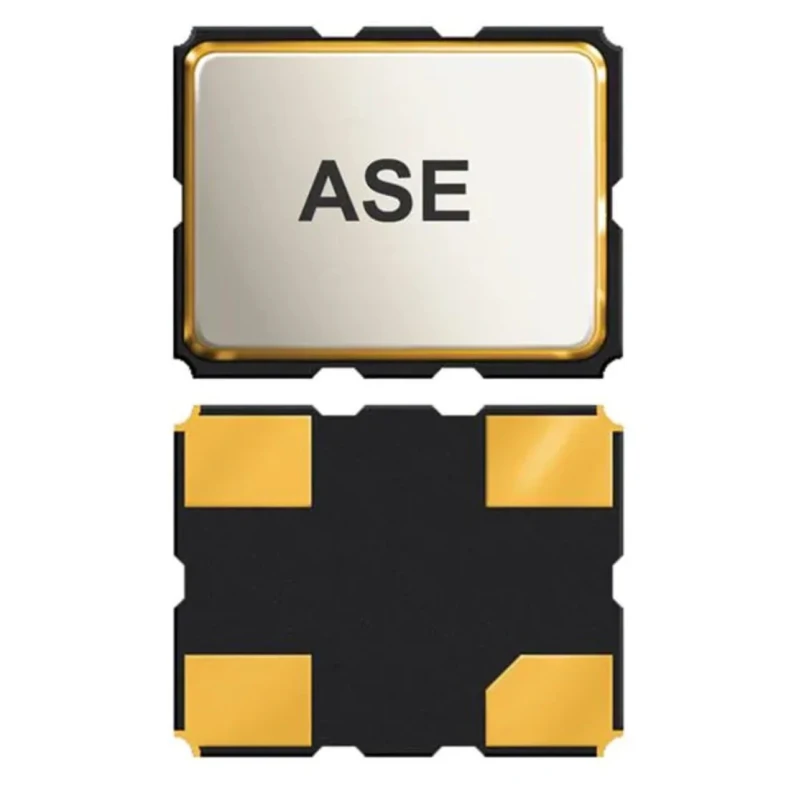

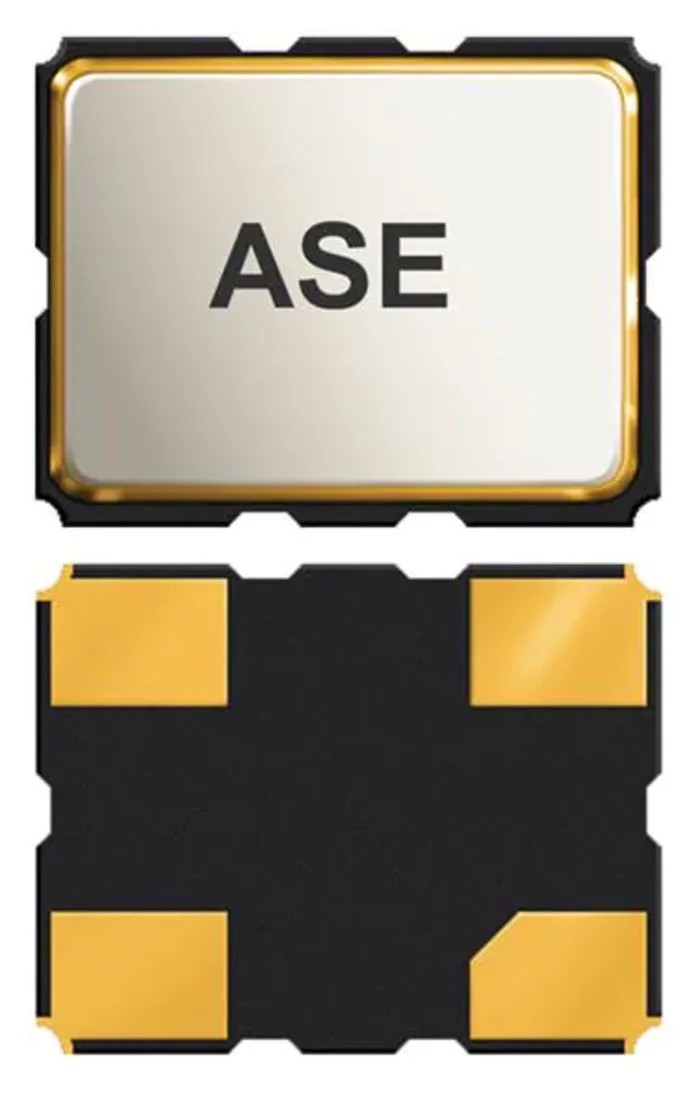

Abracon 14.7456MHz Crystal Oscillator, ±50 ppm CMOS Output, 4-Pin Surface Mount ASE-14.7456MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 3.2mm |
| Model | ASE-14.7456MHZ-LC-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASE |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 14.7456MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.47V |
| Minimum Supply Voltage | 3.14V |
| Oscillator Type | Crystal Oscillator |
| Output Level | CMOS |
Key Features
- Operates at supply voltage range of 3.14V to 3.47V.
- CMOS output level suitable for high-speed digital circuits.
- Wide operating temperature range from -40°C to 85°C for diverse environments.
- Low profile design with maximum height of 1.2mm and compact dimensions.
- RoHS compliant and suitable for reflow soldering processes.
- Low current consumption and low RMS jitter of 5ps max ensures signal integrity.
- Surface mount package type facilitates automated PCB assembly.
- Typical applications include wireless communication devices, laptops, PDA, and CCD clock for VTR cameras.
Product Description
Abracon ASE-14.7456MHZ-LC-T is a precision crystal oscillator providing a stable 14.7456MHz output frequency with ±50 ppm frequency stability. Featuring a 4-pin surface mount package measuring 3.2mm in length, 2.5mm in width, and 1.2mm in height, it is optimized for compact electronic designs.
This oscillator operates within a supply voltage range of 3.14V to 3.47V and delivers CMOS output levels, making it compatible with modern digital systems requiring low noise clock generation. Its operating temperature range of -40°C to 85°C ensures reliable performance in harsh industrial and commercial environments.
The ASE series is compliant with RoHS and RoHS II standards, supporting environmentally responsible manufacturing and use. Its low RMS jitter of 5ps and low current consumption of approximately 30mA (at 200MHz typical) makes it suitable for sensitive applications such as CCD clocks in VTR cameras, PDAs, laptops, and wireless communication apparatus.
The tape and reel packaging facilitates automated pick-and-place assembly, enhancing production efficiency. This oscillator’s tri-state function adds further versatility to system-level design.
Operates between 3.14V to 3.47V supply voltage. Compact surface mount 4-pin package. Frequency stability of ±50 ppm. Wide temperature range -40°C to 85°C. RoHS compliant for environmental safety. Low RMS jitter and current consumption.
Ideal for wireless, PDA, laptop, CCD camera clocking. Tape & reel packaging convenient for manufacturing.
This Crystal Oscillator is perfectly suited for electronic industrial, telecommunications, consumer electronics, and automotive applications needing reliable clock sources. Explore more precision oscillators at EnvMart for your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 14.7456MHz.
It operates within a supply voltage range of 3.14V to 3.47V.
The maximum operating temperature is 85°C, while the minimum is -40°C.
This model provides a CMOS output level, suitable for high-speed digital circuits.
The dimensions are 3.2mm in length, 2.5mm in width, and 1.2mm in height.
Yes, it is RoHS compliant, supporting environmentally responsible manufacturing.
The current consumption is approximately 30mA at 200MHz typical.
It is packaged in tape and reel, which facilitates automated pick-and-place assembly.
The low RMS jitter is specified at a maximum of 5ps.
Typical applications include wireless communication devices, laptops, PDAs, and CCD clocks for VTR cameras.
This model has a pin count of 4.
It uses a surface mount type for easy integration into compact electronic designs.
