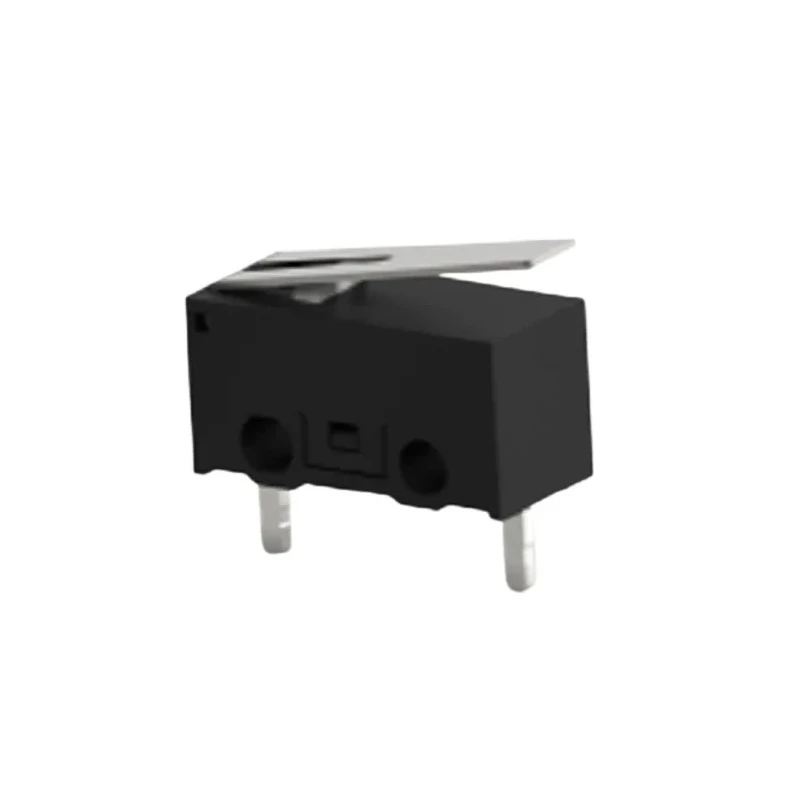

TE Connectivity Lever Snap Action Micro Switch PCB Terminal 3A SPST SAJ13XXHL0N88SNCPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ13XXHL0N88SNCPTQ |
| Series | SAJ |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Operating Force | 0.75N |
| Mechanical Life | 500000Cycles |
| Microswitch Type | Miniature |
Key Features
- The miniature micro switch features a lever actuator designed for precise snap action response.
- Terminal type is PCB terminal ensuring compatibility with printed circuit boards.
- Switch contact current rating is 3 Amperes for reliable electrical switching.
- Contact configuration is single pole single throw (SPST) normally closed (NC).
- Operating force is low at 0.75 Newtons for easy actuation.
- Wide operating temperature range from -25°C to 75°C supports diverse environments.
- Mechanical life expectancy of 500,000 cycles ensures durability and reliability.
- RoHS compliant, ensuring environmental safety standards are met.
Product Description
TE Connectivity SAJ13XXHL0N88SNCPTQ lever snap action micro switch is designed for converting mechanical actuation into reliable electrical switching. This miniature micro switch with a lever actuator and PCB terminal type is compatible with various applications including home appliances, consumer electronics, factory automation, and other industrial uses.
The switch supports a contact current rating of 3A and features a SPST contact configuration, offering straightforward on/off switching control. With an operating force of only 0.75N, it ensures smooth and precise actuation even in low-force conditions.
It operates safely across a temperature range of -25°C to 75°C, making it suitable for several demanding environments. The mechanical lifetime of 500,000 cycles guarantees long-lasting performance in continuous use scenarios.
Manufactured in China, this switch complies with RoHS standards, meeting environmental and safety requirements. The miniature micro switch provides an industry-standard form factor compatible with popular brands and designs.
PCB terminal type supports secure, flux-resistant soldering to printed circuit boards. Its compact size and reliable performance make it ideal for automation and control systems in industrial and domestic equipment. The lever actuator enables easy interface with mechanical linkages or user-operated controls.
It is suitable for electrical and electronic equipment requiring snap action switching with a compact footprint.
This product exemplifies TE Connectivity's commitment to manufacturing reliable and durable electronic components for diverse industrial applications. Explore our other Micro Switch products for additional options and configurations within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a contact current rating of 3 Amperes, allowing for reliable electrical switching.
It operates safely within a temperature range of -25°C to 75°C, making it suitable for diverse environments.
This model features a lever actuator designed for precise snap action response.
The mechanical life expectancy of this switch is 500,000 cycles, ensuring long-lasting performance.
The terminal type is PCB terminal, ensuring compatibility with printed circuit boards.
It features a single pole single throw (SPST) configuration, which allows for straightforward on/off switching control.
The operating force is low at 0.75 Newtons, making it easy to actuate.
Yes, it is RoHS compliant, ensuring that it meets environmental safety standards.
This miniature micro switch is suitable for various applications including home appliances, consumer electronics, and factory automation.
This model is manufactured in China.
This is a miniature micro switch designed for converting mechanical actuation into reliable electrical switching.
It has a compact size that allows for easy integration into various devices and applications.
