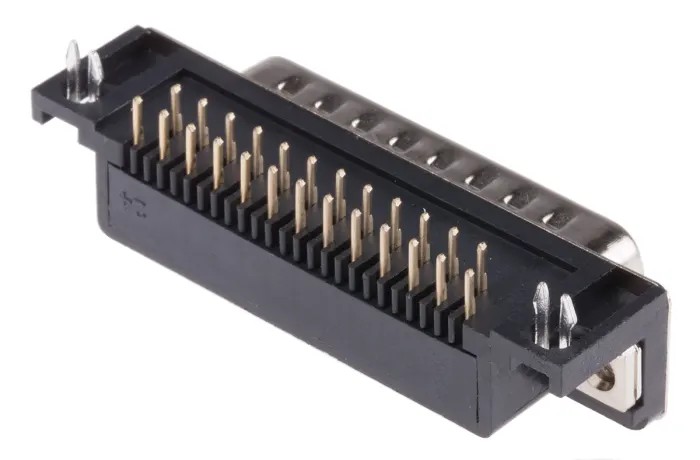

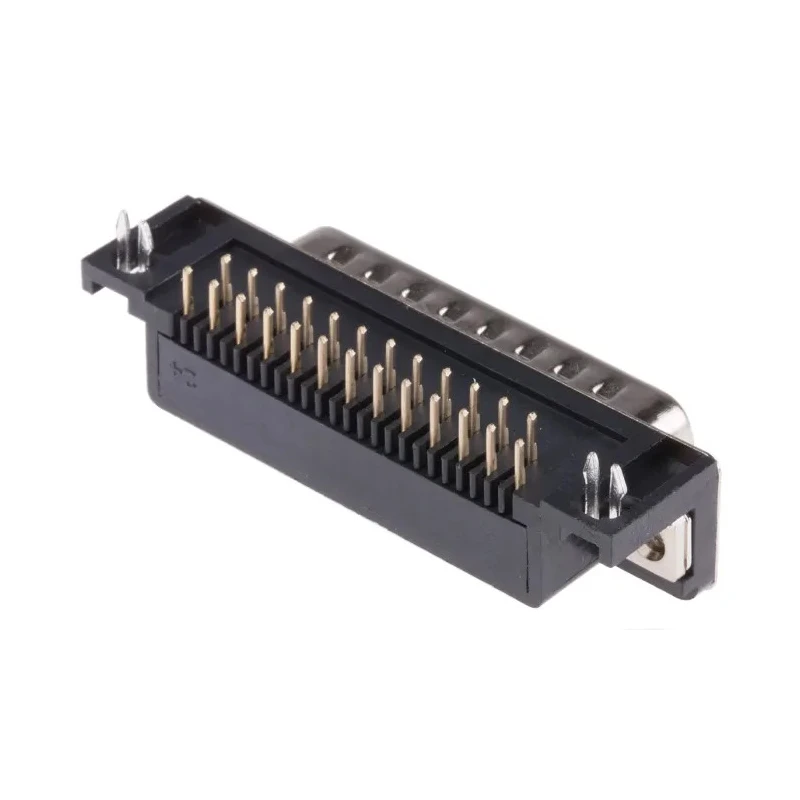

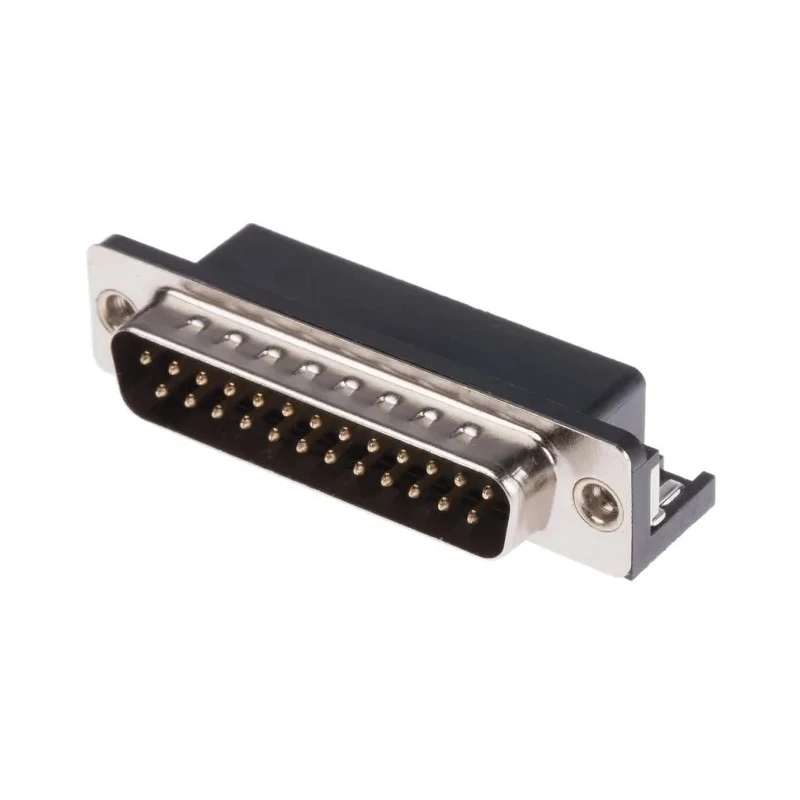

RS PRO 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector, 4 to 40 UNC Male 239-5883
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 350V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 5A |
| Model | 239-5883 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Brass |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | D |
Key Features
- The connector supports a current rating of 5A for demanding applications.
- It features 25 contacts arranged in a right angle orientation.
- The housing is made from durable Polyethylene Terephthalate providing excellent insulation.
- Contacts are brass with gold plating ensuring corrosion resistance and good conductivity.
- This through-hole connector uses 4 to 40 UNC mounting hardware for secure PCB attachment.
- The voltage rating is 350V, suitable for industrial electronics use.
- Operating temperature ranges from -55°C to 105°C for wide environmental tolerances.
- Its D-Sub shell size is D with a sealed back to prevent solder flux ingress during assembly.
Product Description
RS PRO brand 239-5883 model 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector is designed for industrial, military, and commercial electronic applications requiring secure and reliable connector interfaces. It offers a right angle orientation for compact PCB mounting and through hole termination for robust mechanical stability.
The connector is rated at 5A current and 350V voltage, supporting demanding electronic use cases. Its housing material, Polyethylene Terephthalate, provides excellent insulation and durability in challenging environments. Brass contacts plated with gold maximize conductivity and resist corrosion.
Mounting is facilitated by 4 to 40 UNC threaded hardware which ensures a stable attachment to circuit boards. The connector shell size is D with a sealed back design to prevent solder and flux ingress during assembly processes.
The operating temperature range extends from -55°C to 105°C, allowing operation in severe temperature conditions typical in industrial and military settings. The product construction includes features such as board locks with integral earthing straps to reduce costs during PCB soldering.
This connector is suitable for applications involving computer interfacing, military electronics, industrial control systems, and other power or signal connector needs in manufacturing or research laboratories. Manufactured in Taiwan, Province Of China, it meets reliable quality standards for global markets.
Supports 5A current and 350V voltage rating. Durable Polyethylene Terephthalate housing material. Brass contacts with gold plating for corrosion resistance. 4 to 40 UNC mounting hardware for secure PCB attachment. Right angle orientation for space-saving PCB design.
Wide operating temperature from -55°C to 105°C. Sealed back prevents solder and flux ingress. Suitable for military, industrial, commercial electronic applications. Board locks with integral earthing straps reduce soldering costs.
Manufactured in Taiwan, Province Of China. Browse more D-Sub Connectors at EnvMart for diverse industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a current rating of 5A, making it suitable for demanding electronic applications.
The voltage rating for this model is 350V, which is appropriate for industrial electronics use.
It operates within a temperature range of -55°C to 105°C, allowing for use in severe environmental conditions.
This connector features a right angle orientation, which facilitates compact PCB mounting.
The housing is made from Polyethylene Terephthalate, while the contacts are brass with gold plating for corrosion resistance and good conductivity.
It requires 4 to 40 UNC mounting hardware for secure attachment to circuit boards.
This model has 25 contacts, providing multiple connection points for signals or power.
The contact pitch for this connector is 2.77 mm, which is standard for D-Sub connectors.
This connector uses solder termination, ensuring a stable and reliable connection.
Yes, it has a sealed back design to prevent solder and flux ingress during assembly processes.
This connector is manufactured in Taiwan, Province Of China.
It is suitable for applications involving computer interfacing, military electronics, and industrial control systems.
