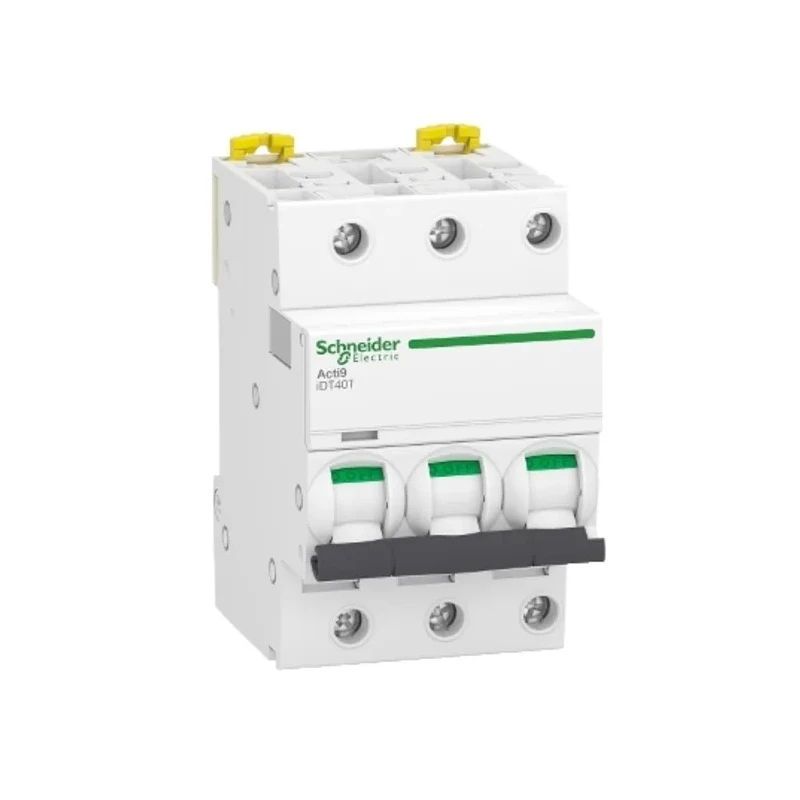

Schneider Electric Acti9 Acti9 iDT40 Miniature Circuit Breaker, 3-Pole, 20A, Type C, 6000 A Breaking Capacity A9P24320

Schneider Electric A9P24320 Acti9 iDT40 Miniature Circuit Breaker is a high-quality electrical protection device designed for safeguarding electrical circuits in various environments. Featuring a 3-pole configuration with a 20A current rating and Type C tripping characteristics, it is ideal for handling moderate inductive loads such as lighting and small motors.

This miniature circuit breaker incorporates a thermal magnetic trip unit technology with a breaking capacity of 6000 A, providing efficient protection against short circuits and overloads. Its toggle switch reset actuator and trip indicator enable straightforward operation and rapid fault identification.

The MCB has compact dimensions of 85 mm height, 54 mm width, and 74 mm depth, enabling its installation in confined electrical panels with clip-on mounting compatibility. It features tunnel-type terminals for secure wiring connections and an IP20 ingress protection rating, granting basic protection against solid particle intrusion.

Compliance with international safety standards EN/IEC 60947-2 and EN/IEC 60898-1 assures reliable performance and industry acceptance. The device is suitable for industrial, commercial, construction, HVAC, and residential electrical distribution and control applications requiring dependable circuit interruption.

Additional features include a thermal magnetic tripping mechanism with an impulse withstand voltage of 4 kV, electrical durability rated at 20,000 cycles, ambient operating temperature range from -25 °C to 70 °C, and padlockable toggle switch providing extra safety by preventing unauthorized operation. Schneider Electric's Green premium product classification signifies an environmentally considerate design.

The breaker features a thermal magnetic tripping mechanism ensuring accurate overload and short circuit protection. Breaking capacity is rated at 6000 A for high fault current interruption capability. Designed for clip-on mounting with toggle switch reset actuator for easy installation and operation.

Compact dimensions of 85mm height, 54mm width, and 74mm depth facilitate space-saving integration. Complies with international standards EN/IEC 60947-2 and EN/IEC 60898-1 for safety and performance. IP20 rating provides basic protection against solid objects and finger contact.

Manufactured in Hungary, ensuring quality assured production standards. Suitable for industrial, commercial, and residential electrical distribution panels for circuit protection.

This Miniature Circuit Breaker is a crucial component in electrical installations, providing safety by preventing damage caused by overload or short circuits. Its robust construction and adherence to standards make it an excellent choice for electrical engineers, contractors, and maintenance professionals. Explore more Schneider Electric products and circuit breakers at EnvMart for your industrial and electrical automation needs.
