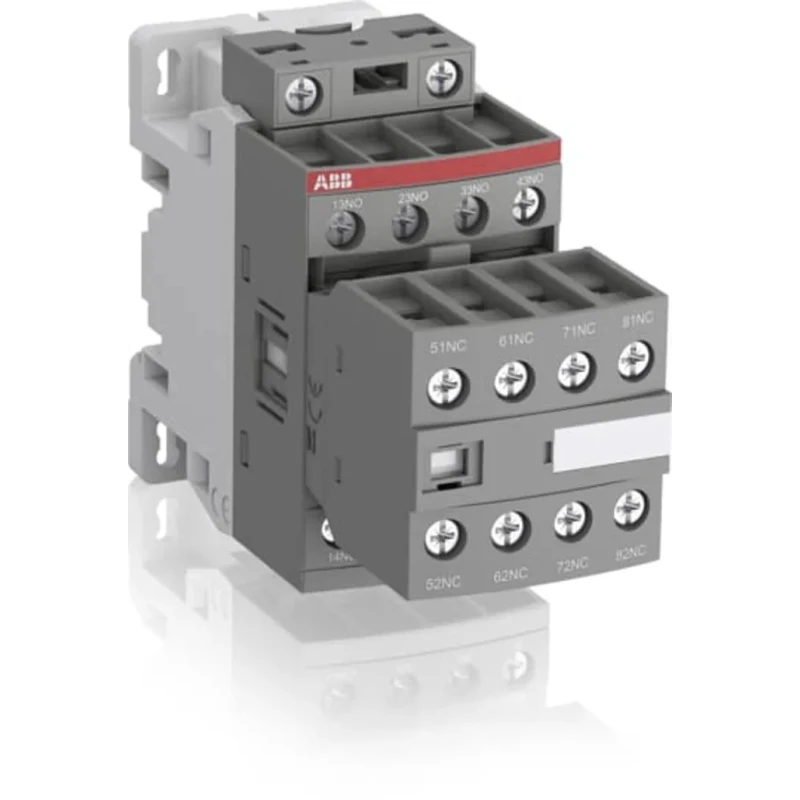

ABB NFZ Series Contactor Relay 60V DC Coil, 8-Pole, 6A Contact Current, 140W Power Rating, 7 NO/1 1SBH136001R2171 NFZ71E-21



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Length	110.5mm
Model	1SBH136001R2171 NFZ71E-21
Depth	110.5mm
Width	45mm
Mount Type	DIN Rail
Series	NFZ
Power Rating	140W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	8
Contact Voltage	690V
Coil Voltage	60V dc
Normal State Configuration	7 NO/1 NC
Contact Current	6A
Number of Auxiliary Contacts	8
Auxiliary Contact Configuration	7 NO/1 NC
Operational Current Ie	6A
Control Circuit Voltage Uc	690V
Pole and Throw Configuration	8

Key Features

The relay supports a high power rating of 140W for reliable operation.
It provides a 7 normally open (NO) and 1 normally closed (NC) auxiliary contact configuration.
Designed for easy DIN rail mounting with screw terminal connections.
Operates across a wide temperature range from -40°C to 70°C.
Built-in surge protection enhances durability against electrical surges.
Compact dimensions of 110.5mm length, 45mm width, and 110.5mm depth.
Suitable for controlling motors and industrial loads in automation systems.
Meets multiple standards including RoHS, UL, IEC 60947-5-1, and EN 60947-5-1.

Product Description

ABB 1SBH136001R2171 NFZ71E-21 Contactor Relay is a robust electrical control device designed with a 60V DC coil and 8 poles, rated for a 6A contact current and 140W power at 690V. This relay offers a configuration of 7 normally open (NO) and 1 normally closed (NC) auxiliary contacts, allowing complex control logic integrations.

Built for DIN rail mounting, it features screw type terminals for secure and reliable electrical connections. The device operates efficiently in ambient temperatures ranging from -40°C to 70°C, making it suitable for diverse industrial environments.

Equipped with built-in surge protection, the relay ensures extended operational durability and minimizes the need for additional suppressors. Its compact dimensions (110.5mm x 45mm x 110.5mm) facilitate easy installation in control panels.

This ABB contactor relay is ideal for controlling motors and other industrial loads within automation and control systems, particularly where compliance with IEC and EN standards is essential for safety and performance.

The relay accepts a wide control voltage range between 24-250V AC and 12-250V DC, supporting versatile applications. PLC outputs at 24V DC or higher can control the relay directly with a minimum 500 mA. High current handling capability up to 6A per contact ensures reliable switching under load.

Conforms to multiple international standards including RoHS, UL 508, CSA C22.2 No. 14, and more for assured quality. Manufactured in France, this product exemplifies superior build quality and reliability for industrial automation needs.
