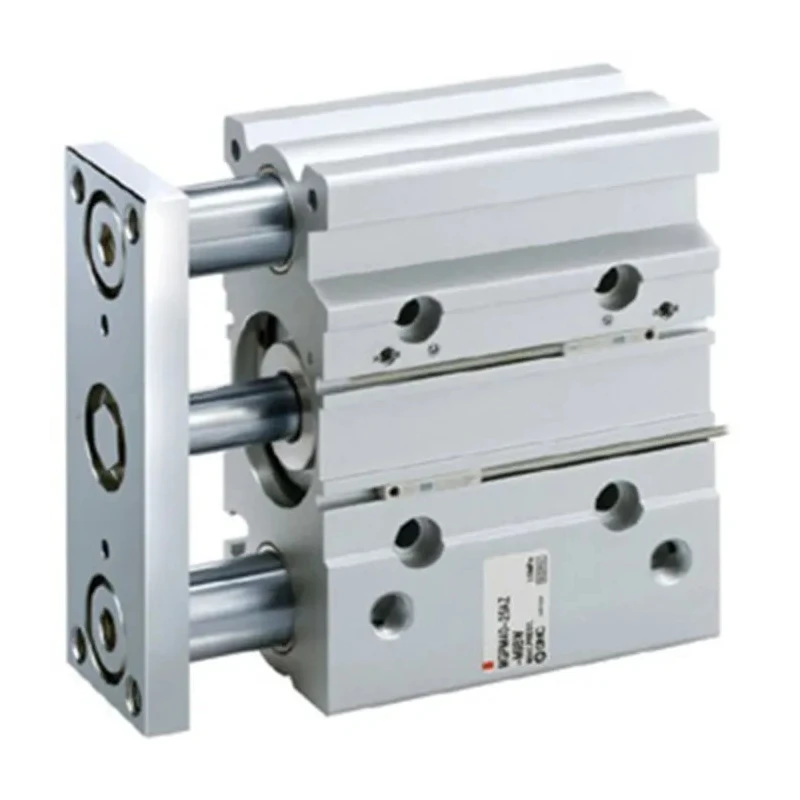

SMC Pneumatic Guided Cylinder 16mm Bore, MGPL Series, 100 mm Stroke, Double Acting, Aluminium Alloy Body MGPL16-100AZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Model | MGPL16-100AZ |
| Gross Weight | 830g |
| Series | MGPL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 100mm |
| Bore Diameter | 16mm |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Guide Type | Ball Bearing |
| Piston Rod Thread Size | M5 x 0.8 |
Key Features
- Constructed with aluminium alloy body for lightweight durability.
- Equipped with internal guide shafts isolating load bearing from rod movement.
- High precision ball bearing guide ensures smooth stable operation.
- Rubber bumpers provide cushioning and reduce impact noise.
- Supports maximum operating pressure of 1 MPa for robust industrial use.
- Operates within temperature range of -10°C to 60°C.
- Piston rod threaded size M5 x 0.8 for secure mounting.
- Maximum piston speed up to 500 mm/s enhances cycle efficiency.
Product Description
SMC MGPL16-100AZ Pneumatic Guided Cylinder is a high-performance actuator designed for industrial pneumatic applications. It has a 16mm bore diameter and a 100mm stroke length, operating in double acting mode to deliver precise and stable linear motion. The aluminium alloy body offers an excellent strength-to-weight ratio, making the cylinder lightweight yet robust.
This cylinder integrates internal guide shafts which isolate the load bearing from actuator rod movement, minimizing wear and improving operational life. A high-precision ball bearing guide facilitates smooth travel with stable resistance, ideal for pushing, lifting, and positioning tasks.
The MGPL16-100AZ includes rubber bumpers as standard cushioning components to absorb shocks and reduce noise during operation. It supports a maximum operating pressure of 1 MPa and can operate safely within a temperature range from -10°C to 60°C, ensuring versatility across industrial environments.
The piston rod features an M5 x 0.8 thread size for easy installation and secure fixing. With a maximum piston speed of 500 mm/s, this cylinder supports efficient cycling in automation and machinery processes with high non-rotating accuracy of ±0.10°, enhancing application precision.
Constructed with aluminium alloy body for lightweight durability. Equipped with internal guide shafts isolating load bearing from rod movement. High precision ball bearing guide ensures smooth stable operation. Rubber bumpers provide cushioning and reduce impact noise.
Supports maximum operating pressure of 1 MPa for robust industrial use. Operates within temperature range of -10°C to 60°C. Piston rod threaded size M5 x 0.8 for secure mounting. Maximum piston speed up to 500 mm/s enhances cycle efficiency.
Non-rotating accuracy within ±0.10° suitable for pushing and lifting. Compact design ideal for automation, material handling, and manufacturing industries.
This pneumatic guided cylinder is widely used in industrial automation, manufacturing assembly lines, material handling systems, and various commercial pneumatic applications. Its precise operation and durable construction make it a reliable choice for enhancing production efficiency and product quality.
Explore the full range of SMC pneumatic actuators and Pneumatic Guided Cylinders available at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 100 mm.
It supports a maximum operating pressure of 1 MPa.
The bore diameter of this cylinder is 16 mm.
This model operates in a double acting mode.
The body is constructed from aluminium alloy, providing a good strength-to-weight ratio.
It operates safely within a temperature range of -10°C to 60°C.
The piston rod features a threaded size of M5 x 0.8 for secure mounting.
It includes rubber bumpers for cushioning and to reduce impact noise during operation.
The maximum piston speed is up to 500 mm/s, enhancing cycle efficiency.
It is equipped with a high precision ball bearing guide for smooth and stable operation.
This pneumatic guided cylinder is widely used in industrial automation, manufacturing assembly lines, and material handling systems.
The gross weight of the MGPL16-100AZ is 830 g.
