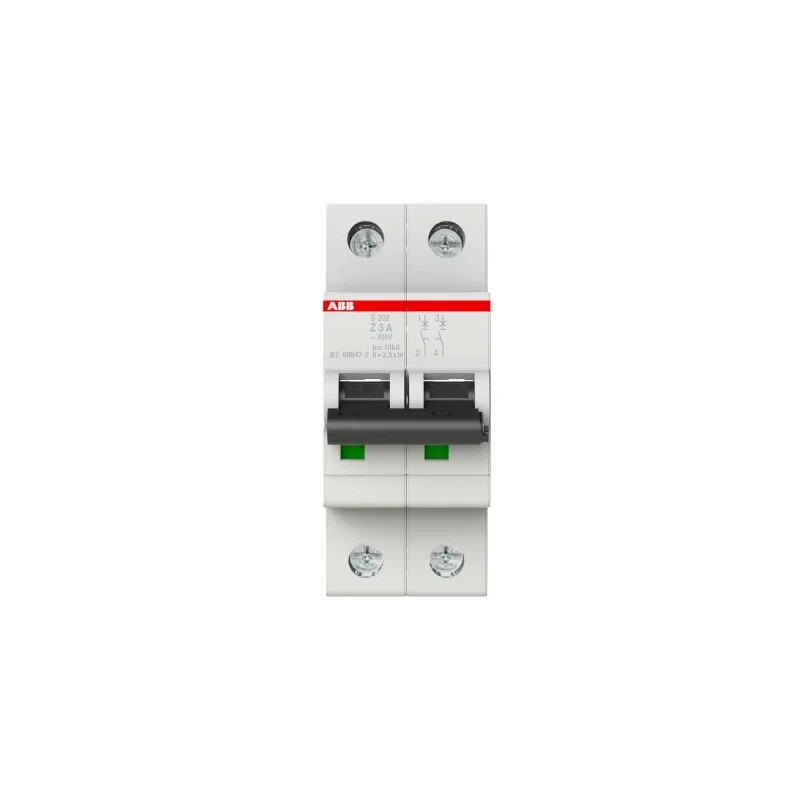

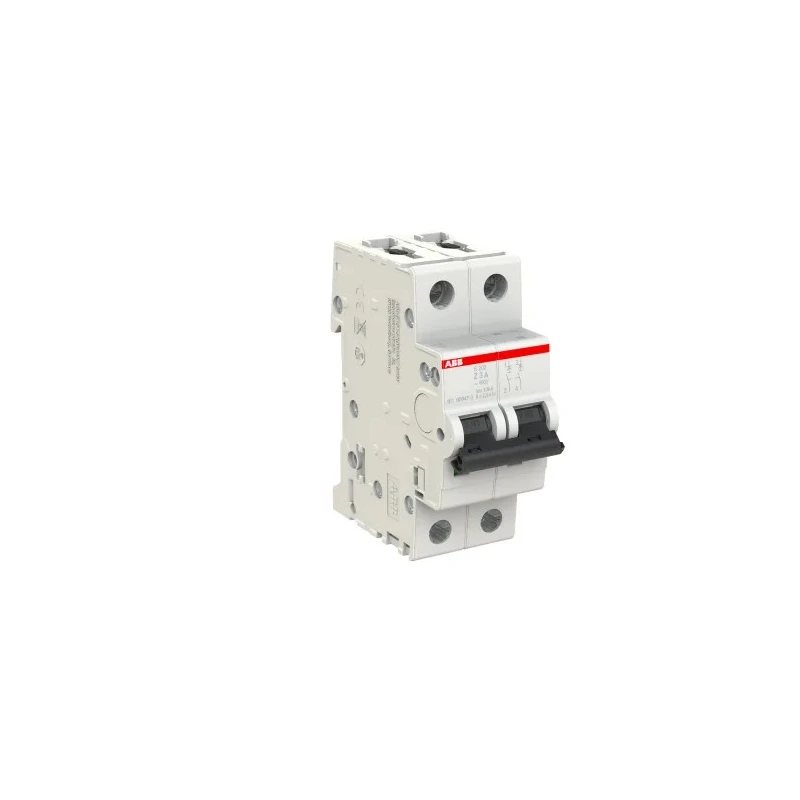

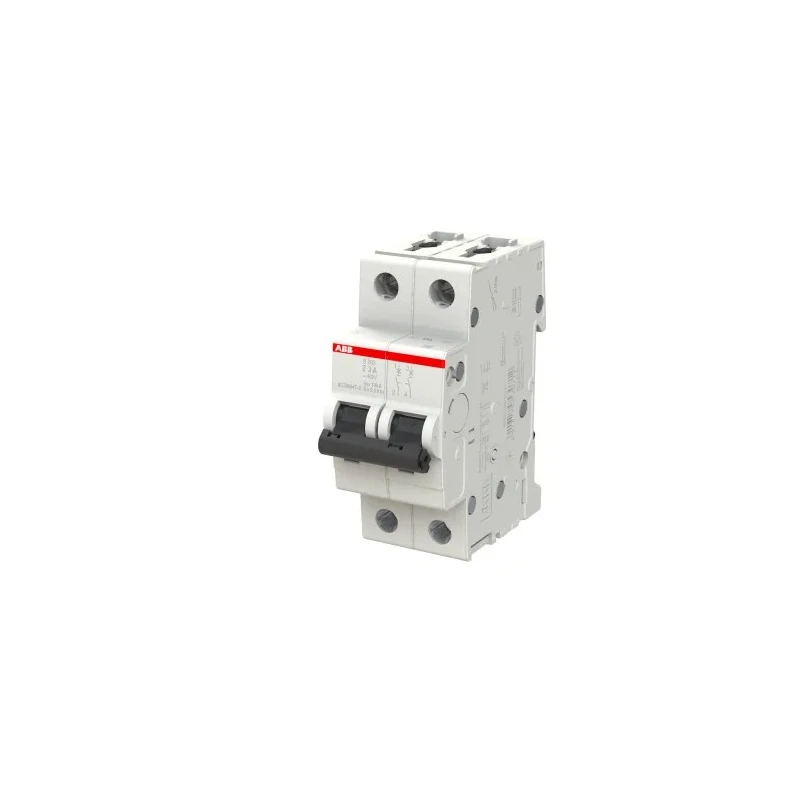

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 3A, Type Z, 400V AC, 125V 2CDS252001R0318 S202 Z 3A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS252001R0318 S202 Z 3A - 10 KA |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 3A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 125V |
| Tripping Characteristics | Type Z |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle |
Key Features
- This two-pole breaker is designed for DIN rail mounting for convenient installation.
- It features a 6 kA breaking capacity for robust short-circuit interruption.
- Rated for 400V AC and 125V DC operation, suitable for three-phase and DC control circuits.
- Screw terminals ensure secure and reliable conductor connections.
- IP20 and IP40 protection ratings make it suitable for finger touch and enclosed panel use.
- The thermomagnetic tripping mechanism combines thermal overload and electromagnetic short-circuit protection.
- Compact 35mm width allows for modular configuration in distribution assemblies.
- Applicable for automation control circuits and small motor protection.
Product Description
ABB 2CDS252001R0318 S202 Z 3A - 10 KA miniature circuit breaker from the System Pro M Compact S200 series delivers reliable overcurrent protection in low-voltage electrical installations. Rated at 3 amperes and designed with Type Z tripping characteristics, this two-pole device ensures fast fault discrimination, making it ideal for industrial and control panel use where space-saving modularity is required.
Designed for DIN rail mounting, the breaker clips easily for rapid installation and removal within distribution enclosures. Featuring a high breaking capacity of 6 kA, it effectively interrupts short-circuits, protecting downstream equipment and wiring.
It supports a rated AC voltage of 400 volts, suitable for three-phase power distribution networks, and a DC voltage rating of 125 volts for safe operation in battery-backed and DC control circuits. Screw-terminal connections facilitate secure wiring and maintenance.
The device carries IP20 and IP40 ingress protection ratings, providing finger-safe operation as well as protection within enclosed panels and equipment cabinets.
The tripping mechanism employs a thermomagnetic system that combines a temperature-sensitive element for overload protection with an electromagnetic trip unit that provides instantaneous disconnection under short-circuit conditions for enhanced safety.
This miniature circuit breaker is suitable for protecting automation panel control circuits and two-pole isolation of small motor feeds. The compact 35mm width allows installation in modular assemblies, optimizing panel space.
Its design complies with IEC/EN standards 60898-1 and 60947-2, ensuring international safety and performance compliance. The breaker is made in Germany, guaranteeing high manufacturing standards and quality assurance. With a toggle reset actuator, it enables straightforward manual switching and resetting after a trip.
Ideal for industrial, manufacturing, and commercial electrical applications, the ABB System Pro M Compact S200 Miniature Circuit Breaker provides dependable circuit protection, reduces downtime, and enhances safety in electrical distribution systems.
Browse the Electronics & Electricals category at EnvMart to explore more circuit protection solutions including Miniature Circuit Breakers, fuses, and related electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this miniature circuit breaker is 6 kA, allowing it to effectively interrupt short-circuits and protect downstream equipment.
This model is rated for 400V AC and 125V DC operation, making it suitable for both three-phase power distribution and DC control circuits.
The dimensions of this circuit breaker are 88mm in height, 69mm in depth, and 35mm in width, allowing for compact installation in modular assemblies.
It is designed for DIN rail mounting, which facilitates convenient installation and removal within distribution enclosures.
It employs a thermomagnetic tripping mechanism, combining thermal overload protection with an electromagnetic trip unit for short-circuit conditions.
The device has IP20 and IP40 protection ratings, ensuring finger-safe operation and protection within enclosed panels and equipment cabinets.
This circuit breaker features Type Z tripping characteristics, which ensure fast fault discrimination for enhanced safety in electrical installations.
It has screw terminals, which ensure secure and reliable connections for wiring and maintenance.
It complies with IEC/EN standards 60898-1 and 60947-2, ensuring international safety and performance compliance.
The current rating of this miniature circuit breaker is 3A, suitable for various low-voltage applications.
This circuit breaker is made in Germany, which guarantees adherence to high manufacturing standards and quality assurance.
It is suitable for protecting automation control circuits and providing two-pole isolation for small motor feeds in industrial and commercial applications.
