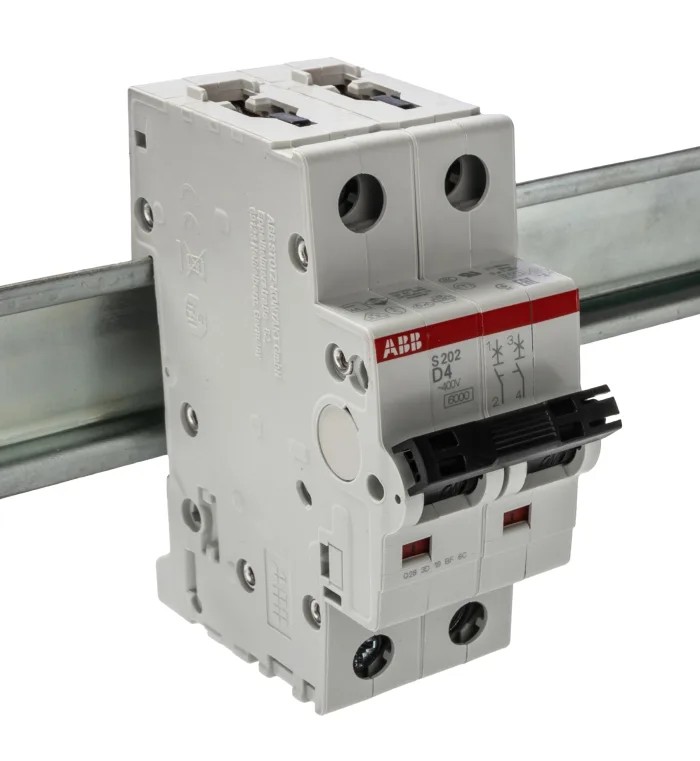

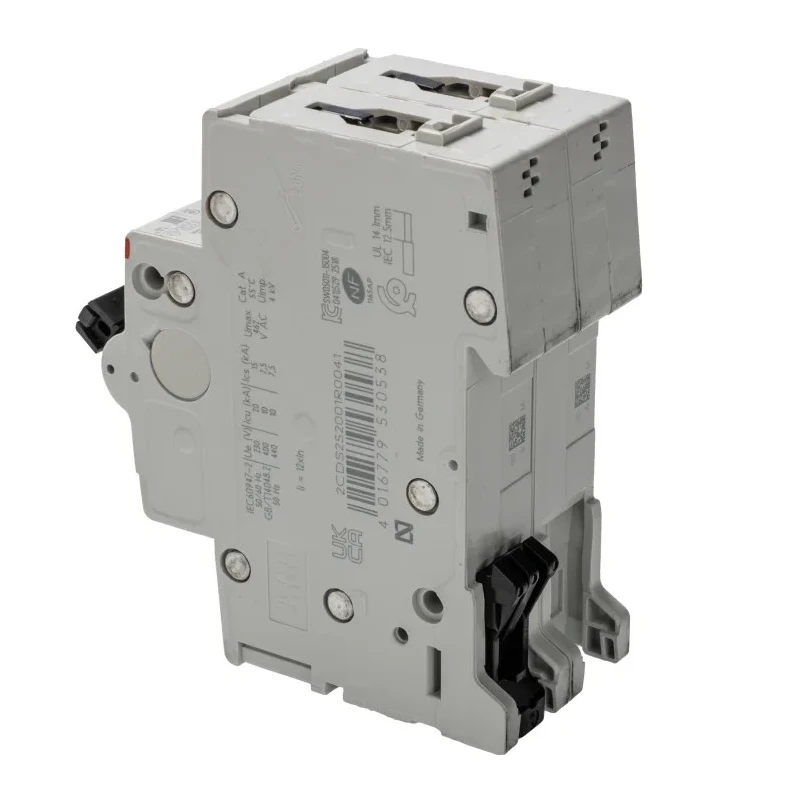

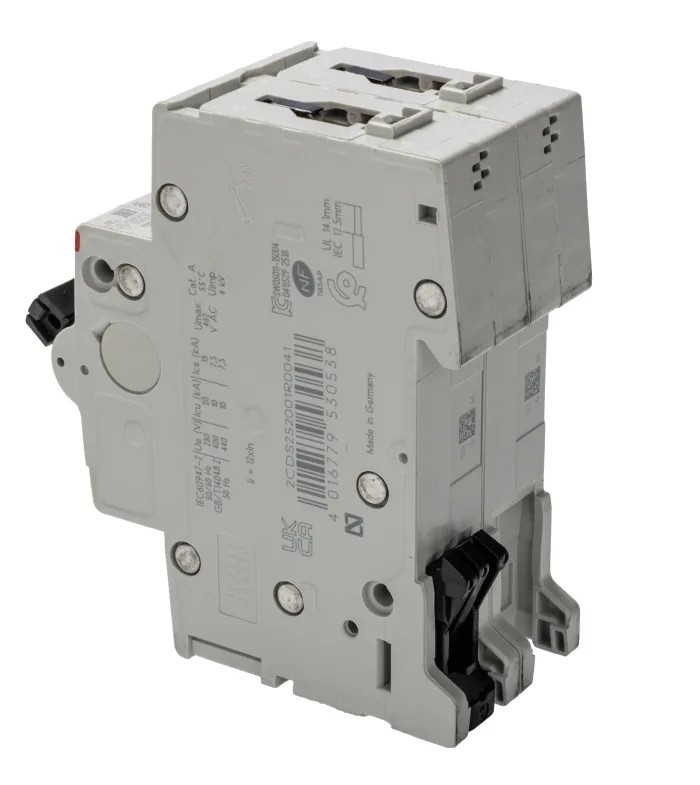

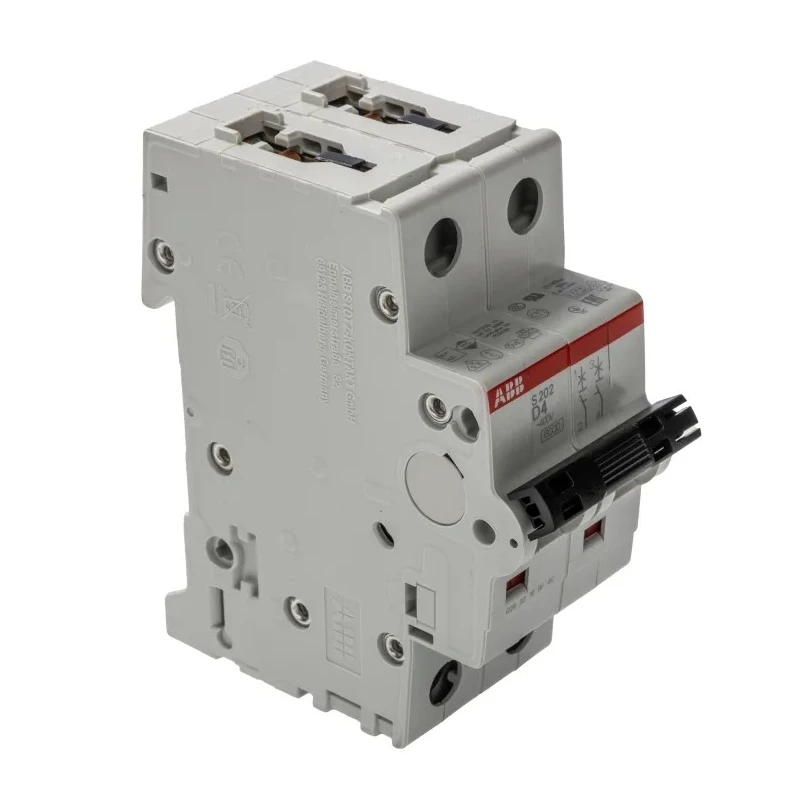

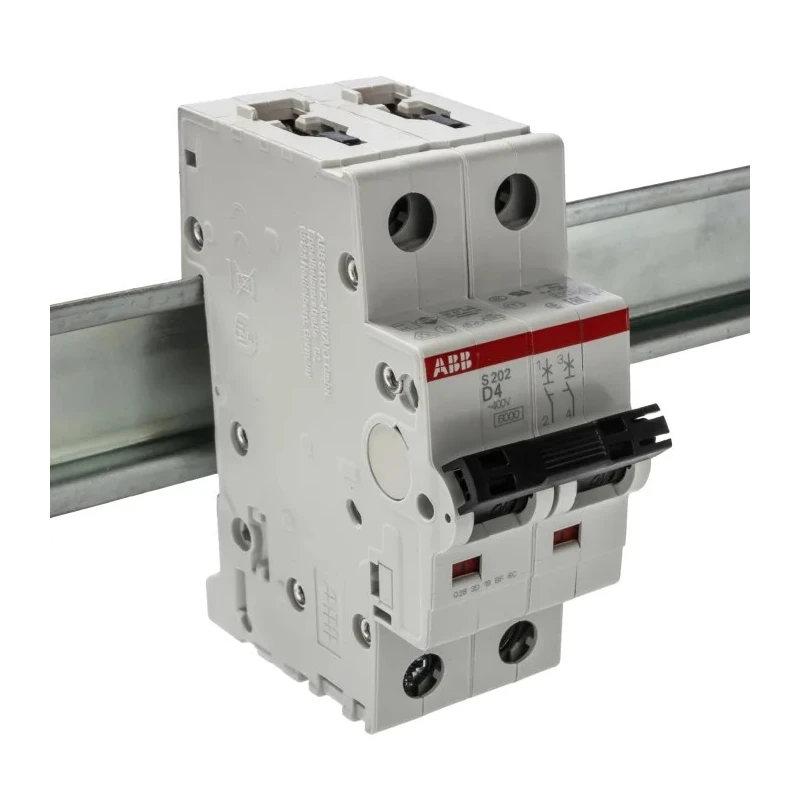

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 4A, Type D, 400V AC, 125V DC, 10kA 2CDS252001R0041 S202-D4

ABB 2CDS252001R0041 S202-D4 Miniature Circuit Breaker is part of the System Pro M Compact S200 series, designed for commercial and industrial electrical protection applications. This 2-pole breaker with a 4 ampere current rating provides precise and reliable overcurrent protection for electrical circuits, protecting against overloads and short circuits.

The device features a Type D tripping characteristic, making it highly effective at managing sudden high inrush currents typically found in industrial motors and machinery. Rated for a maximum AC voltage of 400V and DC voltage of 125V, it supports a wide range of electrical systems.

The breaker offers a robust breaking capacity of 10 kA, enabling safe interruption during fault conditions, thereby enhancing electrical safety. It is engineered with thermomagnetic and electromagnetic tripping mechanisms for accurate and fast response to fault events.

Designed for quick and secure DIN rail mounting, this MCB also comes with screw terminals ensuring robust electrical connections. Its IP40 and IP20 ratings protect against solid objects and provide safe insulation for the terminals, suitable for demanding industrial environments.

Conforming to international IEC/EN 60947-2 and IEC/EN 60898-1 standards, the breaker meets strict quality and safety requirements. The compact dimensions of 69mm height, 35mm width, and 69mm depth make it suitable for distribution boards with space constraints.

Applications include protecting commercial power circuits, managing loads in industrial machinery, and ensuring safe automation system operation. The lever reset actuator provides easy manual operation for resetting after a trip event.

Designed for DIN rail mounting to enhance installation flexibility. 2-pole configuration suits diverse circuit requirements. 4 ampere current rating ideal for specific load management. Type D tripping characteristic allows fast response to high inrush currents.

Rated for 400V AC and 125V DC voltage compatibility. Provides a breaking capacity of 10 kA for effective fault interruption. Equipped with thermomagnetic and electromagnetic tripping mechanisms for precise protection. Features screw terminals and IP40/IP20 rating for installation durability.

Conforms to IEC/EN 60947-2 and IEC/EN 60898-1 standards.

This ABB Miniature Circuit Breaker stands out for its combination of safety, reliability, and compliance with industrial standards, making it a trusted choice in electrical installations. Explore more circuit breakers and automation components on EnvMart for your industrial and commercial needs.
