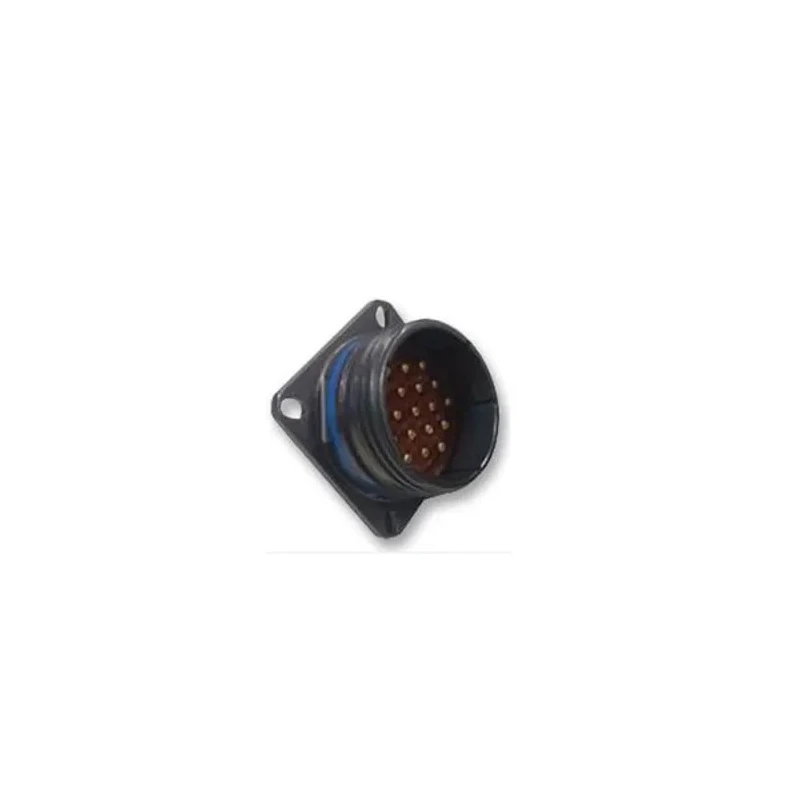

Amphenol Limited MIL-DTL-38999 Series III Copper Alloy Straight 22 Way Panel Circular Connector Female 550V D38999/20ZC35PN
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 550V |
| Brand | Amphenol Limited |
| Colour | Silver |
| Orientation | Straight |
| Current | 5A |
| Model | D38999/20ZC35PN |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | D38999 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | C13 |
| Military Standard | MIL-DTL-38999 Series III |
| Mating Type | Self-Locking |
| Connector Size | Subminiature |
| Shell Plating | Electroless Nickel |
Key Features
- Designed for panel mounting with a C13 shell size.
- Operates reliably at voltages up to 550 volts and currents up to 5 amperes.
- Features a self-locking mating type ensuring secure connections.
- Supports operating temperatures from -65°C to 200°C for harsh environments.
- Contact materials are copper alloy with gold plating for corrosion resistance.
- Termination is by crimp method for dependable electrical contact.
- Suitable for military, aeronautical, and advanced industrial applications.
- Connector configuration is straight orientation with strain relief included.
Product Description
Amphenol Limited D38999/20ZC35PN circular connector is part of the MIL-DTL-38999 Series III standard connectors, offering high-performance capabilities for rugged use in military, aerospace, and industrial applications.
This connector features a 22 way contact arrangement with male contacts housed within a silver-coloured aluminium shell, which is electroless nickel plated to provide corrosion resistance and durability.
The connector supports panel mounting with a C13 shell size and includes a self-locking mechanism that ensures reliable and secure mating during operation. Electrical specifications include a voltage rating of 550 volts and current rating of 5 amperes, making it suitable for demanding power and signal transmission tasks.
It operates reliably within temperature extremes ranging from -65°C to 200°C, making it ideal for severe environmental conditions encountered in defense and aerospace sectors. Contacts are made from copper alloy and plated with gold to enhance conductivity and prevent oxidation, enhancing long-term performance.
The termination style is crimp, ensuring a strong mechanical and electrical connection suitable for field or factory assembly. Other features include strain relief to maintain cable integrity and a straight orientation for ease of installation.
Designed for panel mounting with a C13 shell size. Operates reliably at voltages up to 550 volts and currents up to 5 amperes. Features a self-locking mating type ensuring secure connections. Supports operating temperatures from -65°C to 200°C for harsh environments.
Contact materials are copper alloy with gold plating for corrosion resistance. Termination is by crimp method for dependable electrical contact. Suitable for military, aeronautical, and advanced industrial applications. Connector configuration is straight orientation with strain relief included.
Manufactured in the United Kingdom adhering to MIL-DTL-38999 standards. This Amphenol connector is widely used in industrial electronics, aerospace, military equipment, and any application that requires rugged, high-reliability connectors.
Browse EnvMart for more Mil Spec Circular Connectors and related electronic components from leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably at voltages up to 550 volts and currents up to 5 amperes, making it suitable for demanding power and signal transmission tasks.
This connector supports operating temperatures ranging from -65°C to 200°C, which allows it to function effectively in harsh environments.
Termination is by crimp method, ensuring a strong mechanical and electrical connection suitable for both field and factory assembly.
The connector is designed for panel mounting with a C13 shell size, facilitating its installation in various applications.
The housing is made of aluminium and features electroless nickel plating for corrosion resistance. The contacts are made from copper alloy and plated with gold for enhanced conductivity.
This model features a straight orientation, which simplifies installation and connection processes.
It has a 22 way contact arrangement, which allows for multiple connections in a single unit.
It adheres to the MIL-DTL-38999 Series III standard, ensuring high-performance capabilities for rugged use.
It includes a self-locking mating type, ensuring secure connections during operation.
This model is manufactured in the United Kingdom, adhering to the specified military standards.
It is suitable for military, aeronautical, and advanced industrial applications, making it versatile for various demanding environments.
The connector features a silver color, which is typical for its type and aids in identification.
