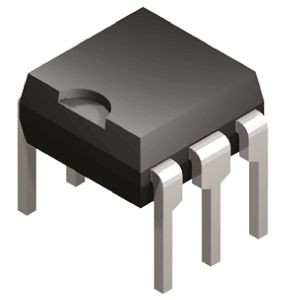

Isocom DC Input Optocoupler Through Hole 6-Pin DIP H11A1X
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Isocom |
| Model | H11A1X |
| Mount Type | Through Hole |
| Series | H11A |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Minimum Current Transfer Ratio | 50% |
| H11A1 OPTOISOLATORBrand | NEUTRAL |
Key Features
- Features a 1.5V maximum forward voltage for efficient operation.
- Designed with a single channel and 60mA maximum input current capacity.
- Includes fast typical rise and fall times of 2 microseconds each for responsive performance.
- Operates across a wide temperature range from -55°C to 100°C ensuring durability in harsh environments.
- Provides a minimum current transfer ratio of 50% for dependable signal transmission.
- Equipped with a 5.3 kVrms isolation voltage rating for high voltage safety.
- Packaged in a 6-pin dual in-line (DIP) through-hole format for easy PCB mounting.
- Meets UL standards and VDE 0801 approvals for quality assurance.
Product Description
Isocom H11A1X DC Input Optocoupler is a transistor output optocoupler designed for industrial and electronic applications requiring electrical isolation and signal transfer across circuits. This device operates with a DC input current type and is packaged in a 6-pin DIP through-hole form factor, allowing straightforward integration onto printed circuit boards.
The optocoupler maintains reliable operation with a maximum forward voltage of 1.5V and can handle a maximum input current of 60mA. It offers fast switching performance with typical rise and fall times of 2 microseconds, making it suitable for applications demanding timely signal response.
Its operating temperature range from -55°C to 100°C enables use in diverse environmental conditions, including industrial and manufacturing settings. The device provides electrical isolation up to 5.3 kVrms, ensuring safety and preventing high-voltage interference between circuits.
The minimum current transfer ratio is 50%, thus assuring effective current transfer from input to output. With compliance to UL standards and VDE 0801 approvals, the H11A1X model delivers reliable and certified performance.
The product is manufactured in Thailand and is part of the Isocom H11AA series known for quality optoelectronic components. 1.5V maximum forward voltage supports efficient input operation. 60mA maximum input current suits various signal drive requirements.
6-pin DIP through-hole package facilitates easy PCB assembly. Fast 2μs rise and fall times improve switching speeds. Wide operating temperature range from -55°C to 100°C. 5.3 kVrms isolation voltage enhances circuit safety.
Meets UL and VDE 0801 certification standards.
This optocoupler is ideal for industrial use cases including power supplies, signal isolation in control systems, electronic instrumentation, HVAC controls, and other applications requiring robust electrical isolation. It ensures protection against voltage spikes and interference while facilitating clean signal transmission.
Explore the Electronics Components category on EnvMart to find more Optocouplers and related devices for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 60mA, suitable for various signal drive requirements.
It has a typical rise time of 2 microseconds, allowing for fast switching performance.
The isolation voltage rating is 5.3 kVrms, ensuring high voltage safety between circuits.
It features a single channel design, which is typical for applications requiring electrical isolation and signal transfer.
The maximum forward voltage for this optocoupler is 1.5V, supporting efficient operation.
This model is packaged in a 6-pin dual in-line (DIP) through-hole format for easy PCB mounting.
It meets UL standards and VDE 0801 approvals, ensuring quality assurance for its performance.
The minimum current transfer ratio is 50%, which assures effective current transfer from input to output.
This optocoupler is manufactured in Thailand, as indicated in its specifications.
It is ideal for industrial applications such as power supplies, signal isolation in control systems, and electronic instrumentation.
The package type is DIP (Dual In-line Package), which facilitates straightforward integration onto printed circuit boards.
