Murata Wirewound Surface Mount Inductor 220 μH ±5% 65 mA 1210 Package Ferrite Core LQH32MN221J23L

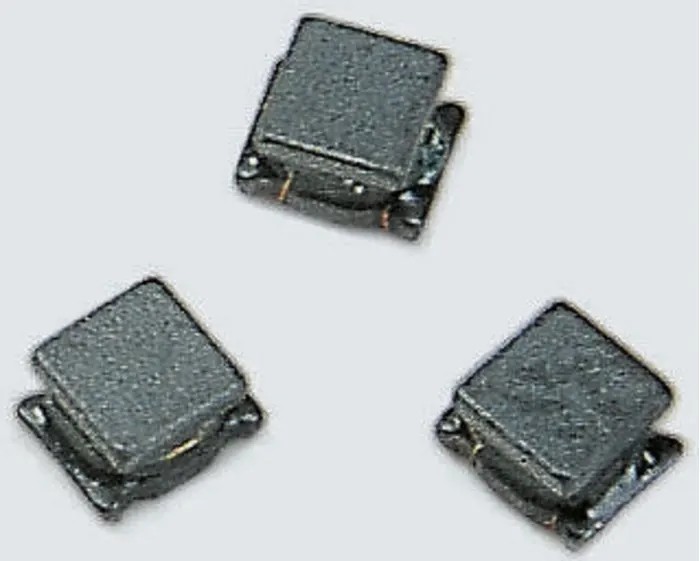

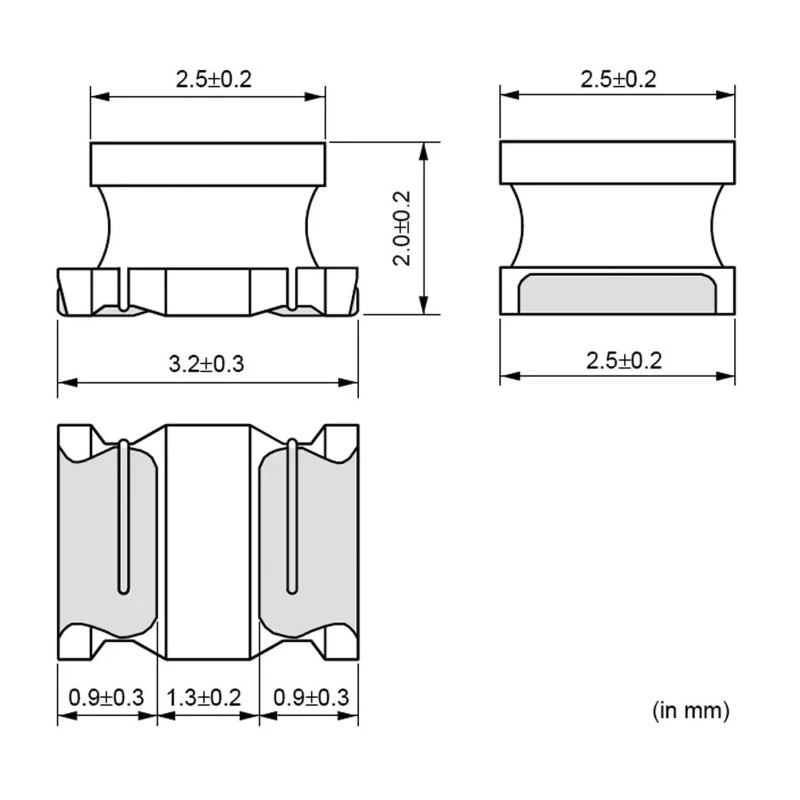

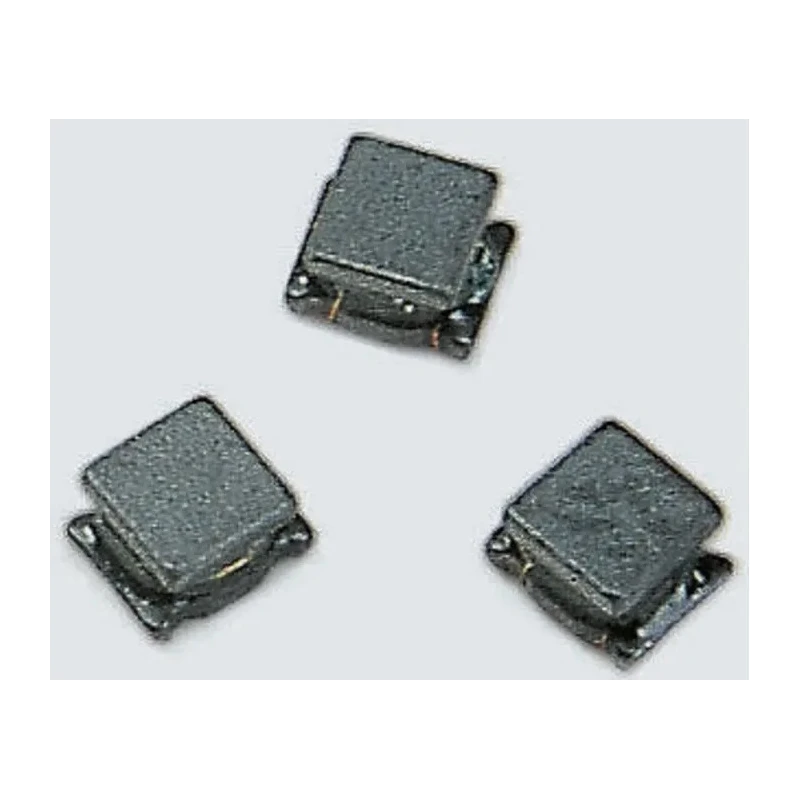

Murata LQH32MN221J23L is a high-quality wirewound surface mount inductor designed for use in electronic circuits requiring compact size and reliable inductance performance. The component features a ferrite core and occupies a 1210 package footprint measuring 3.2 mm in length, 2.5 mm in depth, and 2 mm in height.

With an inductance value of 220 μH and an inductance tolerance of ±5%, this inductor delivers precise inductive properties for demanding applications. It supports a maximum DC current of 65 mA, with a maximum DC resistance of 11.8 Ω ensuring minimal power loss during operation.

This device operates effectively in a temperature range from -40°C to 85°C, making it suitable for a variety of industrial and commercial electronic environments. The inductor is unshielded and wirewound with a termination style reliant on solder, promoting secure placement on printed circuit boards.

Featuring a maximum self-resonant frequency of 5.5 MHz and a minimum quality factor of 40, the LQH32MN221J23L is optimized for high-frequency applications including video equipment, communications, audio systems, and mobile phones. It is moulded for durability and complies with RoHS for regulatory conformity.

Constructed with a ferrite core for high magnetic permeability. Compact 1210 package case fits on surface mount designs. Embossed tape packaging supports automated soldering processes. Stable inductance and quality factor for signal integrity.

Temperature rating supports a wide operating environment. Unshielded wirewound construction for general purpose use. RoHS compliant for environmental safety standards. Ideal for industrial, telecommunications, audio, and consumer electronics.

Low DC resistance minimizes energy loss during operation. Supports reliable solder termination on circuit boards.

This Murata inductor is well-suited for enhancing the performance of electronic circuits in industrial manufacturing, laboratory equipment, telecommunications devices, audio amplifiers, and mobile technologies. Its robust construction and precise electrical characteristics ensure dependable operation in demanding real-world conditions.

Browse the Inductors category on EnvMart for more surface mount and wirewound Inductors from trusted brands including Murata to meet your project and production requirements.
