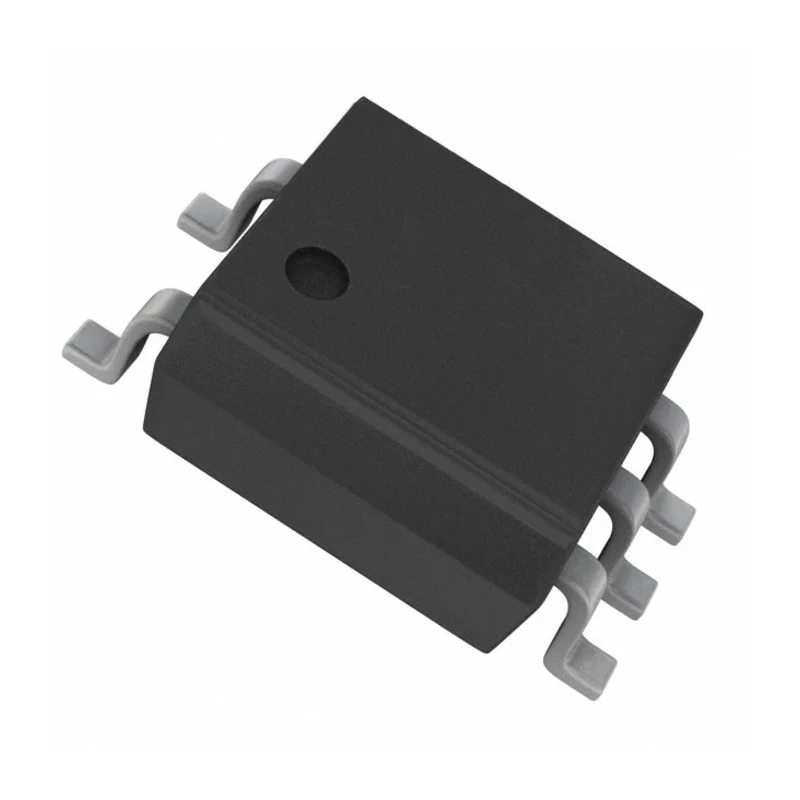

Renesas Electronics DC Input Surface Mount Photocoupler 5-Pin SO PS9151-V-F3-AX

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics DC Input Surface Mount Photocoupler 5-Pin SO PS9151-V-F3-AX

Name: Renesas Electronics DC Input Surface Mount Photocoupler 5-Pin SO PS9151-V-F3-AX
Brand: Renesas Electronics
SKU: 112481



Category Optocouplers Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Model	PS9151-V-F3-AX
Packaging	2500 pcs/Reel
Mount Type	Surface
Series	PS
Maximum Operating Temperature	100°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	20mA
Number Of Channels	1
Standards/Approvals	UL Approved:UL1577, VDE Approved:DIN EN 60747-5-5
Maximum Forward Voltage	1.8V
Number of Pins	5
Input Current Type	DC
Typical Rise Time	4ns
Standards/ApprovalsUL Approved	UL1577, VDE Approved:DIN EN 60747-5-5
UL Approved	UL1577, VDE Approved:DIN EN 60747-5-5

Key Features

Operates at a maximum forward voltage of 1.8 volts.
Designed for a maximum input current of 20 milliamps.
Features typical rise and fall times of 4 nanoseconds each.
Provides isolation voltage rating of 3750 Vrms for safety.
Functional over a wide temperature range from -40 to 100 degrees Celsius.
Contains a single channel with logic output capability.
Complies with UL1577 and DIN EN 60747-5-5 safety standards.
Packaged in reels of 2,500 units to improve production efficiency.

Product Description

Renesas Electronics PS9151-V-F3-AX is a high-performance DC input photocoupler designed for surface mounting in electronic assemblies. It features a 5-pin small outline (SO) package optimized for seamless installation in compact circuit designs. The device contains an AlGaAs LED on the input side that optically isolates the output, which is a CMOS integrated circuit, ensuring reliable signal transmission and protection against high voltage.

This optically coupled isolator is engineered for high-speed response and excellent common mode transient immunity, offering a typical rise and fall time of just 4 nanoseconds, thus making it ideal for fast switching applications. It maintains stable operation over a wide temperature range (-40 to +100°C), allowing use in harsh industrial and commercial environments.

The photocoupler supports a maximum forward input voltage of 1.8 V and a maximum input current of 20 mA, providing efficient electrical isolation with an isolation voltage rating of 3750 Vrms. It features a single channel with logic output, enabling seamless integration into control systems and signal processing circuits.

Certified to UL1577 and DIN EN 60747-5-5 standards, the PS9151-V-F3-AX meets rigorous safety and quality benchmarks required in industrial, laboratory, manufacturing, and electronic equipment applications.

Packaged in reels of 2,500 pieces, this photocoupler is supplied ready for insertion into automated assembly machinery, enhancing production efficiency and throughput. Operates at a maximum forward voltage of 1.8 volts. Maximum input current rating of 20 milliamps ensures reliability.

High isolation voltage of 3750 Vrms for electrical safety. Wide operating temperature range from -40 to 100 degrees Celsius. Compliant with UL1577 and DIN EN 60747-5-5 approvals. Single channel configuration with logic output capability.

Compact 5-pin SO surface mount package design. AlGaAs LED and CMOS output IC for superior performance. Ideal for industrial, laboratory, and electronic manufacturing uses. Packaged in 2500 pcs reels for efficient handling.

Explore a wide selection of Optocouplers and related electronic components on EnvMart to find compatible parts for your industrial and commercial electronics projects.
