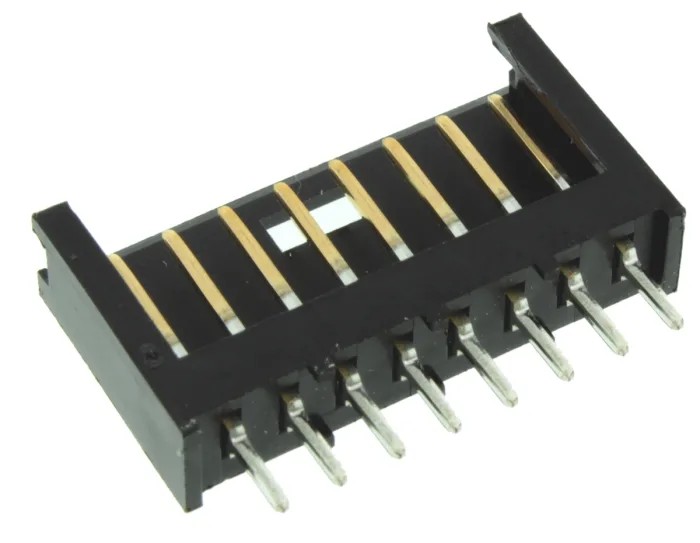

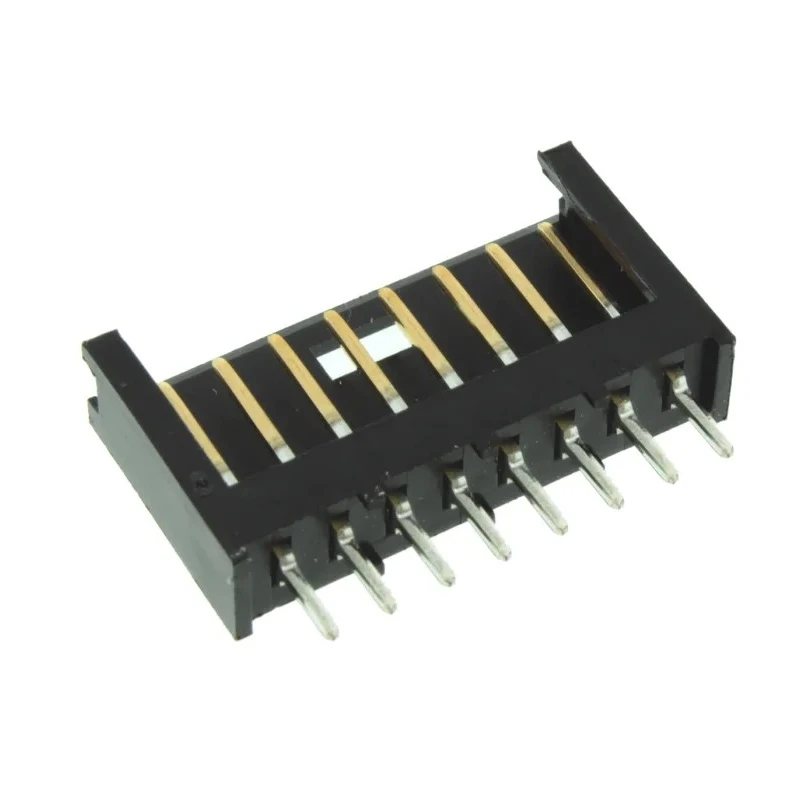

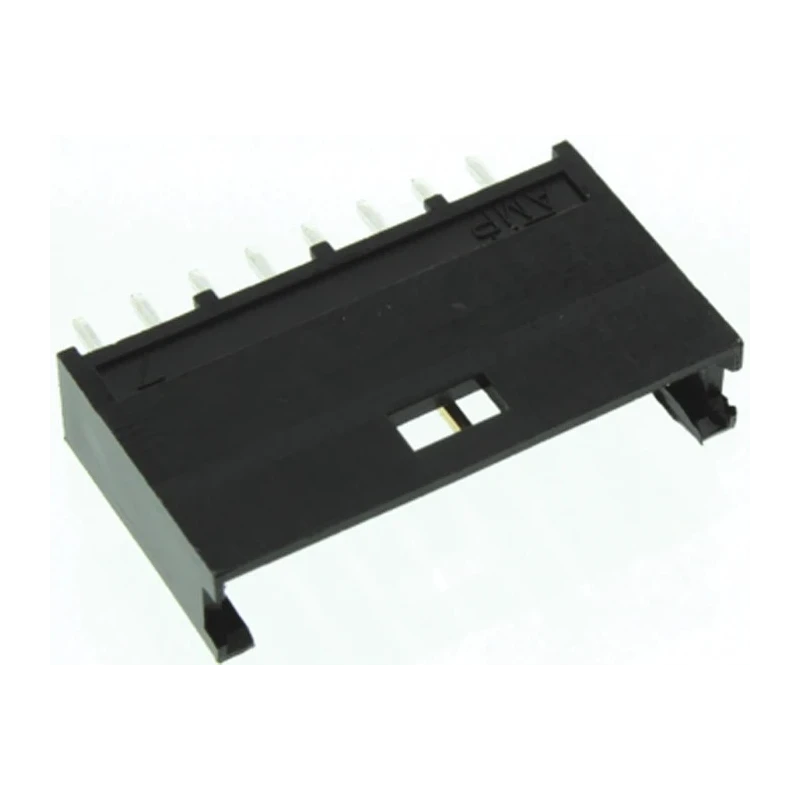

TE Connectivity AMPMODU Mod II 2.54 mm Shrouded Straight Through Hole PCB Header, 8 Contacts, 1 Row, Gold Plated 280373-2

TE Connectivity 280373-2 AMPMODU Mod II Series 2.54 mm Shrouded PCB Header is a straight through hole connector featuring 8 male contacts arranged in a single row with a 2.54 mm pitch. The thermoplastic housing is polarized and shrouded on three sides to protect pins and prevent incorrect connections, ensuring secure and reliable mating with matching receptacle connectors. The gold-plated brass contacts provide excellent electrical performance and durability, suitable for a wide range of PCB interconnect applications.

This PCB header is designed for robust solder termination with a 3.5 mm tail pin length and supports through hole mounting suitable for assembly in demanding industrial environments. The product operates reliably in temperature extremes ranging from -65°C up to 105°C and accommodates voltages up to 750 V. The positive locking detent mechanism in the housing enhances mechanical security during use.

It is widely used in automotive electronics, industrial control systems, test and measurement equipment, computers, telecommunications infrastructure, medical devices, storage systems, and household appliances, reflecting its versatility and reliability in critical electronic systems.

The AMPMODU Interconnect System is a recognized standard in automation and control, providing economical and compact connectors used for board-to-board and wire-to-board interconnections with assured performance in industrial applications.

The 2.54 mm pitch and 1-row configuration allow compact printed circuit board layouts. Shrouded housing with polarization prevents mismating and protects contact pins. Gold-plated brass contacts ensure high conductivity and corrosion resistance.

Solder termination type with a 3.5 mm tail pin length facilitates secure solder joints. Wide operating temperature range ensures use in adverse conditions. Rated for 750 V maximum voltage for industrial-grade applications.

Robust mechanical locking mechanism enhances connection stability. Suitable for various electronics including automotive, telecom, and medical devices.

For detailed technical documents and 3D models, TE Connectivity provides comprehensive resources to assist in PCB and mechanical design. Explore the PCB Headers category on EnvMart for related high-quality connectors to complete your assembly requirements.
