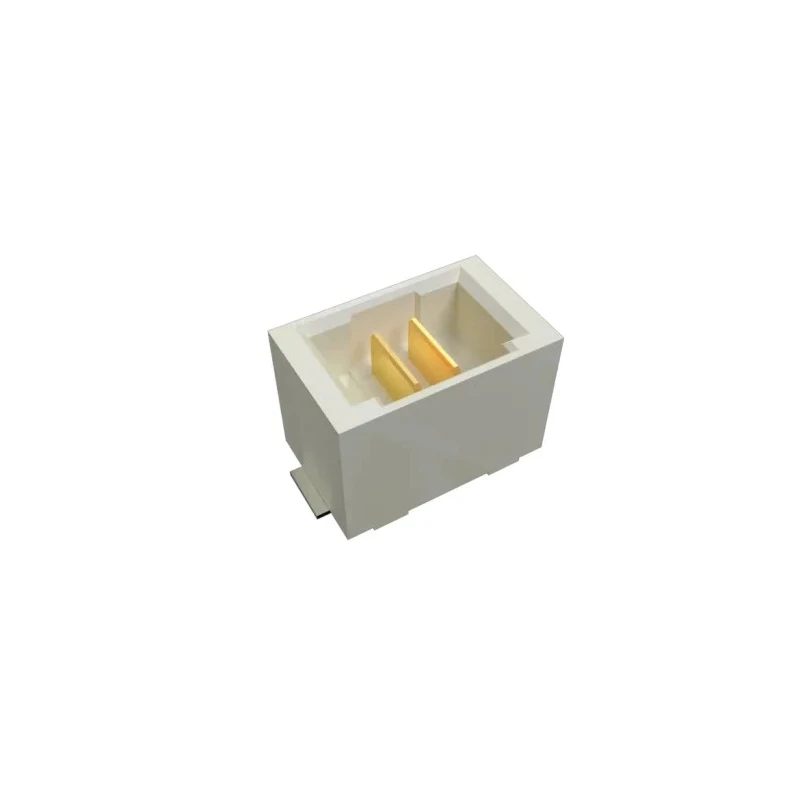

Amphenol Communications Solutions PowerStak Series Vertical Surface PCB Header 2 Contacts 2 mm Pitch 10159560-200421RLF
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 20A |
| Model | 10159560-200421RLF |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | PowerStak |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The connector is part of the PowerStak series providing reliable board-to-board connection.
- It has a current rating of 20 A suitable for demanding electronics applications.
- Constructed with liquid crystal polymer housing offering mechanical strength and thermal stability.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- The header supports operating temperatures from -40°C up to 125°C for versatile environmental use.
- Shrouded design provides protection and alignment for secure mating.
- Solder termination type enables robust and durable soldered connections.
- Compliant with RoHS standards promoting environmental and health safety.
Product Description
Amphenol Communications Solutions model 10159560-200421RLF is a vertical surface mount PCB header from the PowerStak series, engineered for board-to-board electronic connectivity. This component features 2 gold-plated copper alloy contacts with a precise 2 mm pitch, offering a current rating of 20 A and voltage rating up to 200 V. The liquid crystal polymer housing ensures high mechanical durability and thermal resistance suitable for industrial, laboratory, and manufacturing environments.
The header supports operating temperatures from -40°C to 125°C, making it ideal for applications exposed to wide temperature ranges. Its shrouded design enhances connector mating reliability and mechanical protection, while the male contact gender and solder termination provide excellent electrical contact integrity.
Compliant with RoHS and halogen-free environmental standards, this header exemplifies sustainable electronics component design. It suits diverse applications including industrial automation, telecommunications, power distribution, and electronic assembly in demanding conditions.
The product is manufactured in China and integrates well within advanced PCB assemblies requiring compact, reliable, and high-performance connectors. The connector is part of the PowerStak series providing reliable board-to-board connection.
It has a current rating of 20 A suitable for demanding electronics applications. Constructed with liquid crystal polymer housing offering mechanical strength and thermal stability. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
The header supports operating temperatures from -40°C up to 125°C for versatile environmental use. Shrouded design provides protection and alignment for secure mating. Solder termination type enables robust and durable soldered connections.
Compliant with RoHS standards promoting environmental and health safety. Explore more Amphenol Communications Solutions PCB Headers and related components on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20 A, making it suitable for demanding electronics applications.
The voltage rating for this header is up to 200 V.
It features a housing made of liquid crystal polymer and contacts made from gold-plated copper alloy, ensuring excellent conductivity and corrosion resistance.
The header supports operating temperatures from -40°C to 125°C, allowing for versatile environmental use.
This unit has 2 contacts arranged in a single row.
It utilizes a solder termination type, enabling robust and durable soldered connections.
The pitch of the contacts is 2 mm.
Yes, it is compliant with RoHS standards, promoting environmental and health safety.
This model has a vertical orientation, designed for surface mounting.
It is part of a board-to-board connector system, suitable for various electronic applications.
The product is manufactured in China.
This header is suitable for applications in industrial automation, telecommunications, power distribution, and electronic assembly in demanding conditions.
