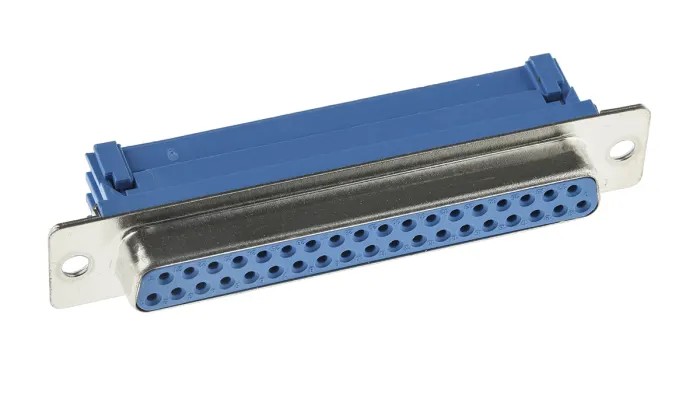

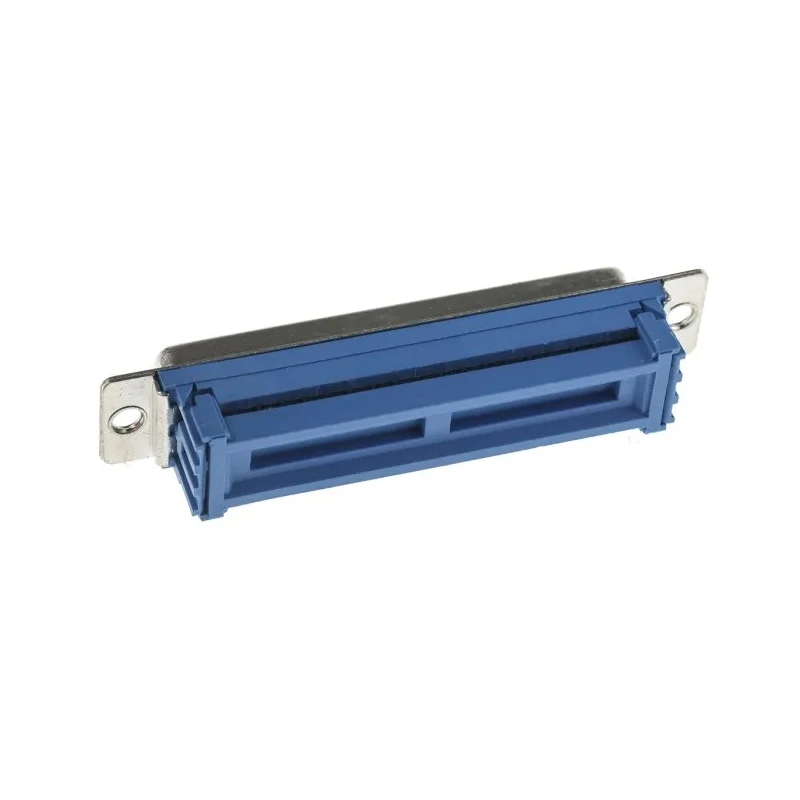

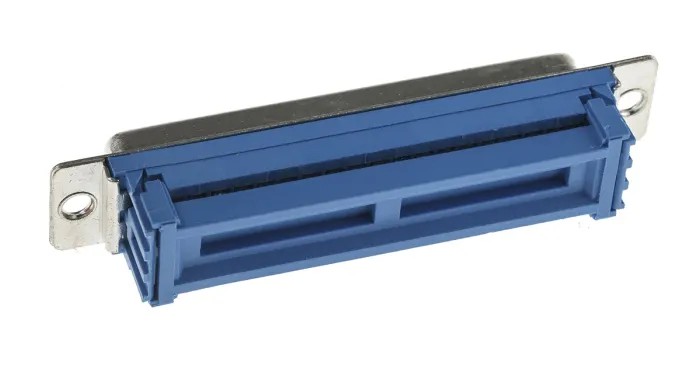

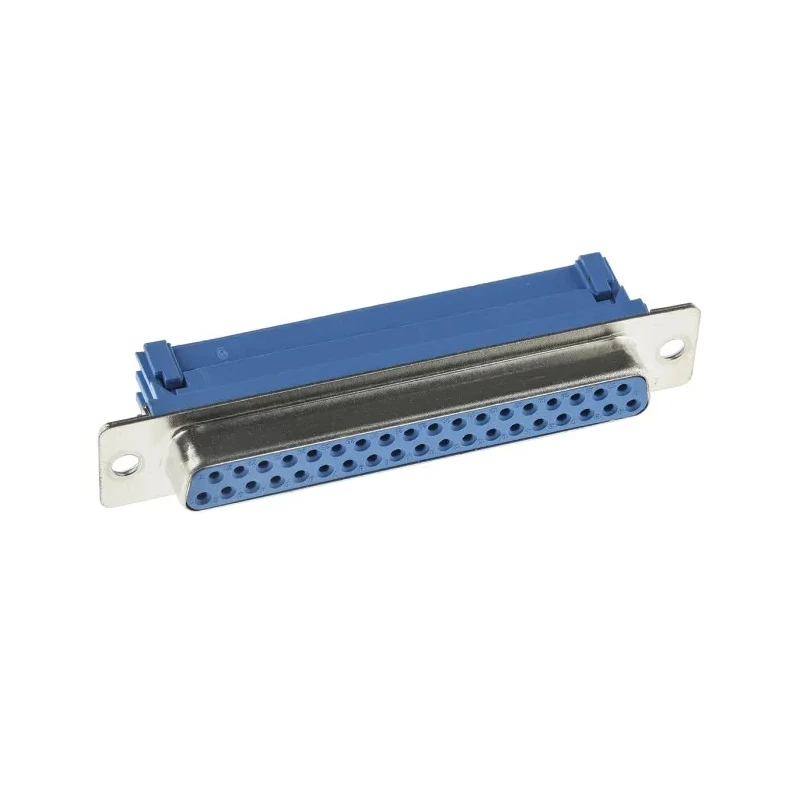

RS PRO 37 Way Straight 1.27 mm Pitch Cable D-Sub Connector Female 137-963

RS PRO 137-963 37 Way Straight 1.27 mm Pitch Cable D-Sub Connector Female is a high-quality electronic component designed for reliable and efficient signal connections in industrial and commercial applications.

This connector is characterized by a robust metal housing with grounding indents that offer excellent EMI and RFI protection, ensuring signal integrity in noisy environments. It incorporates 37 contacts placed at a 1.27 mm pitch, enabling high-density cable termination, particularly suited for flat ribbon cables with 26 to 28 AWG wire sizes.

Each contact is made from copper alloy and features a bright tin finish plating that enhances corrosion resistance and conductivity. The connector is rated for a voltage of 250V and a current capacity of 1A, supporting demanding electronic circuitry with reliable power delivery.

The device operates within a broad temperature range from -55°C to 105°C, making it suitable for harsh environmental conditions. The termination method is IDC (Insulation Displacement Contact), streamlining the termination process for mass cable assembly without the need for stripping wires.

Compliance with BS9523 and MIL - C - 24308 size standards ensures interoperability and industry recognition. Additionally, the connector includes a strain relief clamp that secures the cable mechanically, reducing strain on the contacts and prolonging service life.

Features 37 contacts designed for straight cable mounting. 1.27 mm pitch for high-density connections. Metal housing with grounding indents for EMI/RFI protection. Copper alloy contacts with tin plating for durability and conductivity.

Rated voltage 250V and current 1A for reliable operation. Wide operating temperature range from -55°C to 105°C. IDC termination type for efficient mass cable assembly. Complies with BS9523 and MIL - C - 24308 size standards.

Includes strain relief clamp to secure cable termination. Female connector gender for flat ribbon cable applications.

This RS PRO cable D-Sub Connector is well-suited for applications in industrial electronics, telecommunications, laboratory equipment, and other sectors requiring robust and dependable cable connectivity solutions.
