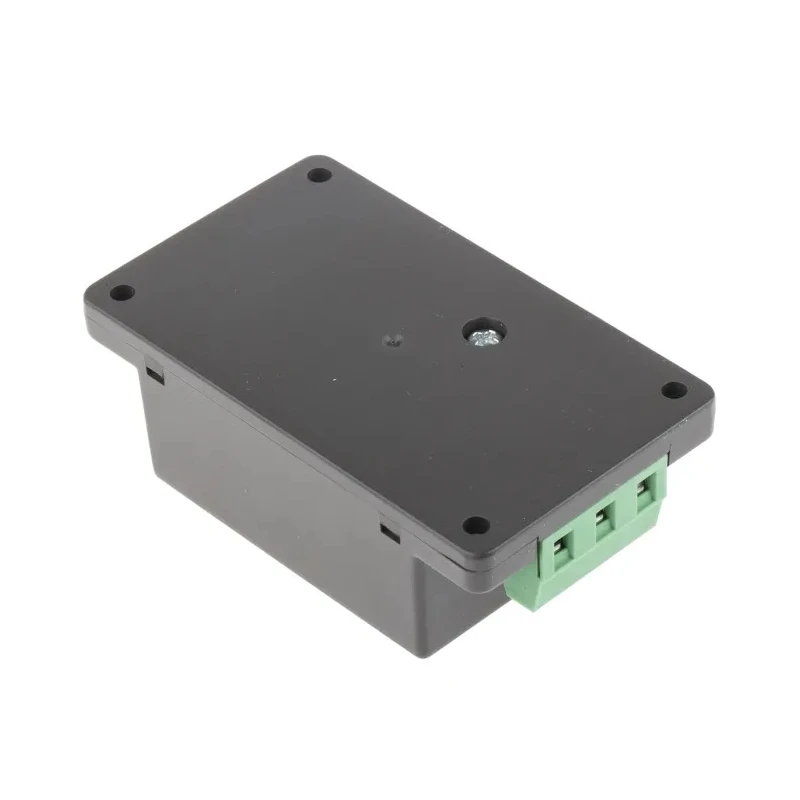

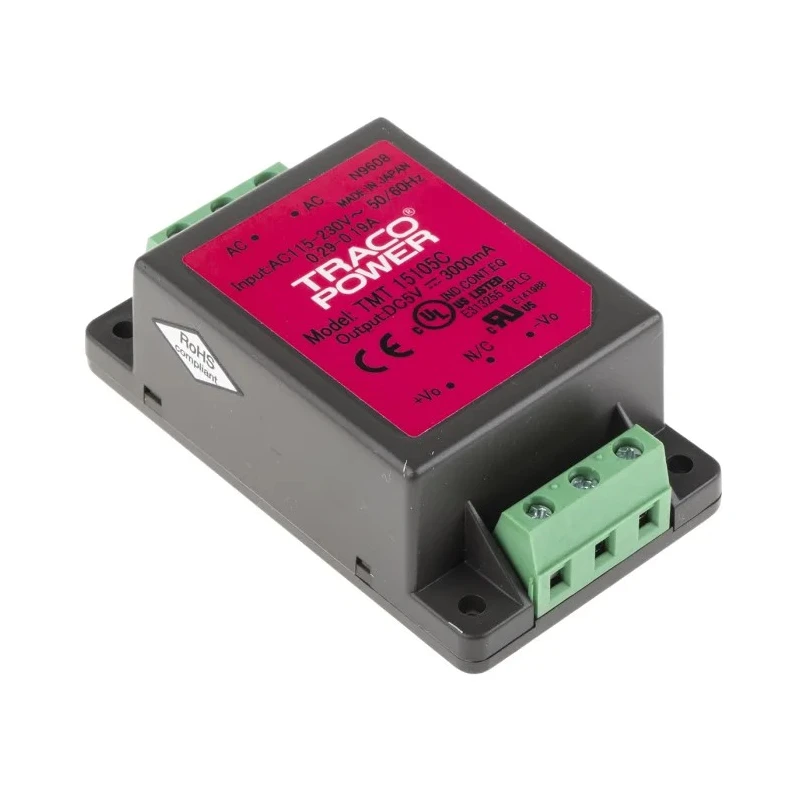

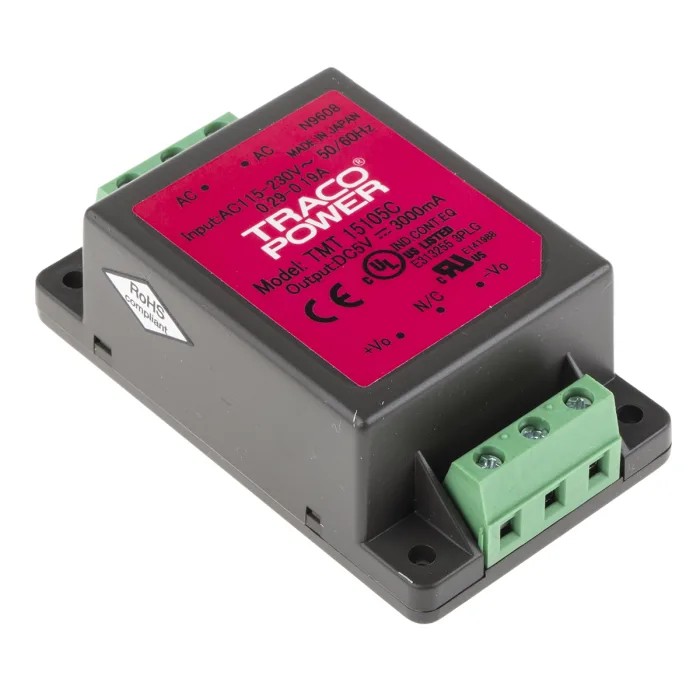

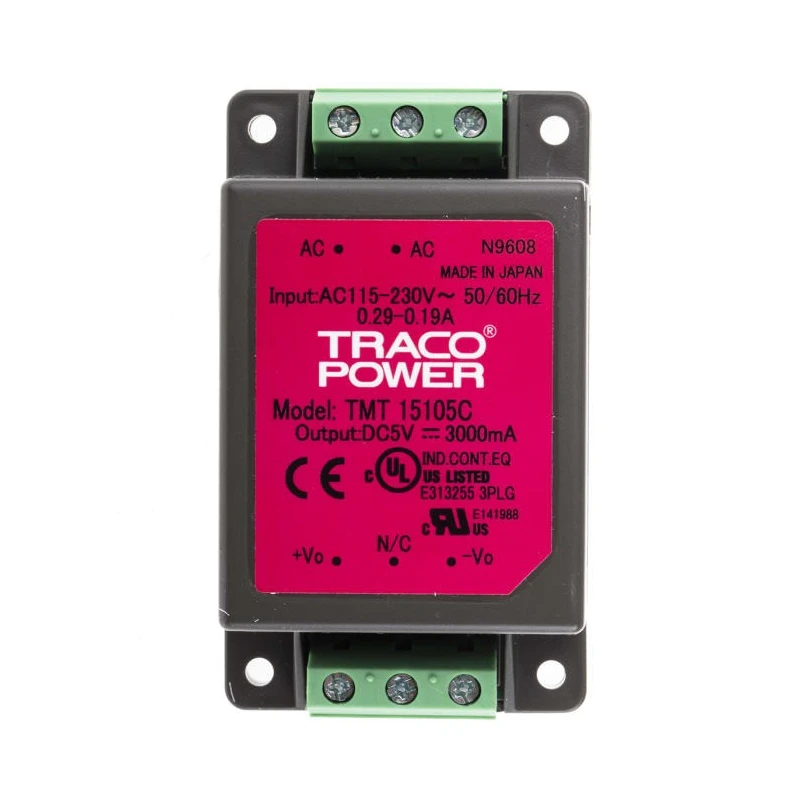

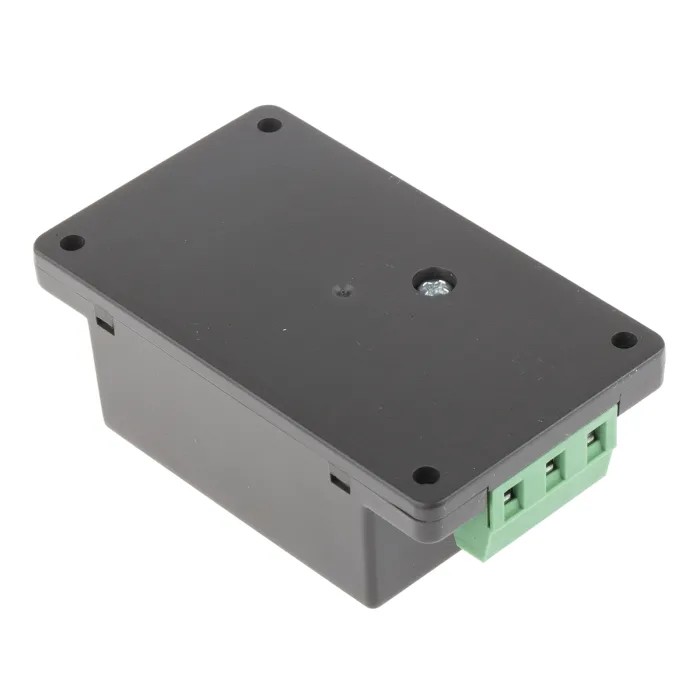

TRACOPOWER 15W 5V DC Single Output Chassis Mount Switching Power Supply TMT 15105C

TRACOPOWER TMT 15105C is a high-quality 15W AC/DC switching power supply engineered for embedded electronic system applications. This chassis-mount power supply delivers a regulated 5V DC output current of up to 3A, suitable for powering a variety of industrial and commercial electronic devices.

It accepts a universal input voltage range of 85VAC to 264VAC and 85VDC to 370VDC, enabling versatile use in diverse electrical environments. The unit is compact and robust, encapsulated in a fully enclosed chassis suitable for mounting via screw terminals, ensuring a secure installation.

Safety and reliability are paramount with features including short circuit and overload protection, alongside an input-output isolation voltage of 4kVAC RMS. The device maintains operational integrity within a broad temperature range from -25°C to 50°C, with a derating rate of 2.5% per °C beyond 50°C, complying with industrial requirements.

The TMT 15105C meets important safety and electromagnetic compatibility certifications: UL/cUL 508, UL 60950-1, UL 60601-1, CSA C22.2 No. 60950-1-03, IEC/EN standards including 61000 series for EMC, and RoHS compliance ensuring environmental safety.

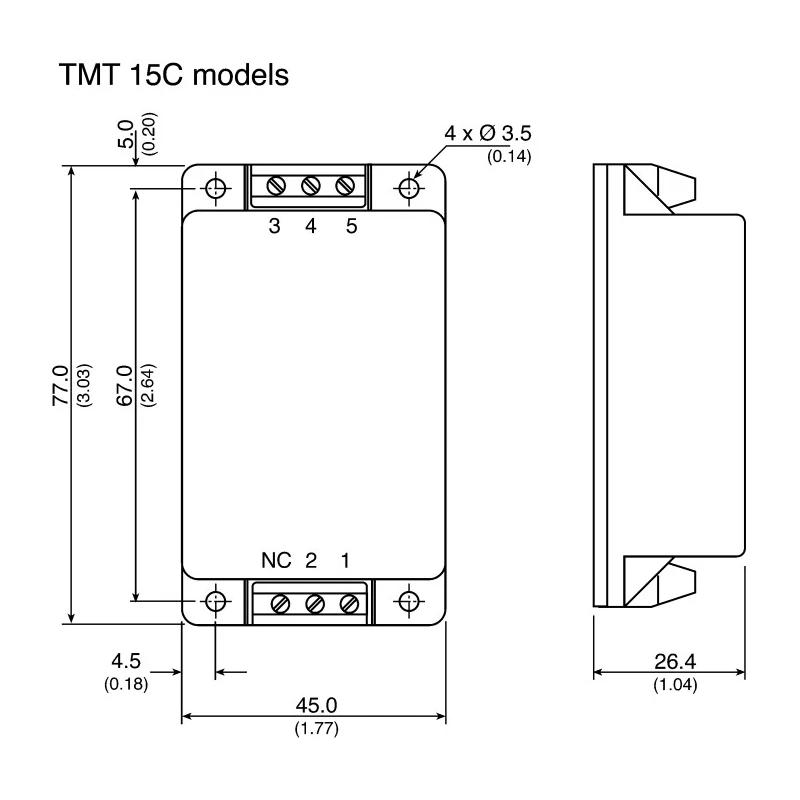

Its compact form factor measuring 77mm length, 45mm width, and 26.4mm depth with a lightweight of 90 grams makes it ideal for space-constrained applications. The power supply operates with an efficiency of 83%, contributing to lower energy consumption and thermal dissipation.

Ultra-compact and encapsulated chassis-mount power supply. Wide input voltage range AC/DC compatibility. Short circuit and overload protection for safe operation. Input to output isolation voltage of 4kVAC RMS. Compliance with multiple safety and EMC standards.

Suitable for industrial and commercial electronic equipment use. Operates reliably across -25°C to 50°C ambient temperature. Compact size with screw terminal mounting. Manufactured in Japan ensuring high quality and reliability.

This power supply is widely used in industrial machines, measuring instruments, automation devices, and other electronic equipment requiring reliable low voltage DC power. The robust design coupled with multiple international certifications provides assurance of durability and safe deployment.
