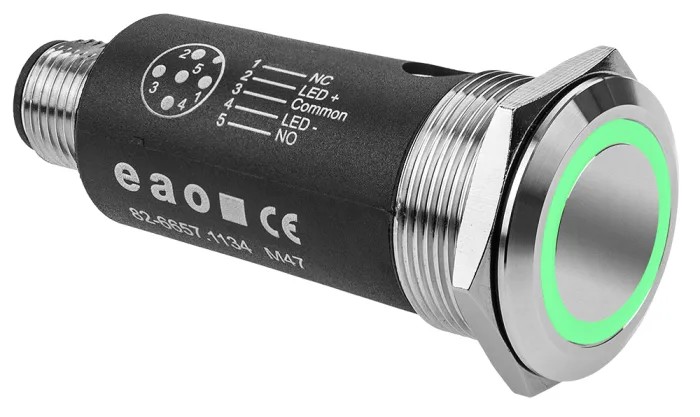

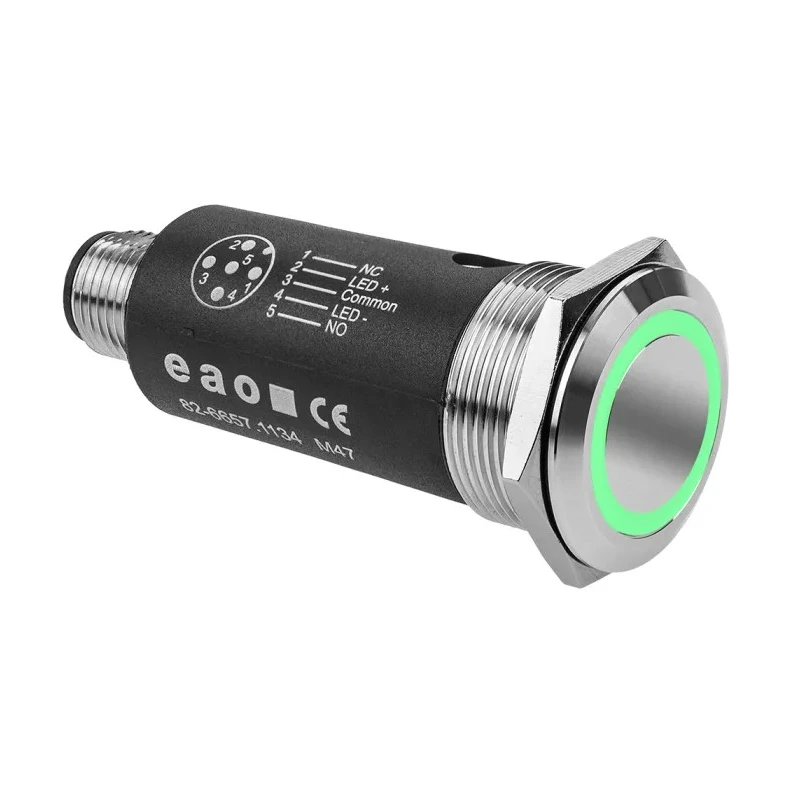

EAO Illuminated Push Button SPDT, Latching, Panel Mount, 22 mm Cutout, Green LED, IP65 IP67, 35 V dc, Model 82-6657.2134
Specifications
| Country of Origin | China |
|---|---|
| Brand | EAO |
| Length | 62mm |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Series | 82 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 35V dc |
| Actuator Style | Round |
| Switch Contact Current | 500mA |
| Contact AC Voltage | 35V ac |
Key Features
- The actuator is silver colored and made of stainless steel 316L for durability.
- Switch operation is latching, allowing it to maintain its state until reset.
- Designed for panel mounting with a 22 mm cutout diameter.
- Supports both DC and AC contact voltage of 35 volts with a switch contact current of 500 mA.
- Rated IP65 and IP67 for dust and water protection.
- Green LED illumination enhances visibility and indication.
- Screw-type terminals ensure secure connections.
- Operates reliably between temperatures of -30°C and 70°C.
Product Description
EAO 82-6657.2134 Illuminated Push Button SPDT is a robust, reliable latching switch designed for panel mounting with a 22 mm cutout diameter. It features a high-quality stainless steel 316L actuator with a silver finish, providing enhanced durability and an attractive appearance. The push button is illuminated by a green LED, making it ideal for visibility in control panels and automation systems.
This push button switch supports SPDT contact configuration with silver contacts, capable of handling a contact current of 500 mA at 35 volts DC or AC. It offers robust protection with an IP65 and IP67 rating, ensuring resistance to dust ingress and water jets or immersion, making it suitable for challenging industrial and manufacturing environments.
The device operates within a wide temperature range of -30°C to 70°C, allowing dependable function in various industrial, electrical, and automation applications. Installation is straightforward with the panel mount design and screw-type terminals for secure wiring connections.
The EAO 82 Series push button is compliant with RoHS standards, assuring environmentally responsible manufacturing. It is an ideal component for electrical and automation panels requiring illuminated, latching switching with durable construction and reliable operation.
The actuator is silver colored and made of stainless steel 316L for durability. Switch operation is latching, allowing it to maintain its state until reset. Designed for panel mounting with a 22 mm cutout diameter. Supports both DC and AC contact voltage of 35 volts with a switch contact current of 500 mA.
Rated IP65 and IP67 for dust and water protection. Green LED illumination enhances visibility and indication. Screw-type terminals ensure secure connections. Operates reliably between temperatures of -30°C and 70°C.
This illuminated push button switch is suitable for applications in industrial automation, electrical control panels, manufacturing machinery, and HVAC systems, where visible and reliable push control is essential. Explore more from the EAO 82 Series for versatile and robust panel-mounted switches.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing it to control multiple circuits with a single switch.
It can operate reliably at a maximum temperature of 70°C, making it suitable for various industrial applications.
This unit requires a panel cutout size of 22 mm for proper installation.
It is equipped with screw-type terminals, ensuring secure and reliable connections during installation.
The switch is rated IP65 and IP67, providing protection against dust ingress and water jets or immersion.
It can handle a contact current of 500 mA, making it suitable for various electrical applications.
The push button features a green LED illumination, enhancing visibility and indication in control panels.
The minimum operating temperature is -30°C, allowing it to function in colder environments.
Yes, it is compliant with RoHS standards, ensuring environmentally responsible manufacturing.
It supports both DC and AC contact voltages of 35 volts, providing versatility for different applications.
The actuator is made of stainless steel 316L, providing durability and an attractive appearance.
It is suitable for applications in industrial automation, electrical control panels, manufacturing machinery, and HVAC systems.
