Phoenix Contact MC 1.5/10-ST-3.81 Series Pluggable Terminal Block 10-Contact 3.81 mm Pitch 1 Row 160V 8A 1803659

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MC 1.5/10-ST-3.81 Series Pluggable Terminal Block 10-Contact 3.81 mm Pitch 1 Row 160V 8A 1803659

Name: Phoenix Contact MC 1.5/10-ST-3.81 Series Pluggable Terminal Block 10-Contact 3.81 mm Pitch 1 Row 160V 8A 1803659
Brand: PHOENIX CONTACT
SKU: 111148



Category Pluggable Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	160V
Brand	Phoenix Contact
Colour	Green
Orientation	Horizontal
Current	8A
Length	16.1mm
Model	1803659
Depth	11.1mm
Width	38.89mm
Housing Material	Polyamide
Series	MC 1.5/10-ST-3.81
Number of Rows	1
Pitch	3.81mm
Number of Contacts	10
Connector Gender	Female
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw

Key Features

Supports current up to 8 A for demanding applications.
Features screw wire connection method for secure and fast installation.
Constructed from durable polyamide housing material with a green color.
Compatible with wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).
Horizontal orientation with a length of 16.1 mm, width 38.89 mm, and depth 11.1 mm.
Designed with polarizing keys to prevent misalignment during assembly.
Compact 1-row design simplifies board integration with standard 3.81 mm pitch.
Ideal for industrial, electronic component, and automation system applications.

Product Description

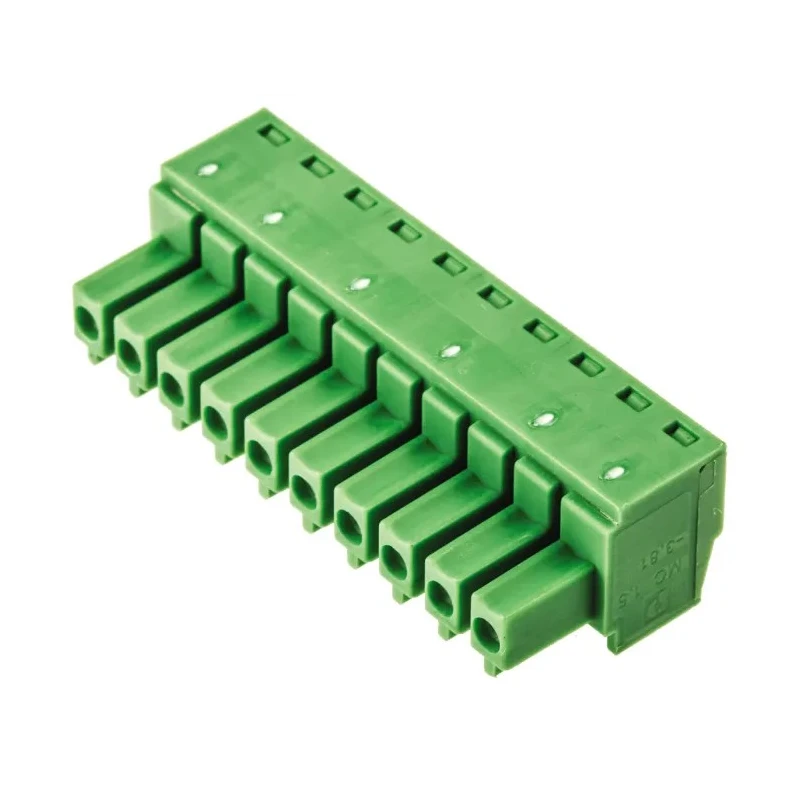

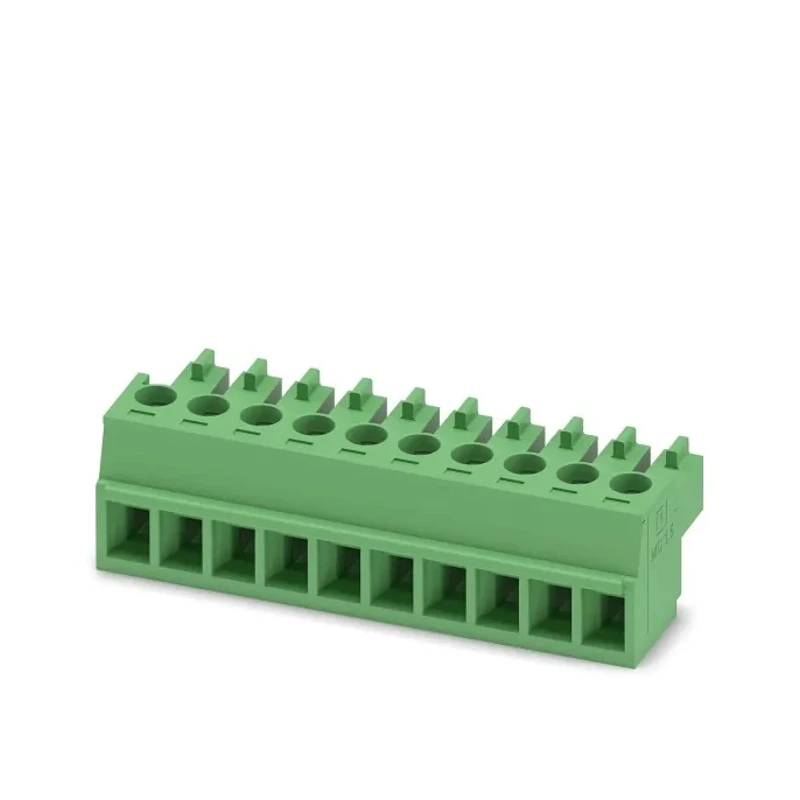

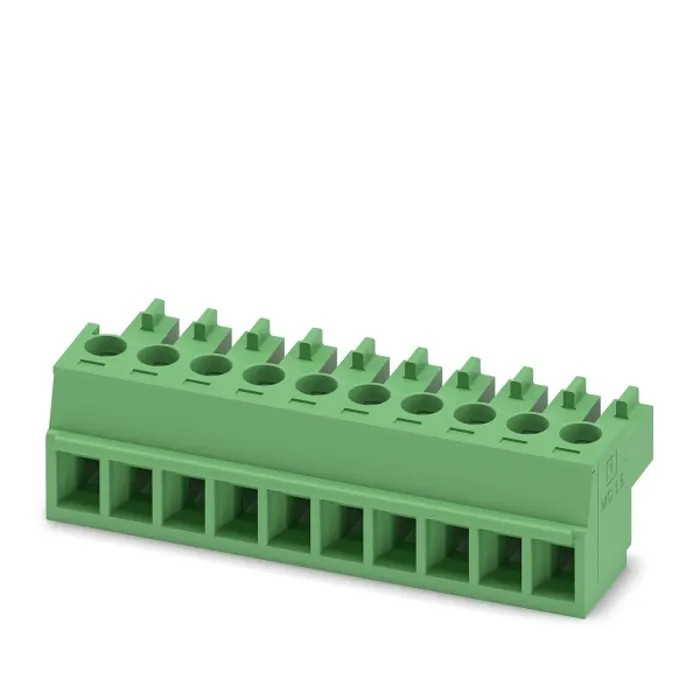

Phoenix Contact 1803659 MC 1.5/10-ST-3.81 Series Pluggable Terminal Block provides dependable electrical connection with a 10-contact configuration and a 3.81 mm pitch in a single-row layout. Rated for currents up to 8 A and voltages up to 160 V, it is designed for robust industrial and electronic applications requiring secure and efficient wiring.

The terminal block features screw-type wire connections allowing quick and firm installation without special tools. Its durable polyamide housing resists mechanical wear, while the green color coding facilitates easy identification. The block supports wire cross-sections ranging from 0.14 mm² to 1.5 mm², accommodating 28 AWG to 16 AWG wire sizes.

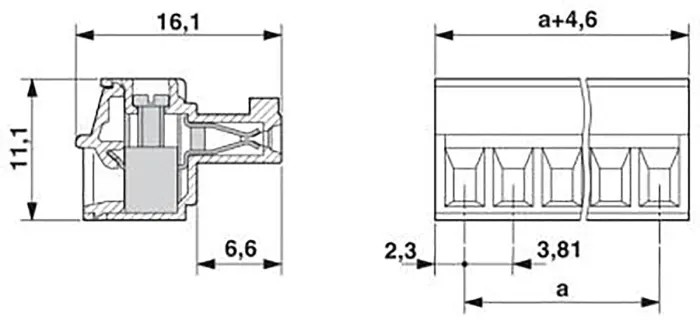

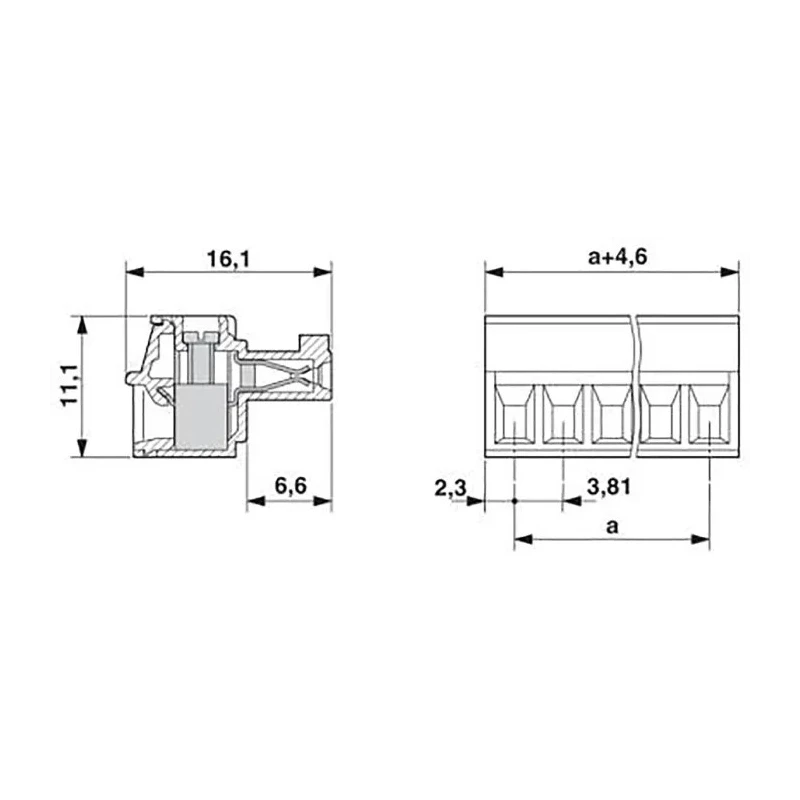

Its horizontal orientation with dimensions 16.1 mm length, 38.89 mm width, and 11.1 mm depth makes it suitable for compact PCB layouts. Polarizing keys designed into the block ensure safe mating with compatible headers, preventing misalignment and potential damage. Tin-plated copper contacts ensure excellent conductivity for smooth power transfer. Originating from Germany, this terminal block meets high industrial quality standards.

This product is ideal for use in industrial machines, electronic devices, power control systems, automation equipment, and other commercial electronic assemblies requiring a reliable pluggable terminal block solution.

Supports current up to 8 A for demanding applications. Features screw wire connection method for secure and fast installation. Constructed from durable polyamide housing material with a green color. Compatible with wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).

Horizontal orientation with a length of 16.1 mm, width 38.89 mm, and depth 11.1 mm. Voltage rating is 160 V ensuring safety in electrical circuits. Designed with polarizing keys to prevent misalignment during assembly. Compact 1-row design simplifies board integration with standard 3.81 mm pitch.

Ideal for industrial, electronic component, and automation system applications. Explore the wide range of Phoenix Contact products and find industry-leading terminal blocks for your electrical and automation projects on EnvMart.
