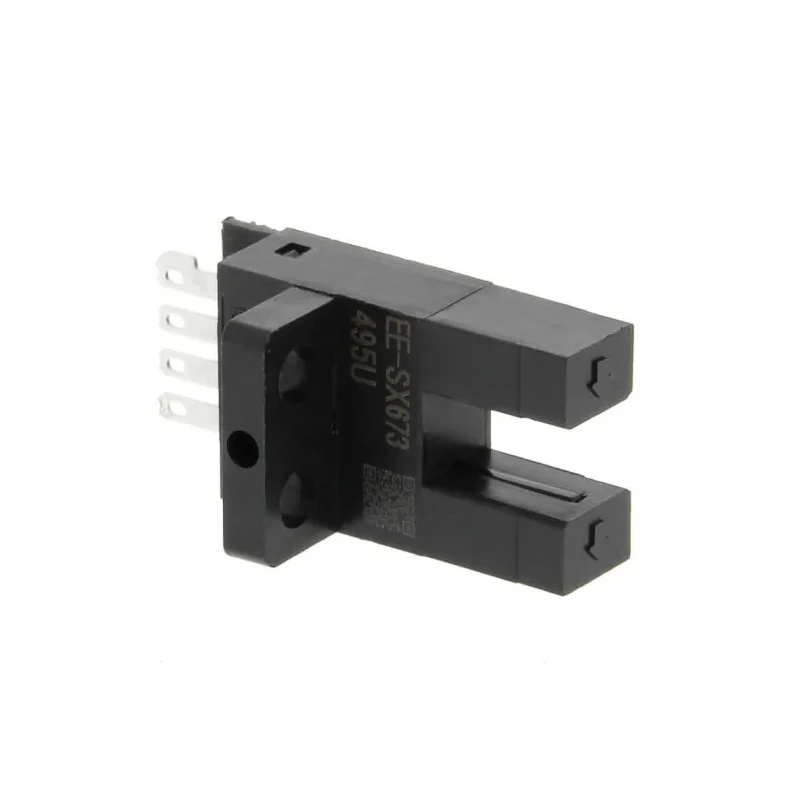

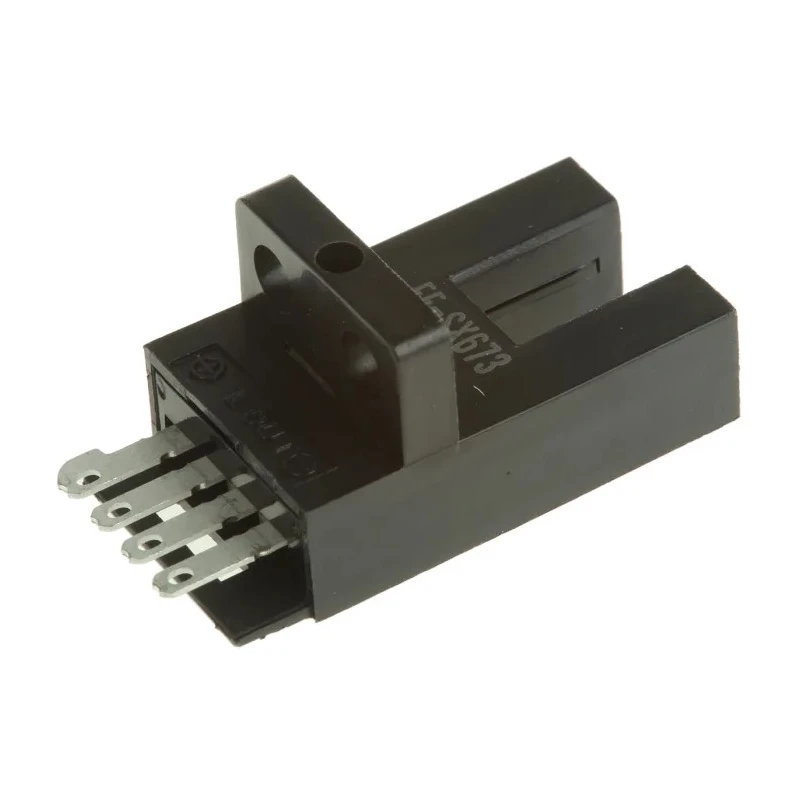

Omron Through Beam Photoelectric Sensor Fork Style 5 mm Detection Range NPN Output IP50 EE-SX673

Omron EE-SX673 is a high-precision through beam Photoelectric Sensor with a fork-style design, providing a 5 mm detection range. It employs infrared light technology for accurate object detection, making it well suited for automation, manufacturing, and industrial control applications.

This sensor features an NPN output type compatible with a range of control systems and has an IP50 protection rating that guards against dust ingress, ensuring reliable operation in factory environments. The rugged polybutylene terephthalate (PBT) housing enhances durability and long-term performance.

With a fast response time of 0.17 milliseconds, the EE-SX673 enables efficient processing speeds in assembly lines, conveyor systems, and robotic detection tasks. It operates reliably within a wide temperature range from -25°C up to +55°C, supporting diverse climatic conditions.

The sensor accepts a maximum DC voltage of 24 V and can handle currents up to 100 mA. Its compact fork sensor form factor allows easy installation in tight spaces and close proximity to target parts.

Applications include precision detection for assembly lines, position sensing for automation equipment, counting objects on conveyors, sorting in material handling, and movement detection in robotics. This sensor is not suitable for outdoor use or exposure to water.

NPN output ensures compatibility with control systems. Infrared light enhances detection reliability. Fast 0.17 ms response time improves efficiency. IP50 rated housing protects against dust. Operating temperature from -25°C to +55°C.

Compact fork-style design for close mounting. Maximum DC voltage 24 V and current 100 mA. Durable polybutylene terephthalate housing. Ideal for industrial automation and robotics applications. Explore the comprehensive range of Omron sensors and photoelectric detection solutions in the Electronics & Electricals category on EnvMart.
