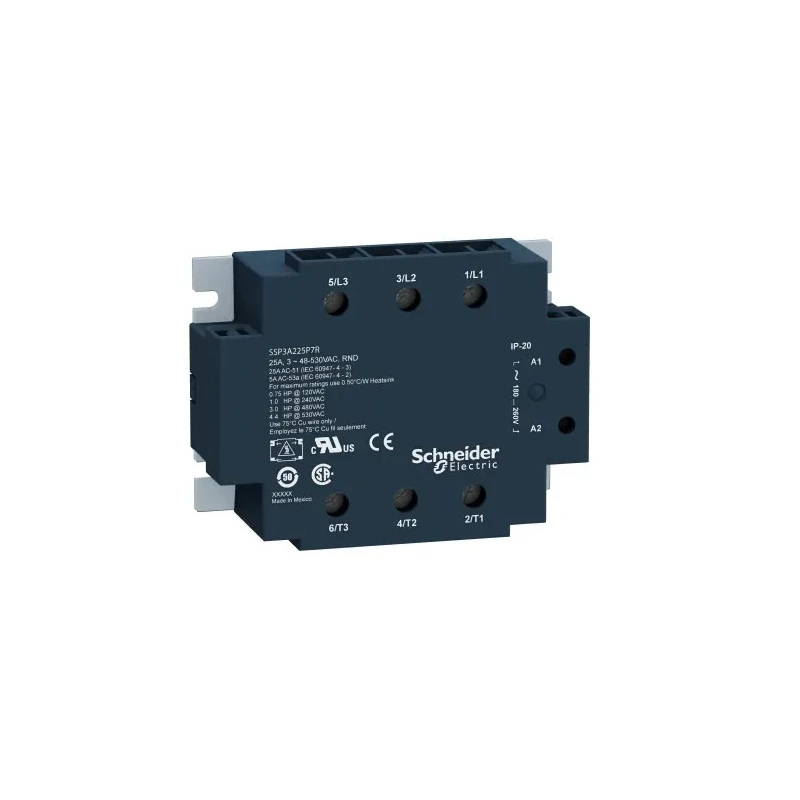

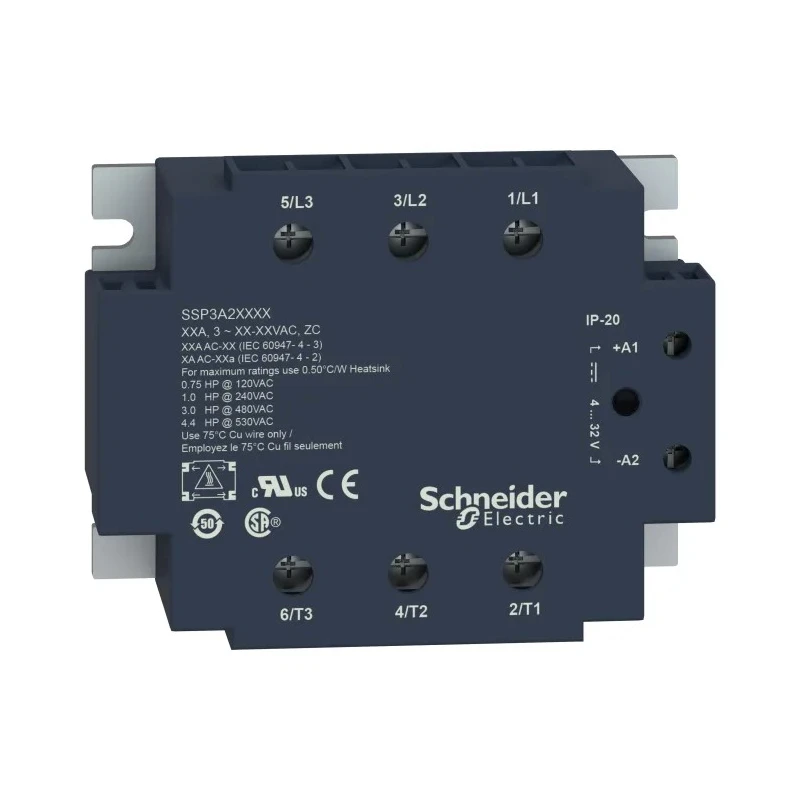

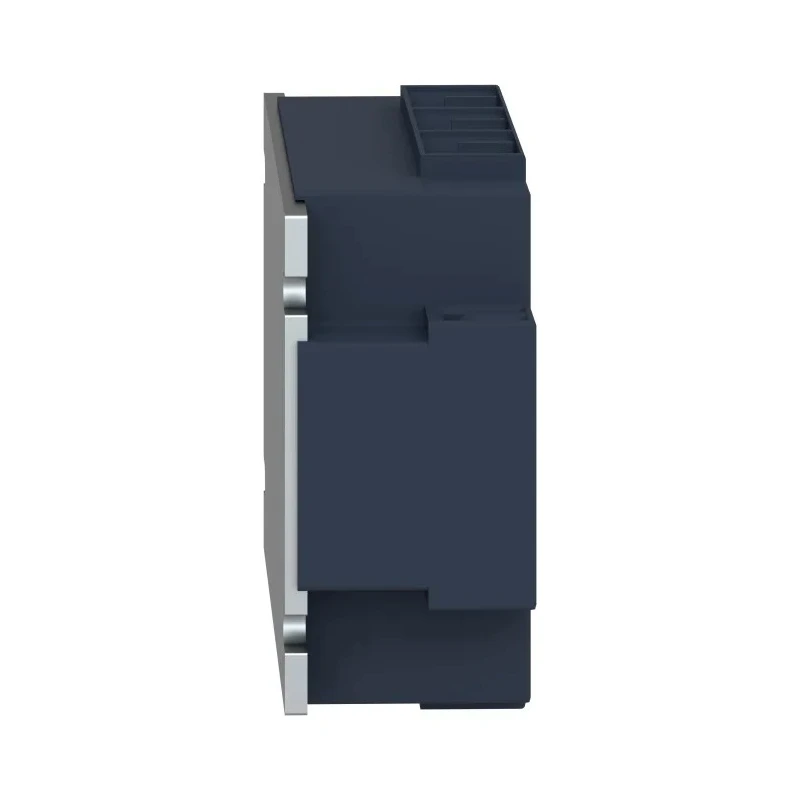

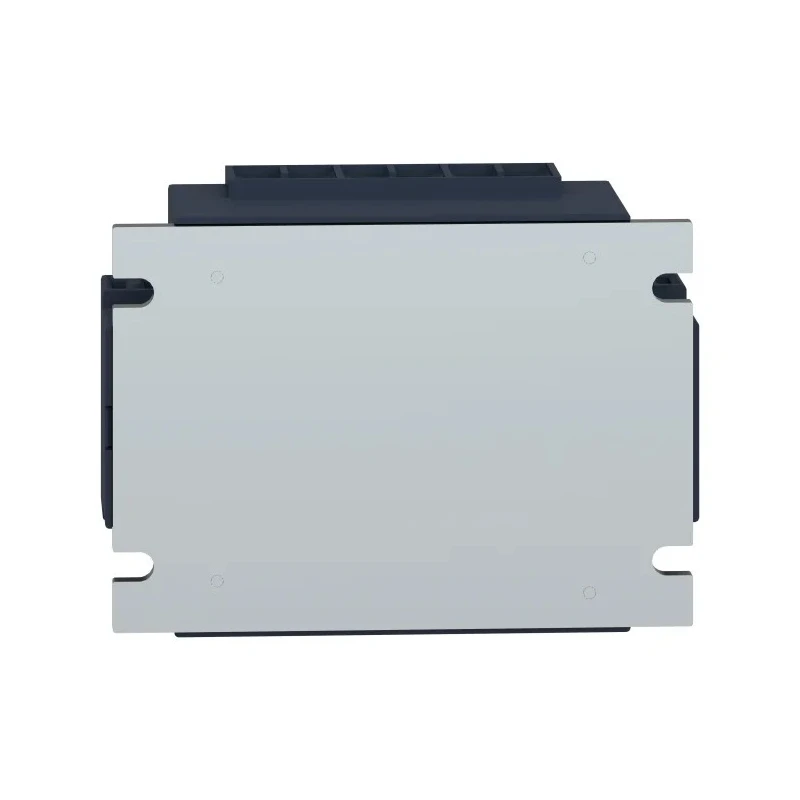

Schneider Electric Harmony Relay Series Solid State Relay Panel Mount, 25A Load, 530V AC Load, 32V DC Control SSP3A225BD

Schneider Electric SSP3A225BD Harmony Relay Series Solid State Relay is engineered for demanding panel mount automation and electrical system installations. This relay features a maximum load current of 25 amperes and supports load voltages up to 530 volts AC, enabling efficient operation in high power industrial applications.

The relay operates within a control voltage range of 4V DC to 32V DC and offers a three-pole normally open configuration using advanced SCR output technology. With compact dimensions (101.3mm length, 97.8mm width, and 35.5mm height), it fits conveniently in control panels while ensuring reliable operation with screw terminal connections and an IP20 enclosure rating.

Including zero voltage switching, this relay minimizes electrical noise and prolongs device life by switching at zero volts. Its thermal operational range from -40°C to 80°C supports performance in challenging environmental conditions. The thermal resistance optimizes heat dissipation during use.

Applications include motor control within heavy machinery, HVAC systems for efficient power management, and other systems requiring robust high voltage switching and heat dissipation capabilities.

Certified under CE, CSA, IEC 61000, REACH, RoHS, and UL standards, the SSP3A225BD relay is manufactured in Mexico with a high standard of quality assurance. Designed for panel mounting in industrial automation applications.

Supports load voltages ranging from 48V AC to 530V AC. Control voltage operates between 4V DC and 32V DC. Robust output type using SCR technology for reliable switching. Rated for 25 amp maximum load current with three-pole normally open contacts.

Thermal operational range from -40°C to 80°C supports harsh environments. Provides zero voltage switching to reduce electrical noise and component wear. Compact dimensions of 101.3mm length, 97.8mm width, and 35.5mm height.

IP20 rated for protection against solid objects with screw terminal connections. Certified to CE, CSA, IEC 61000 standards with RoHS and UL compliance.

This product is ideal for demanding industrial, manufacturing, HVAC, and electrical automation applications where precise load control and reliable switching are critical. The Schneider Electric Harmony Series ensures durable and efficient performance for advanced power management circuits and system integrations.
